Embedded motherboards and products undergo high and low temperature tests

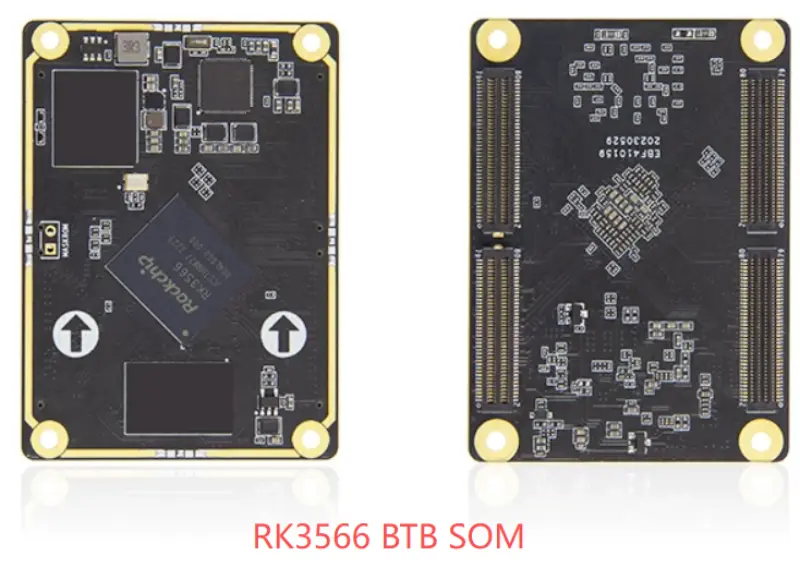

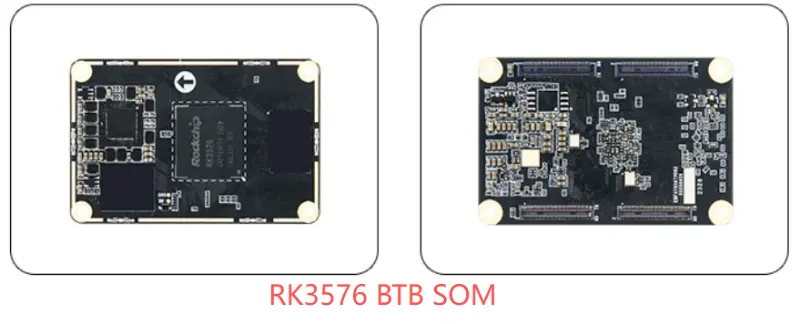

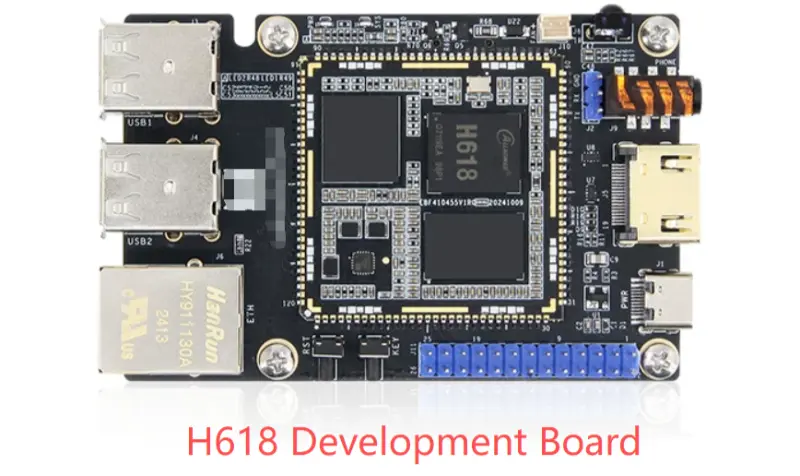

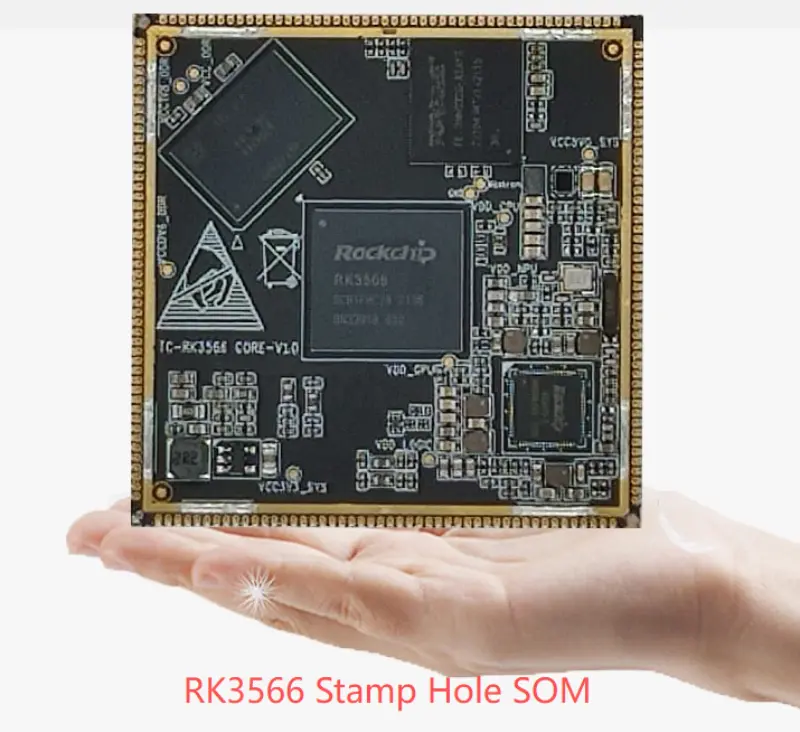

As an embedded open-source motherboard solution provider, we design and develop products based on chips from Rockchip and Allwinner, including Rockchip's RK3308, RK3506, RK3562, RK3566, RK3568, RK3576, RK3588S, RK3588, RV1126B, RV1106, and Allwinner's A33, A40I, T113, T153, T527, H313, H618, among others.

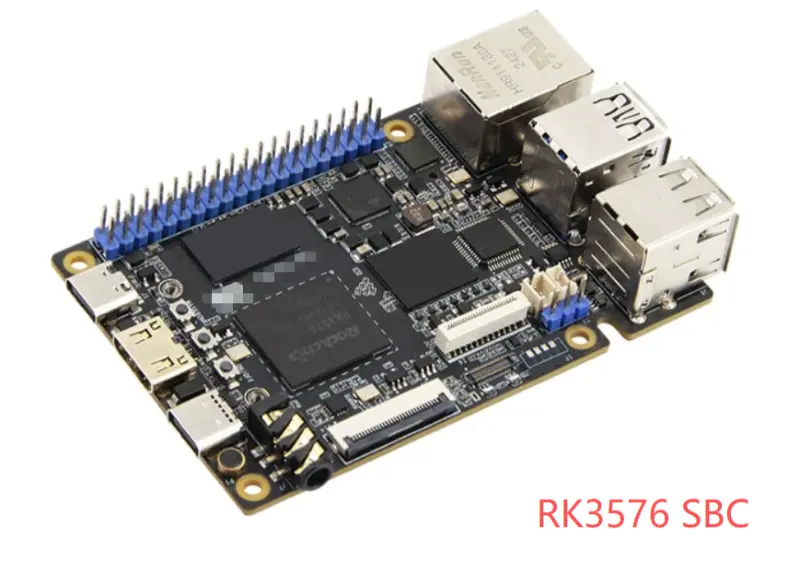

We design, manufacture, and sell a wide range of PCBA motherboards with various performance levels and configurations, which are applied across numerous product categories and industry scenarios, such as:

Card computers: for office use, programming development, home entertainment, and educational coding;

Linux servers: private cloud, software routers, NAS, personal web servers, etc.;

Home smart hubs: TV boxes, smart home control, sensor data analysis, security surveillance, etc.;

Industrial applications: digital signage, vending machines, robots, drones, etc.;

Embedded development boards: accelerating validation and development of embedded projects.

The PCBA motherboards developed and manufactured must not only deliver excellent performance but also operate reliably; to ensure this, it is essential to conduct necessary and thorough testing of both the motherboard and the product.

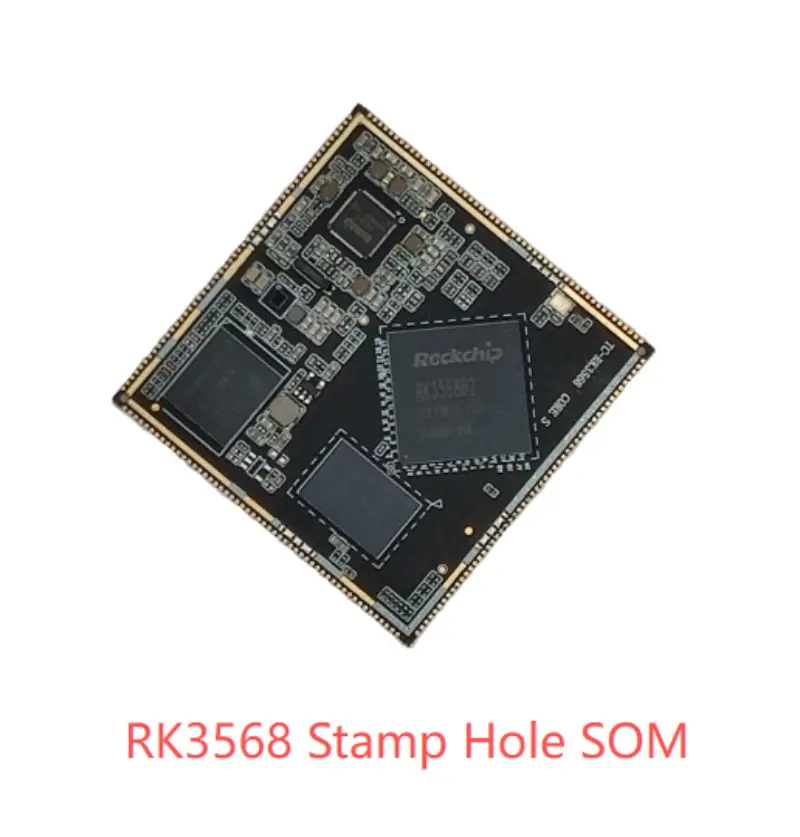

Below is an experimental record of high and low temperature testing for a product, which incorporates our company's RK3568 SOM.

Record of high and low temperature cycling experiments
Tester: Dr. H Date:2022-3-29 14:49

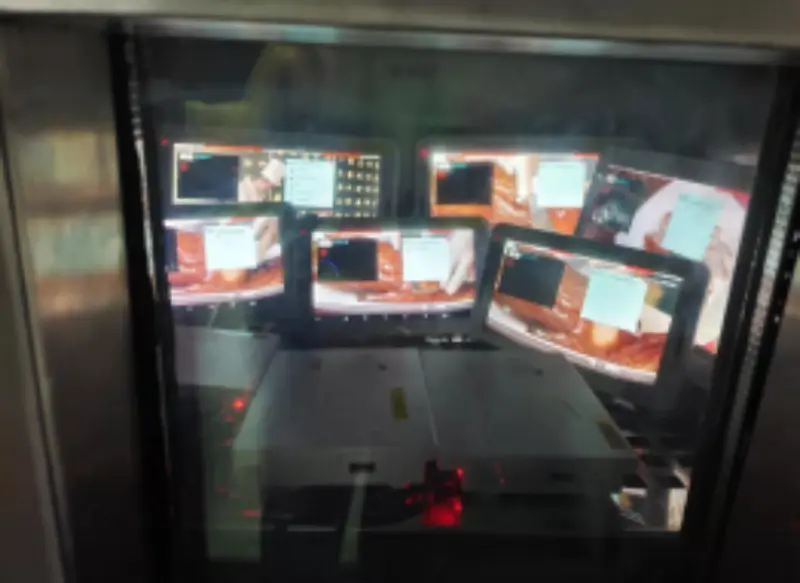

Testing equipment - high and low temperature chamber

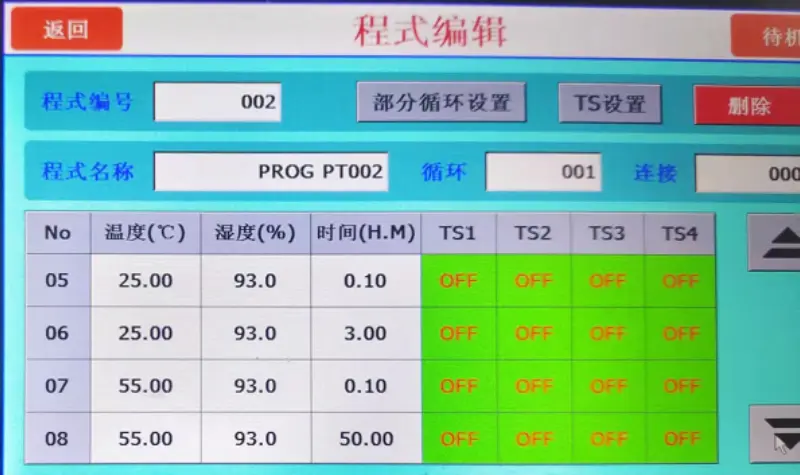

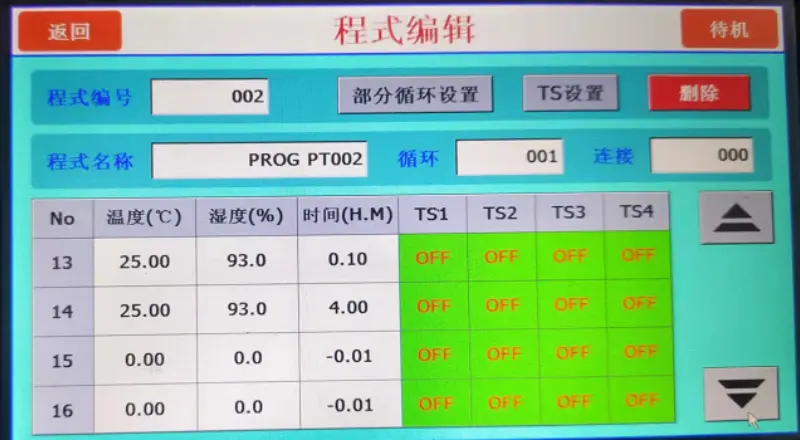

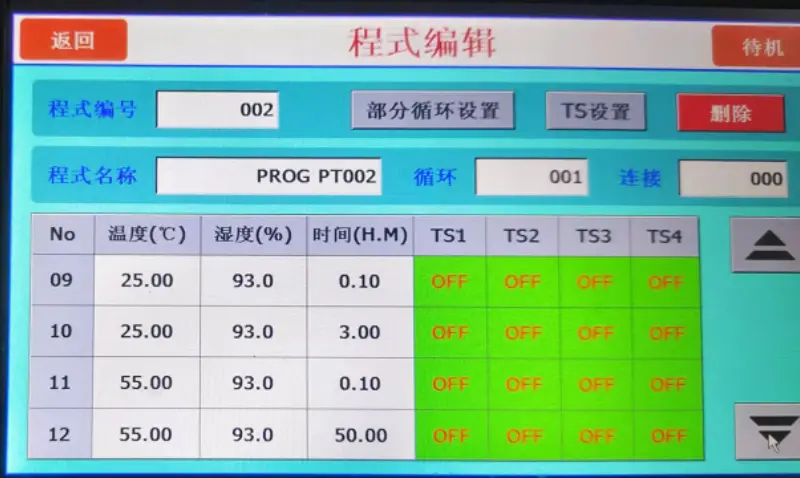

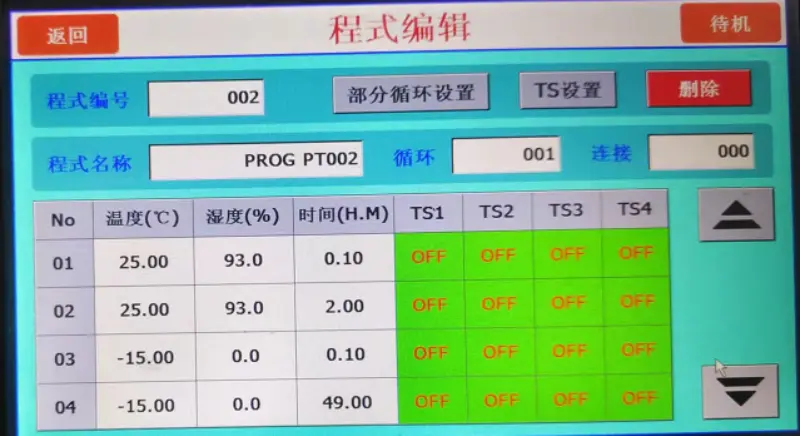

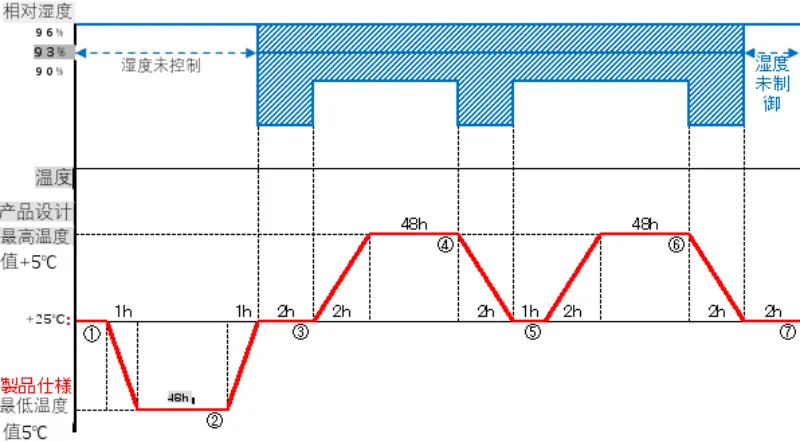

test condition：1：2：Requirements for temperature and humidity working tests 3：Actual temperature and humidity Settings (the maximum working temperature of the display screen for all materials is 50 degrees) 4：Conduct the aging test using the aging APK (version V3.8)
Date	Temperature & Humidity Chart	Machine Operating Status Chart	Notes

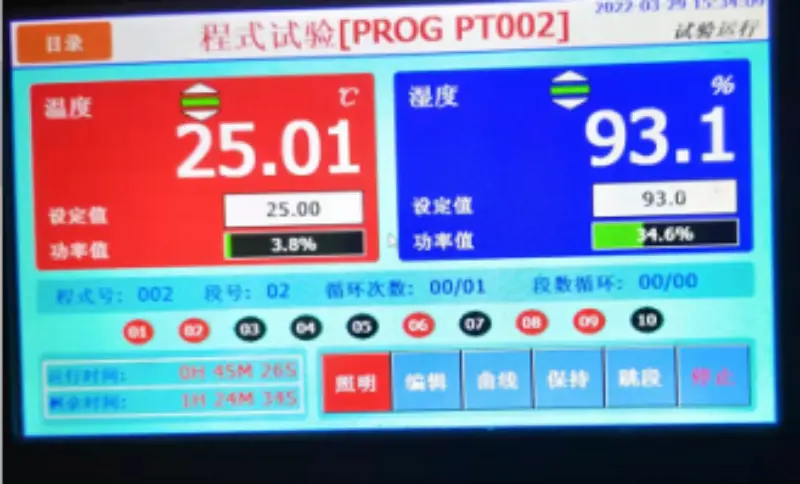

2022/3/29 15:34			Temperature: 25℃, Humidity: 93%, Continuous Operation for 2H

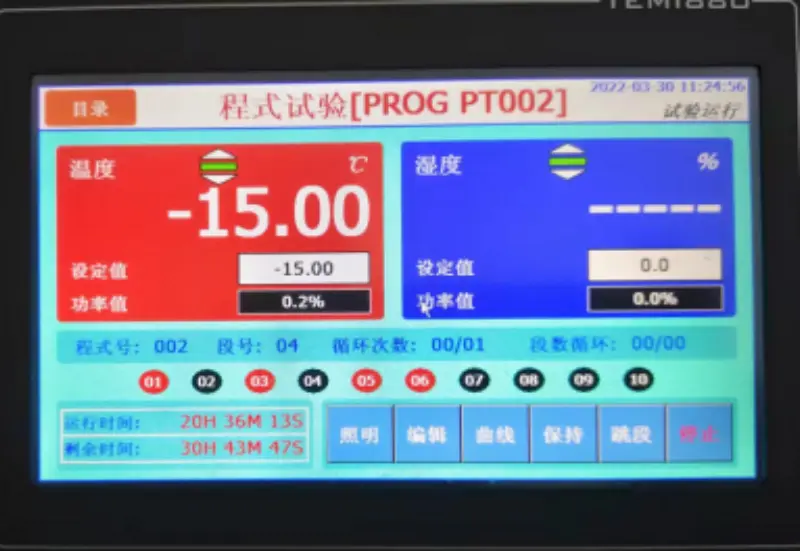

2022/3/30 11:24			Operated at -15℃ for 20H, all devices work normally

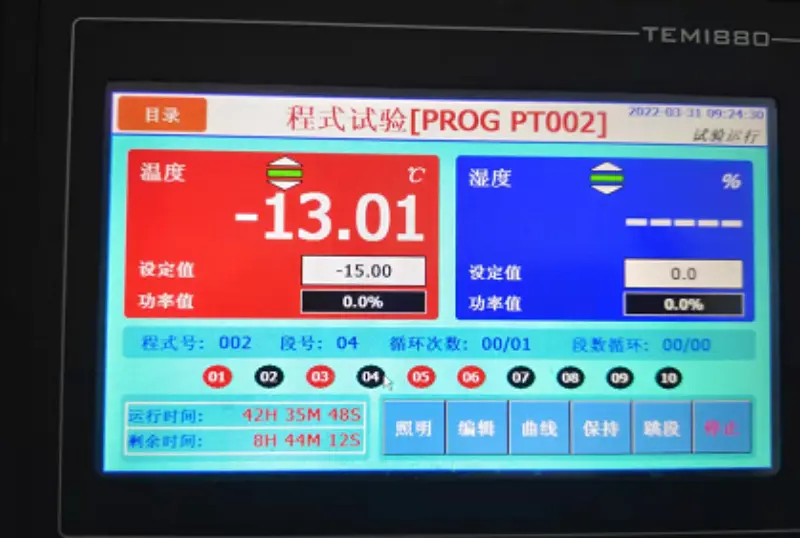

2022/3/31 9:24			Operated at -15℃ for 20H, all devices work normally

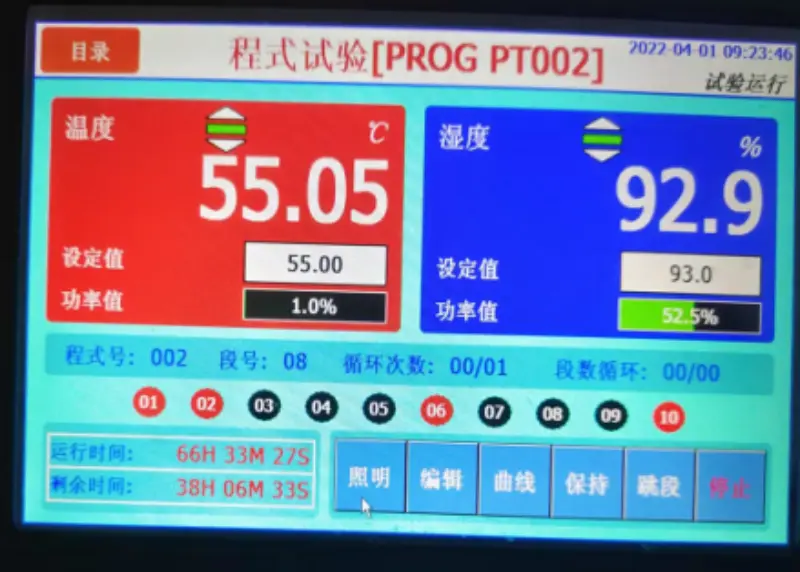

2022/4/1 9:23			Operated under high temperature of 55℃ and 93% humidity for 50H, all devices work normally

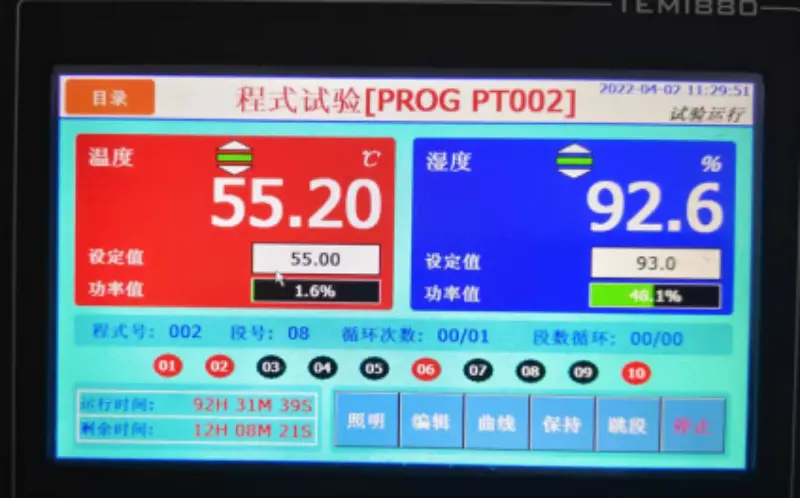

2022/4/2 11:29			Operated under high temperature of 55℃ and 93% humidity for 50H, all devices work normally

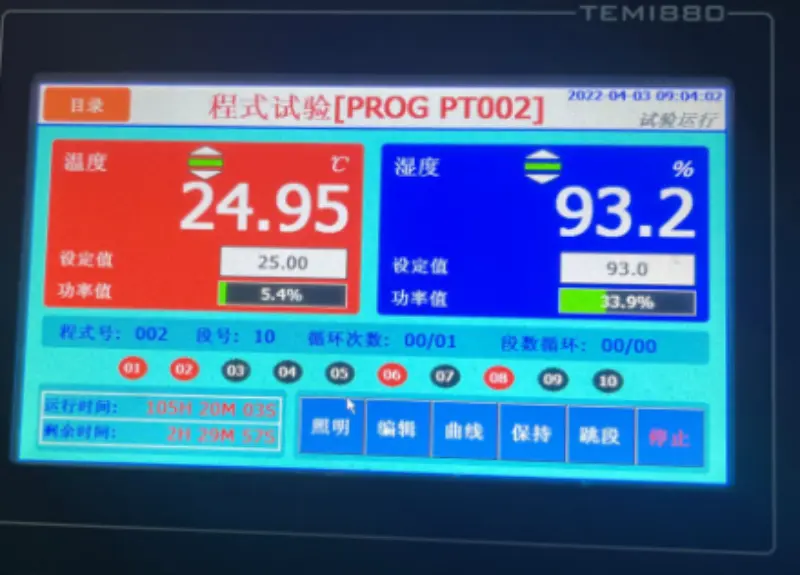

2022/4/3 9:04			Continuously operated at 25℃ and 93% humidity for 3H, all devices operate normally

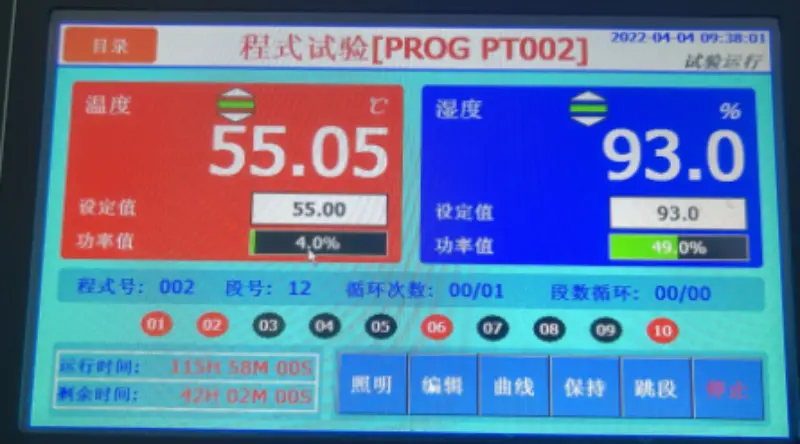

2022/4/4 9：38			Operated under high temperature of 55℃ and 93% humidity for 50H, all devices work normally

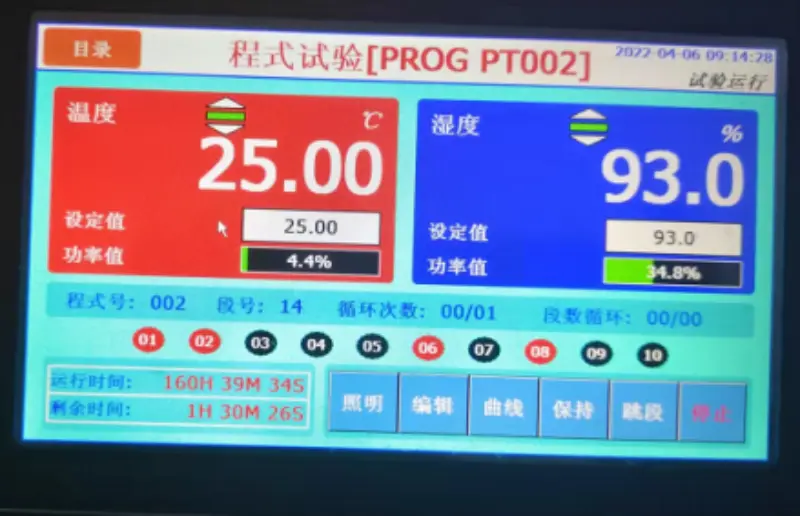

2022/4/6 9：14			Continuously operated at 25℃ and 93% humidity for 3H, all devices operate normally
2022/4/6 10：45Test Over			The device works normally
Summary: All devices operated normally during temperature and humidity tests, and all functions passed inspection after the test.
