RK3588 TV Box

Thinkcore embedded PC with Rockchip RK3588 chipset

TC-RK3588 TV box is high performance processor for ARM-based PC and Edge Computing device, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex-A76 and quad-core Cortex-A55 with separately NEON coprocessor.

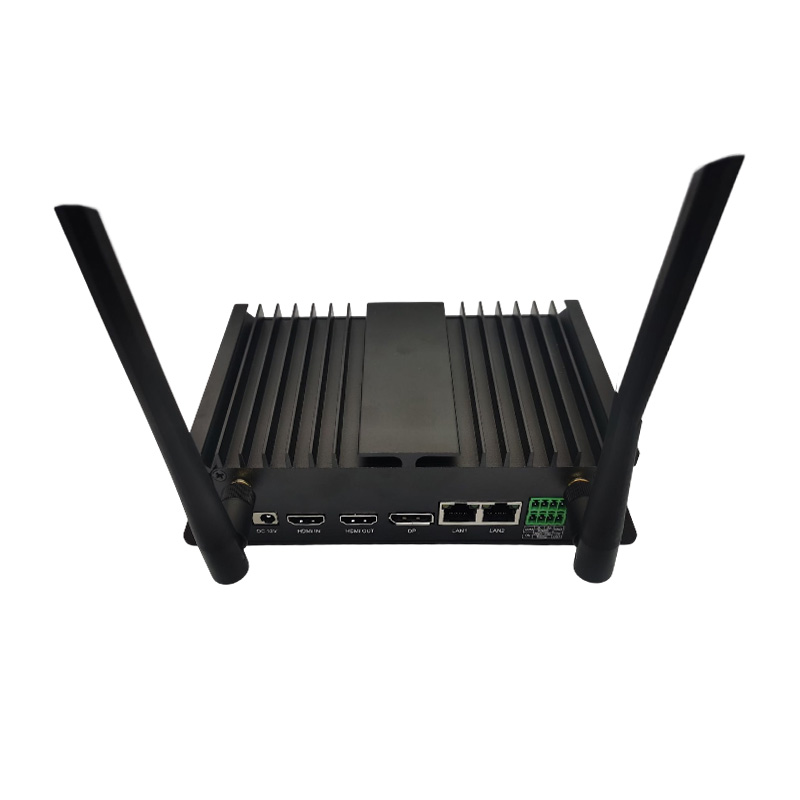

And its max DDR capacity support is up to 32GB; Also TC-RK3588 TV BOX support WiFi 6, 5G/4G and other high-speed wireless network communication; With its metal housing, TC-RK3588 TV Box has industrial grade stability and can operate stably for a long time under the working temperature range from -20°C to 65°C;

Rockchip RK3588 industrial CPU

Rockchip 3588 is an eight core 64 bit quad-core cortex-A76 and quad core cortex A55 processor, and it is 8nm made advanced technology. Quad-core ARM Cortex-A76 Core processor and quad-core ARM Cortex-A55 Core processor, both are high-performance, low-power and cached application processor.

Integrated 64KB L1 instruction cache, 64KB L1 data cache and 512KB L2 cache for each Cortex-A76

Integrated 32KB L1 instruction cache, 32KB L1 data cache and 128KB L2 cache for each Cortex-A55

Quad-core Cortex-A76 and Quad-core Cortex-A55 share 3MB L3 cache

TC-RK3588 TV BOX, its DDR max capacity is up to 32GB

RK3588 has high-performance quad channel external memory interface

(LPDDR4/LPDDR4X/LPDDR5) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

* Dynamic Memory Interface

Compatible with JEDEC standards LPDDR4/LPDDR4X/LPDDR5

Support four channels, each channel 16bits data widths

Support up to 2 ranks (chip selects) for each channel

Totally up to 16GB address space

Low power modes, such as power-down and self-refresh for SDRAM

* eMMC Interface

Fully compliant with JEDEC eMMC 5.1 and eMMC 5.0 specification

Backward compliant with eMMC 4.51 and earlier versions specification.

Support HS400, HS200, DDR50 and legacy operating modes

Support three data bus width: 1bit, 4bits or 8bits

Rockchip RK3588 integrated GPU, VPU, and NPU

 TC-RK3588 TV BOX has Embedded 3D GPU makes RK3588 completely compatible with Open GLES 1.1, 2.0, and 3.2, Ope nCL up to 2.2 and Vulkan1.2. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

The build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.

Multiple display interfaces

 TC-RK3588 TV BOX has many embedded powerful hardware engines provide optimized performance for high-end application. RK3588 supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps, also support H.264 and H.265 encoder by 8K@30fps, high-quality JPEG encoder/decoder, specialized image preprocessor and postprocessor.

 TC-RK3588 TV BOX  has HDMI 2.1 and DP video output, and also HDMI input interface, so TC-RK3588 TV BOX  can support two screens displaying different contents at the same time; TC-RK3588 TV BOX can be used as digital bulletin terminal, digital signage media player and other applications.

RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP (image signal processor). It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.

Video Decoder

* Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1

* MMU Embedded

* Multi-channel decoder in parallel for less resolution

* H.264 AVC/MVC Main10 L6.0 : 8K@30fps (7680x4320)

* VP9 Profile0/2 L6.1 : 8K@60fps (7680x4320)

* H.265 HEVC/MVC Main10 L6.1 : 8K@60fps (7680x4320)

* AVS2 Profile0/2 L10.2.6 : 8K@60fps (7680x4320)

* AV1 Main Profile 8/10bit L5.3 : 4K@60fps (3840x2160)

* MPEG-2 up to MP: 1080p@60fps (1920x1088)

* MPEG-1 up to MP: 1080p@60fps (1920x1088)

* VC-1 up to AP level 3: 1080p@60fps (1920x1088)

* VP8 version2 : 1080p@60fps (1920x1088)

Video Encoder

* Real-time H.265/H.264 video encoding

* Support up to 8K@30fps

* Multi-channel encoder in parallel for less resolution

Stable running at wide temperature range

With strictly select industrial grade processors and components,  TC-RK3588 TV BOX  can run under harsh working environment, and its working temperature range is from - 40°C to 80°C. And R18 also can work continuously and stably for 24/7 for reaching the industrial standard.

Various interfaces

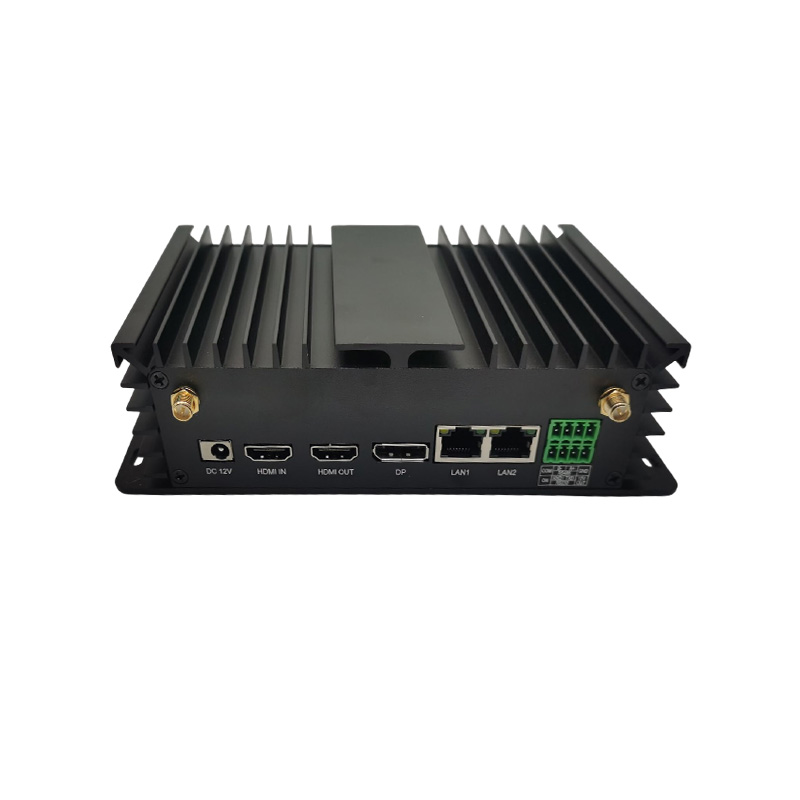

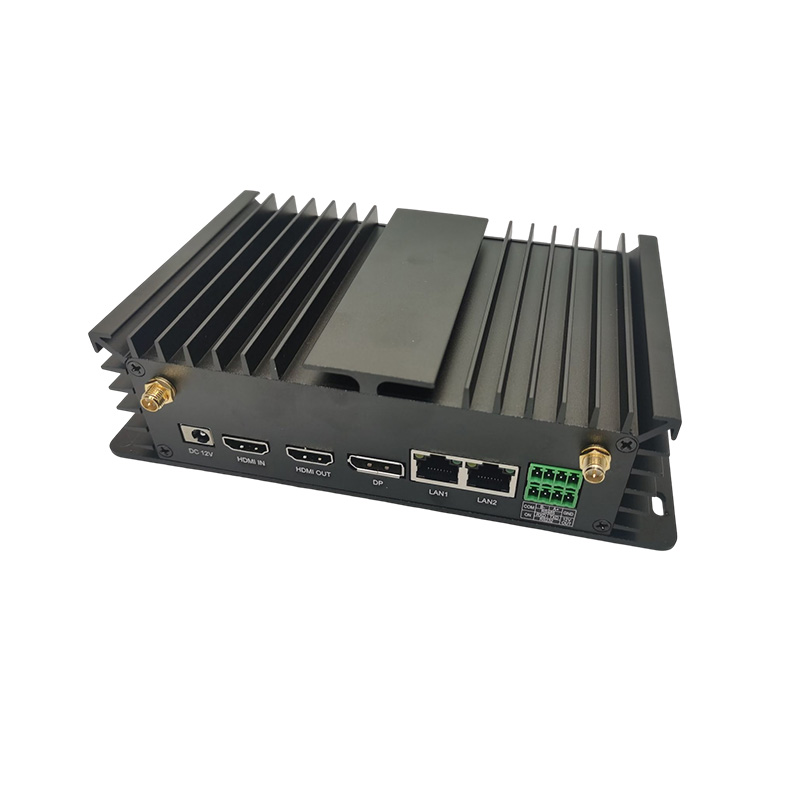

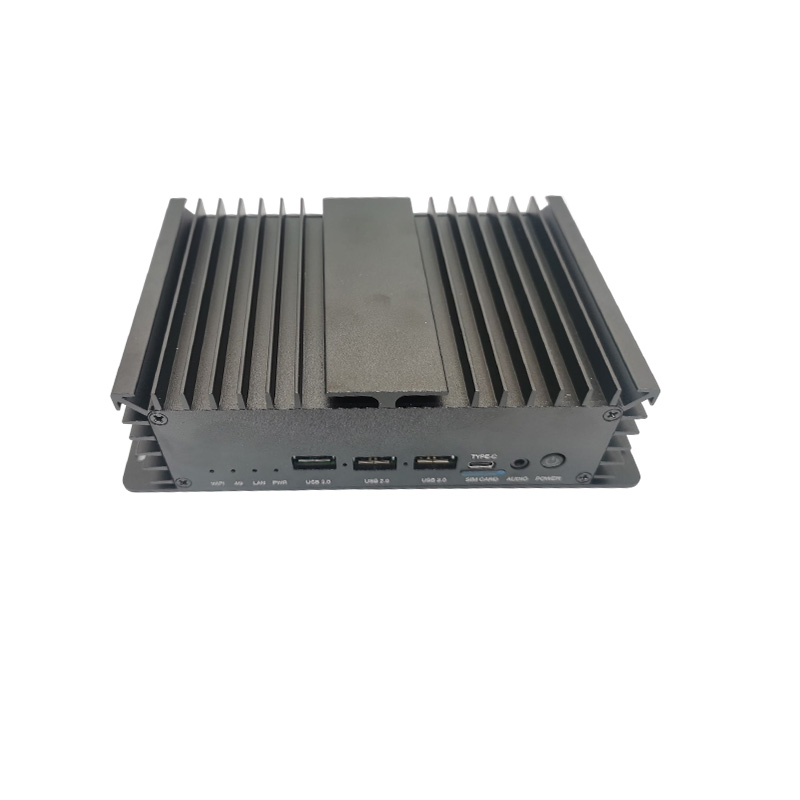

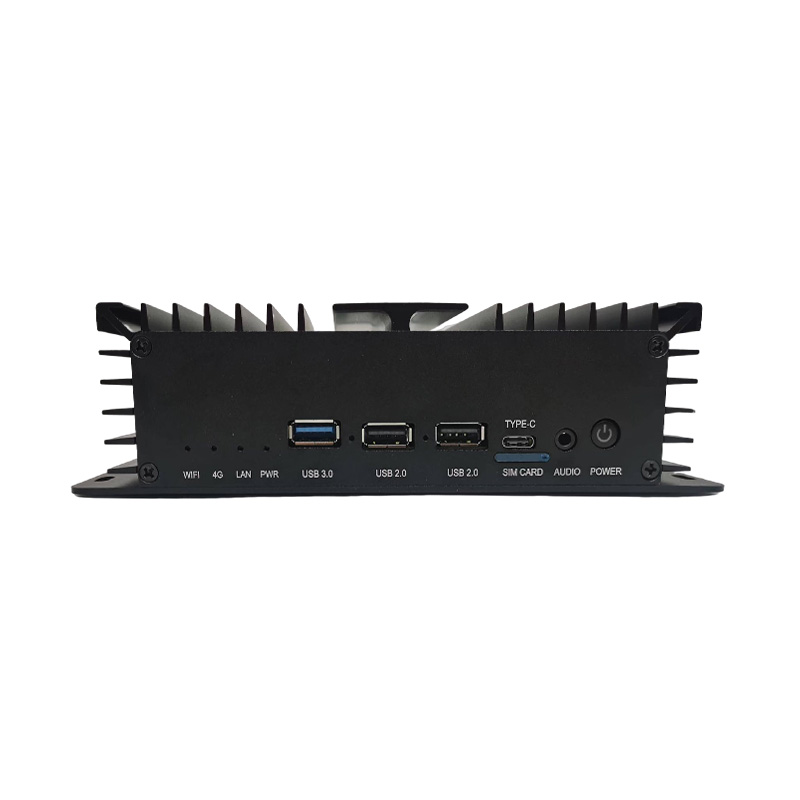

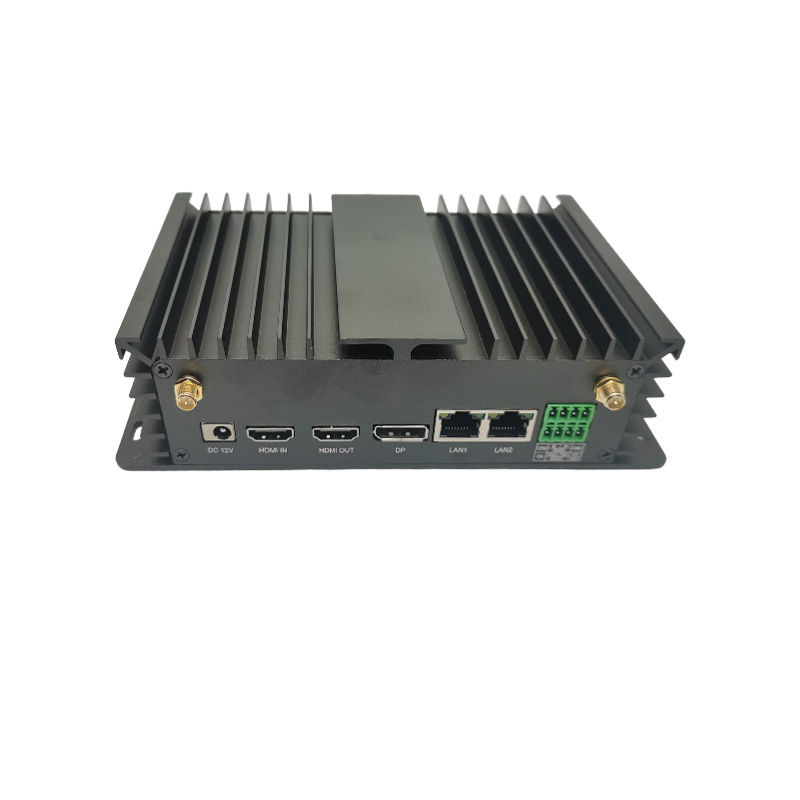

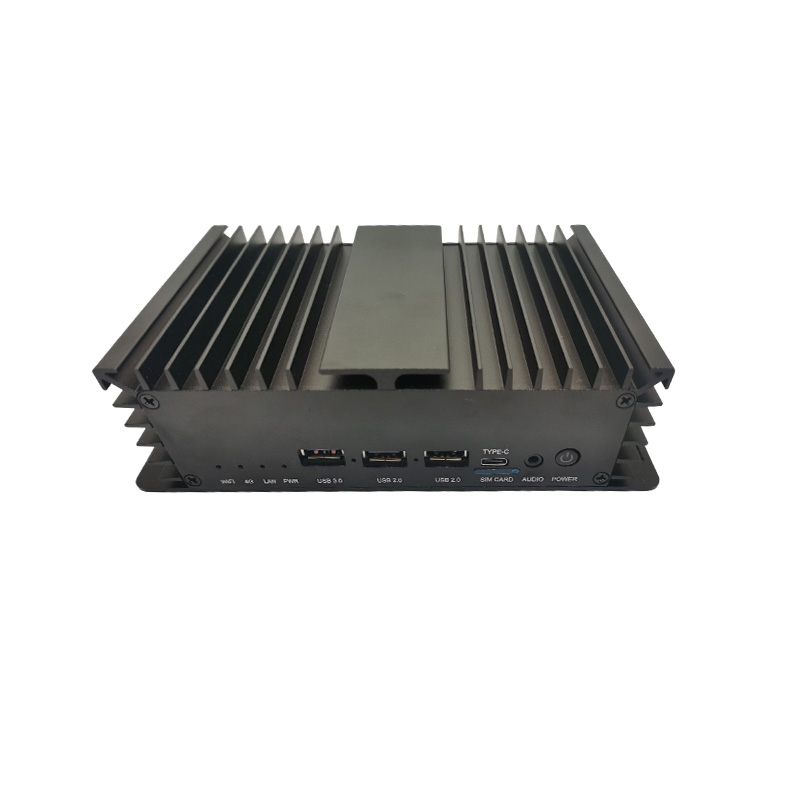

TC-RK3588 TV BOX  has HDMI2.1 and DP video output, HDMI input, dual G-LAN network, GPIO, RS232, RS485, M.2 PCIE, USB 3.0, USB2.0, Type-C, and many other interfaces.

Multiple operation systems, Android 12, Linux Ubuntu, Debian11 OS

TC-RK3588 TV BOX  has excellent real-time performance and it can provide a safe and stable system environment for product research and production.

To be used in different industries and applications

TC-RK3588 TV BOX  with Rockchip 3588 chipset, it can be widely used in IOT gateway, industrial PC, edge computing, face recognition, digital signage, intelligent device, cloud terminal, vehicle central control and other applications.
