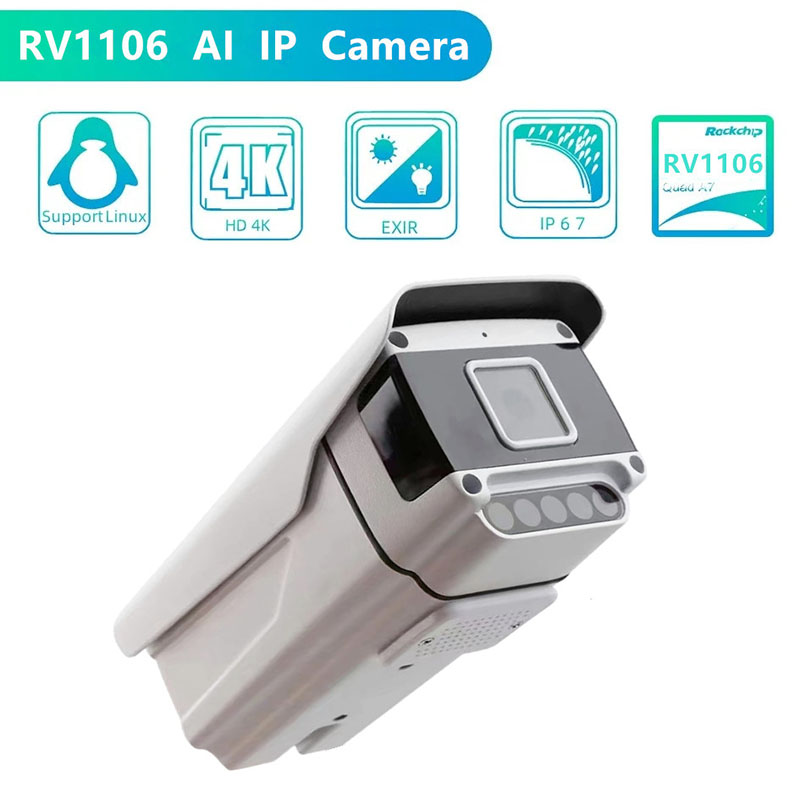

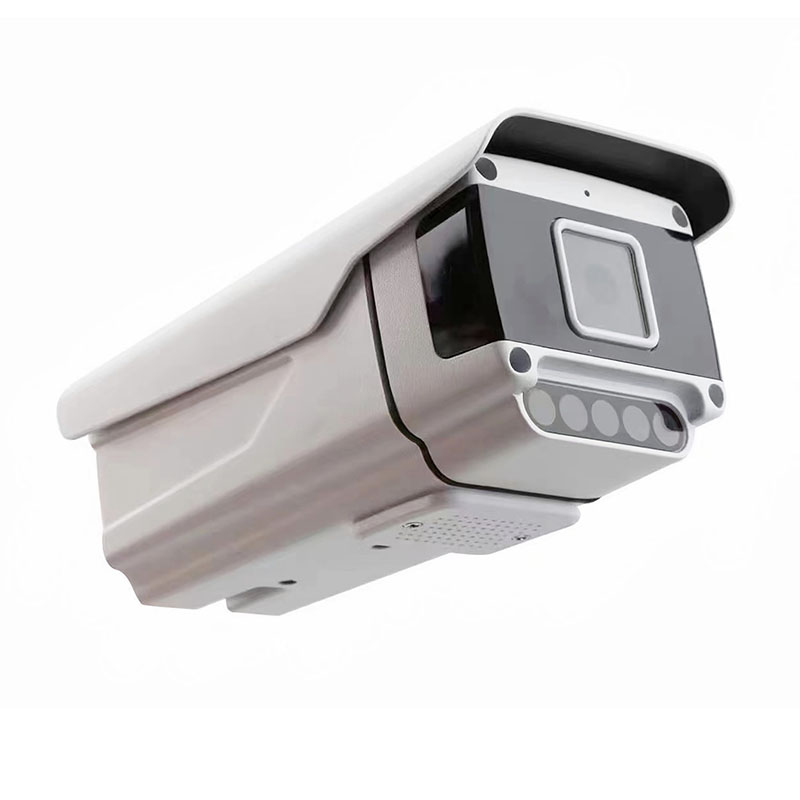

Rockchip RV1106 HD 5MP IP PTZ CCTV Camera

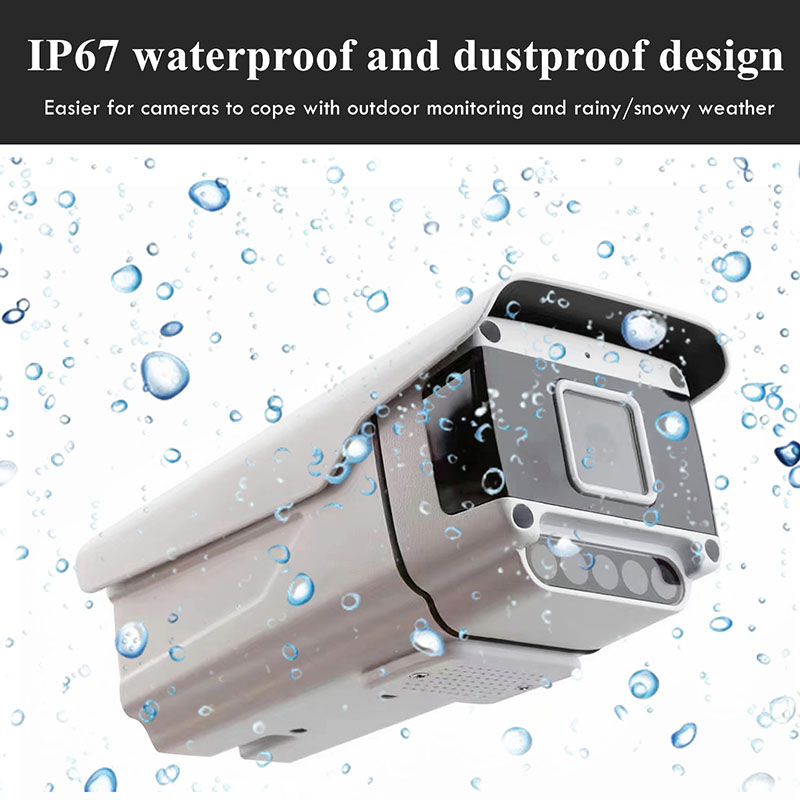

The Rockchip RV1106 HD 5MP IP PTZ CCTV Camera adopts Rockchip low-power AI visual processor RV1106500W pixel high-definition picture quality, high dynamic HDR H.265 multi-channel encoding and decoding, low latency and small proportion, IP67 waterproof and dustproof design, AI computing power of 0.5T~1T, supports multiple frameworks, facial recognition function, wide application scenarios, open data, and self customization.
Send Inquiry
Product Description
Rockchip RV1106 HD 5MP IP PTZ CCTV Camera Product features:
1. RV1106 adopts Cortex-A7 CPU and high-performance MCU, with built-in Rockchip 4th generation NPU, up to 1TOPs computing power, supporting mixed quantization of int4, in8, and int16, with int8 computing power of 0.5TOPs and int4 computing power of 1.0TOPs.
2. RV1106 adopts Rockchip third-generation ISP3.2, which supports 5 million and 4 million pixels respectively. It supports various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction. In various complex lighting scenes, it can achieve clear and visible black light full-color and backlight strong light shooting effects. RV1106 supports 2-3 MIPI/DVP inputs.
3. RV1106 has super strong encoding performance, supports intelligent encoding, adaptively saves bitstream according to the scene, and saves over 50% bit rate compared to conventional CBR mode, making the captured images high-definition, small in size, and double the storage space. It also supports rich encoding functions, such as frame skipping reference, custom quantization matrix, subjective factors, etc., to further improve encoding quality.
4. RV1106 adopts an intelligent audio solution that supports echo cancellation, speech noise reduction, crying detection, abnormal sound detection, etc. It also supports high-definition speech, enhances sound acquisition, and long-distance pickup.
|

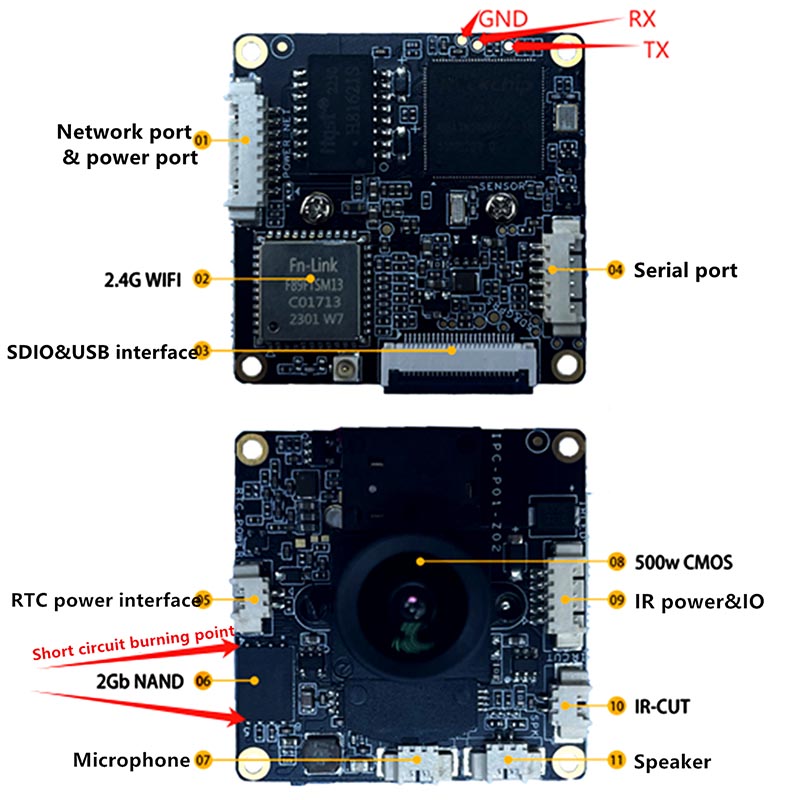

Rockchip RV1106 HD 5MP IP PTZ CCTV Camera Parameters |
|
|
CPU |
Rockchip RV1106 Quad-core A7，14nm，1.5GHz |
|
RAM |
Built-in 1Gb to 2Gb DDR3L |
|
ROM |
2Gb NAND Flash，support NOR Flash |
|
NPU |
0.5TOPS, supports RKNN AI framework, and can implement common AI framework model transformation (caffe, darknet, mxnet, onnx, pytorch, tensorflow, tflite) and algorithm support |
|
Sensor |
5 million SC530AI monocular Sensor |
|
CSI |
4 Lane MIPI CSI supports 5 million @25fps and supports access to a maximum of 3 sensors |
|
DSI |
NA |
|
WIFI |
SDIO WIFI，IEEE 802.11b/g/n |
|
4G |
USB 4G module, support CAT4, CAT1 and other mainstream brand modules |
|
Ethernet port |
Adaptive 10/100Mbps 100 megabits, supporting MDIX functions |
|
USB |
OTG2.0 X1 |
|
MIC |
Simulate omnidirectional MIC |
|
SPK |
Independent external Audio Coder, pickup and Speak, with 3W power amplifier, Line out is not supported |
|
Photodetector |
Optional (ISP induction night function) |
|
Reflector |
Expandable LED fill light board supports white light /IR infrared fill light |
|
ISP |
The third generation of the ISP, 5 (2 f HDR / 3 NDR/WDR/BLC/DPCC/PDAF/LSC |
|
Encoder |
H.264/265 5M30FPS，5M@60FPS JPEG snapshot，Six bit rate control modes (CBR, VBR, FIXQP, AVBR, QPMAP, and CVBR) |
|
System support |
Linux (Support fast startup, first frame valid frame out time < 150ms) |
|
Operating temperature |
-20℃~70℃ |
|
Support platform |
MCU、ARM、Windows、Linux、Android |
