TC-RK3568 SOM

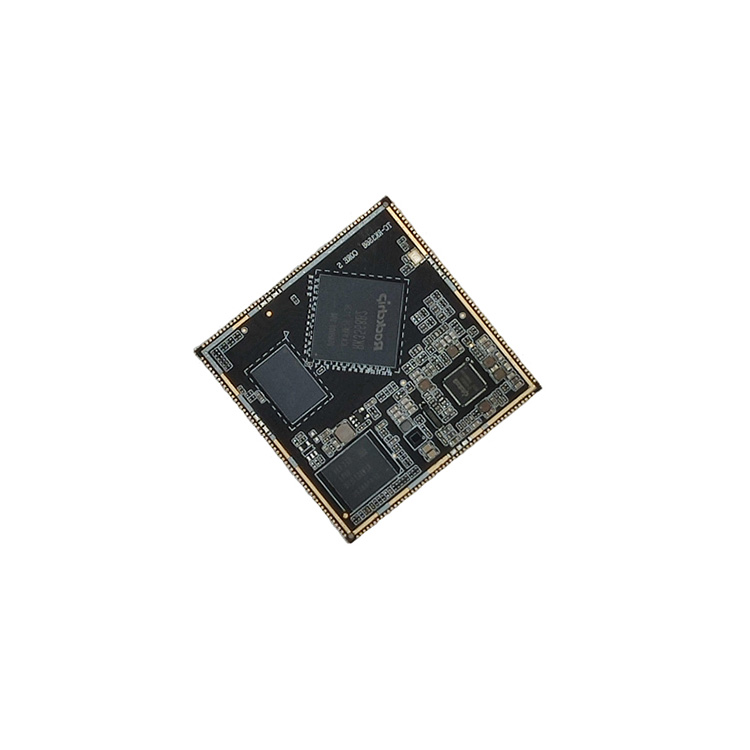

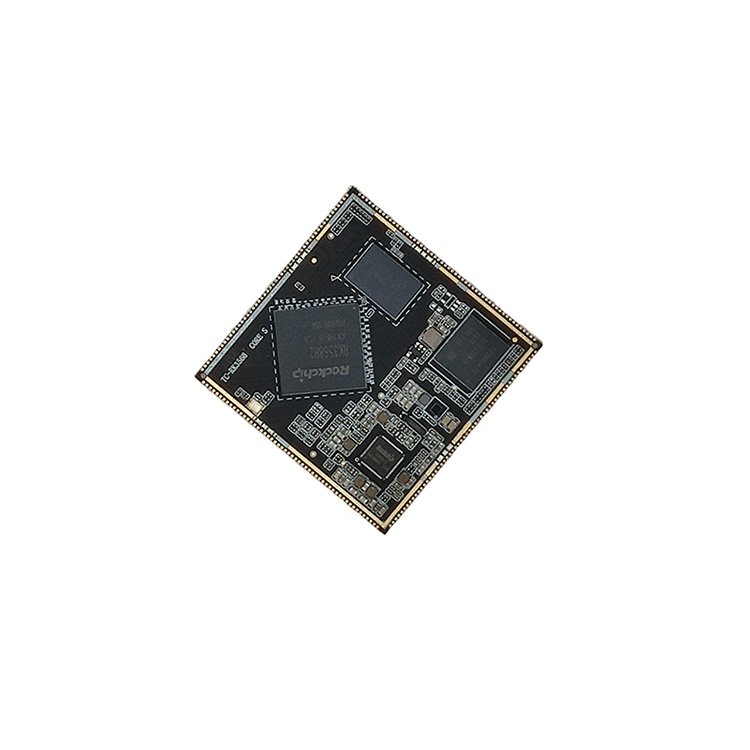

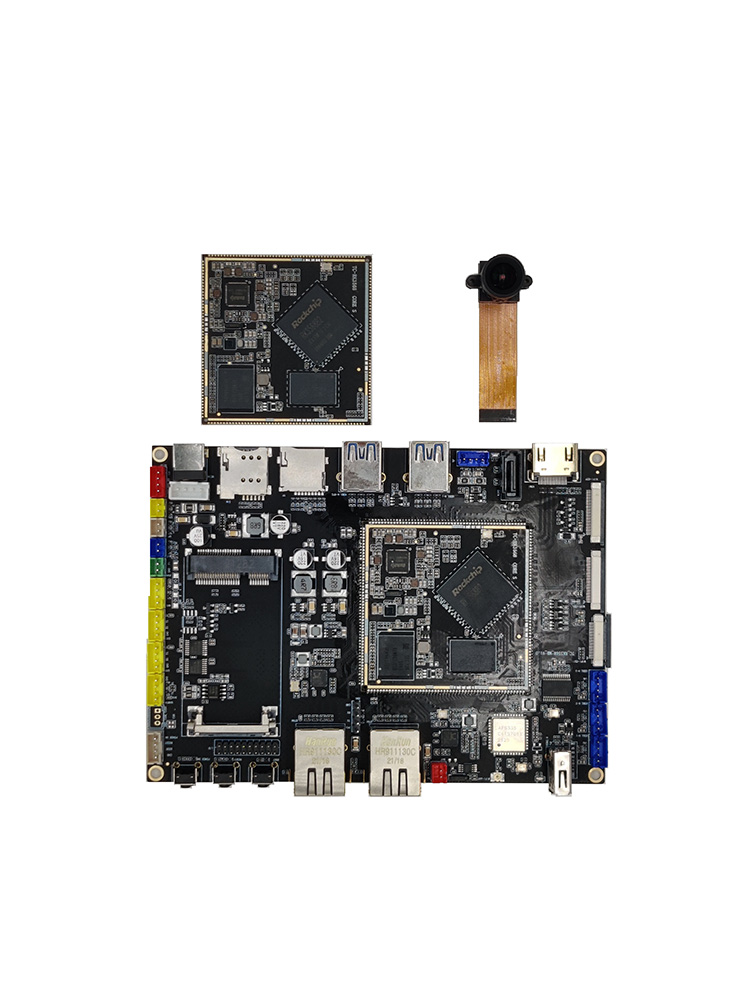

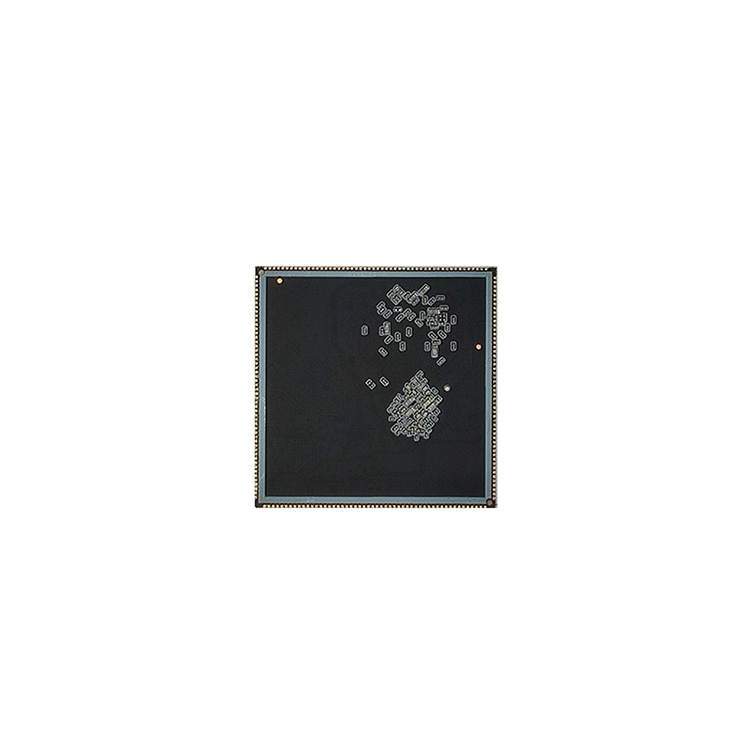

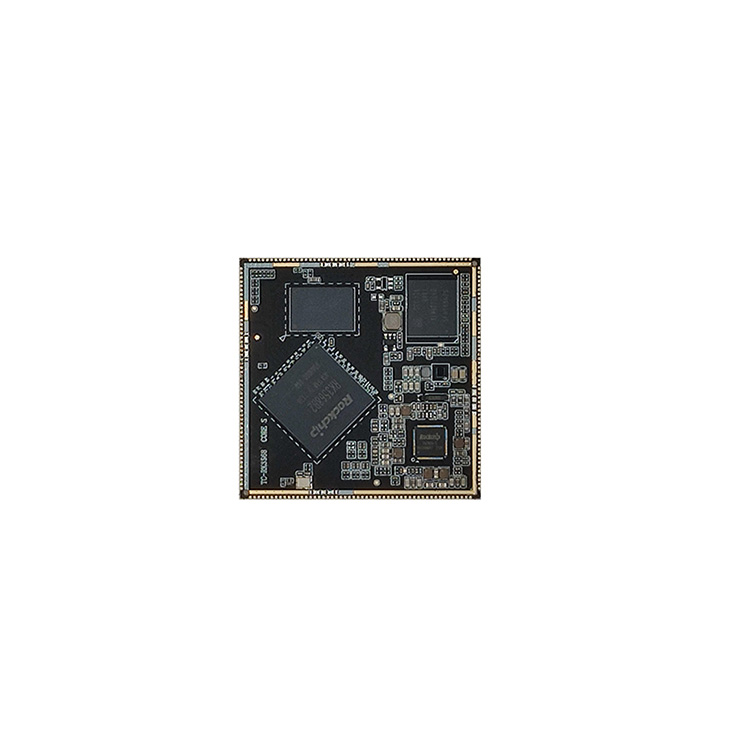

TC-RK3568 SOM is a high-performance board designed by Shenzhen Thinkcore based on the RK3568 microprocessor of Rockchip.

Send Inquiry

Product Description

TC-RK3568 SOM


SOM3568 is a high-performance board designed by Shenzhen Thinkcore based on the RK3568 microprocessor of Rockchip. The CPU adopts a quad core 64 bit Cortex-A55, 22nm advanced technology, and the main frequency is up to 2.0GHz; Integrated ARM G52 2EE GPU, fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, etc.; Built in the third generation NPU RKNN developed by Rockchip Micro, the computing power is 0.8Tops, and it supports deep learning frameworks such as caffe, TensorFlow, mxnet, etc. The model can be converted with one click.

TC-RK3568 SOM has excellent video processing performance and supports 4K 60fps H.265/H 264/VP9 video decoding, supporting 1080P 60fps H.265/H 264 video encoding, supporting 8M ISP HDR.

The SOM3568 can be configured with a maximum memory capacity of 8GB, up to 32Bit width, and a frequency of up to 1600MHz; Support full link ECC, make data more secure and reliable, and meet the requirements of large memory product application scenarios.

TC-RK3568 SOM has rich interface resources, supports two-way GMAC, expandable 10/100/1000Mbps network interface, supports two-way PCIE GEN3.0 interface, and has UART/SPI/I2C/SDIO and other common interfaces.

The SO-DIMM interface standard is adopted to make the product more stable, reliable and convenient for engineers to design products based on modules, so that the product can be quickly launched.

SOM3568 supports Android 11, Ubuntu, Debian10, Buildroot+QT and other systems with excellent real-time performance. It is widely used in IoT gateway, edge computing, cloud terminal, intelligent NVR, industrial control, face gate, vehicle mounted central control and other scenarios. It is equipped with complete development materials and mature application solutions, which can reduce the threshold of customer research and development and shorten the product research and development cycle.
