The Complete Official Rockchip-Certified Camera Module List | Mature Solutions + Technical Support — Essential for Embedded Vision Development

When working on embedded vision projects, IP cameras, or industrial tablets, few things are as frustrating as camera module compatibility debugging. You pick a module, only to find driver adaptation is a nightmare, stability is poor, and your project timeline grinds to a halt.

To help you avoid these pitfalls, we've compiled a complete list of Rockchip-officially certified camera modules— rigorously validated and already deployed in mass production. The list covers mainstream Rockchip platforms including RV11xx, RK35xx, and RK33xx, with sensor models, resolutions, interfaces, and typical application scenarios all clearly laid out.

Best of all, these modules come with mature software and hardware adaptation solutions. If you run into issues during debugging, you can get direct assistance through Rockchip's official technical support channels!

I. List Field Descriptions | Understanding Each Parameter First

Let's break down the key fields in the list so you can quickly zero in on your requirements:

II. Sorted by RK Chip Platform | Official Certified Module Details

We've organized the list by Rockchip platform to help you quickly find compatible modules for your specific SoC.

1. RV11xx Series (RV1106 / RV1109 / RV1126 / RV1126B)

The RV11xx series is a low-power solution targeting IP cameras, gate access control, and security devices. Official certified modules cover mainstream sensors from 1080P all the way to 4K.

(1) RV1109 / RV1126 Common Modules (ISP2.0 Solution)

Fixed-focus / Auto-focus Modules: SC401AI, SC210IOT, OV9281, OV12D2Q, OV02K10, OV02B10, OS08A20, OS05A20, OS02G10, JX Series (JX-K04 / JX-H65 / JX-F37 / JX-H62), SC2310S, SC200AI, IMX334, IMX327LQR, GC2093, IMX335LQN-C, GC2053, IMX378-AAQ5-C, GC4C33, OV2718-H77A-2B, OS04A10, IMX30/LQR-C, IMX347LQR-C, IMX415-AAQR-C

- Typical Resolution: 1600×1200 ~ 4056×3040

- Interface: Primarily MIPI DPHY 1/2/4-Lane, with some LVDS support

- Applications: IP cameras, gate access, robot vacuums, USB cameras, conference systems

(2) RV1106 Modules (ISP3.2 Solution)

Sensor Models: SC200AI, SC3338, SC3336, SC530AI, SC500AI, SC4336, OS04A10

- Typical Resolution: 1920×1080 ~ 2880×1620

- Interface: MIPI DPHY 2/4-Lane

- Applications: IP cameras, smart doorbells, security devices

> The RV1106 platform supports 12M video encoding, 4K video decoding, and simultaneous input from up to three cameras.

(3) RV1126B Modules

Module Models: CRK8F5116, CRK4F4208-V1

Sensor Models: SC850SL, SC450AI

- Resolution: 3840×2160, 2688×1520

- Interface: MIPI DPHY 4-Lane

- Applications: IP cameras, gate access

(4) RV1109 Modules

Module Model: TC-A12V-V2

Sensor Model: SC430AI

- Resolution: 2696×1528

- Interface: MIPI 4-Lane

- Applications: Security intercom / door access

2. RK35xx Series (RK3568 / RK3576 / RK3588 / RK3588M / RK3588S)

The RK35xx series is a high-performance solution for mid-to-high-end tablets, industrial equipment, and IP cameras. Official certified modules cover consumer tablets, industrial vision, IP cameras, and more.

(1) RK3576 Modules

Sensor Models: IMX464, OV16885, OV16880, S5K4H5, GC05A2, IMX415, SC4336

- Resolution: 2592×1944 ~ 4672×3504

- Interface: MIPI DPHY 2/4-Lane

- Applications: Consumer tablets, IP cameras, gate access

> RK3576 Platform Note:The RK3576 has one DCPHY and two DPHYs. DPHY supports both full mode (single camera) and split mode (dual camera) .

(2) RK3588 / RK3588M / RK3588S Modules

Mainstream Sensor Models: AR2020, AR0822, OV13850, OV5695, SC230AI, IMX577, IMX586, GC8034, IMX415, GC2385, SC230AI, S5K3L6, IMX766, IMX586, OS08A20, OV50C40, OV13855, OS04A10

- Resolution: 1600×1200 ~ 4224×3136

- Interface: MIPI DPHY 1/2/4-Lane

- Applications: Industrial tablets, outdoor robotic lawnmowers, drones, conference systems, consumer tablets, open-source SBCs

Specialized Application Modules:

- OV13850: Industrial on-site partial discharge detection, gas leak identification

- SC230AI: Outdoor mobile robotic lawnmowers — supports complex lighting environments

- IMX577: 360° panoramic cameras

> RK3588 Platform Note: The RK3588/RK3588S platform has two physical MIPI DPHYs(dphy0_hw / dphy1_hw). They support full mode and split mode — splitting into three logical DPHYs: csi2_dphy0, csi2_dphy1, csi2_dphy2 . In split mode, csi2_dphy1 and csi2_dphy2 each support a maximum of 2 data lanes .

(3) RK3568 Modules

Sensor Models: IMX464, HI846, HI556, GC02M2, GC5035, GC2053, GC2093, OV5695

- Resolution: 1600×1200 ~ 2688×1520

- Interface: MIPI DPHY 1/2/4-Lane

- Applications: Tablets, consumer handheld devices, IP cameras / gate access, dual-camera modules

3. RK33xx / RK32xx / RK1808 Series

(1) RK3326 Modules (ISP1.x Solution)

Sensor Models: SC132GS, GC02M2, GC2385, OV7251, OV2680, OV5648, OV5695, GC8034, GC5035, GC5024, OV8858

- Resolution: 640×480 ~ 2592×1944

- Interface: Primarily MIPI 1-Lane

-Applications: Tablets, robot vacuums, student dictionary pens, smart speakers, rugged vehicle-mount tablets

(2) RK3399 / RK3399Pro Modules

Sensor Models: GC5024, GC2375, OV2735, OV5670, IMX317, IMX307, IMX214, GC8034, GC5035, HI846, OV13850, OV5648

- Resolution: 1600×1200 ~ 4224×3136

- Interface: MIPI / Dual-camera solutions

- Applications: Smart speakers, video calls, IoT, facial recognition, desktop audio-video conferencing

(3) RK3288 Modules

Sensor Models: IMX219, GC2385, OV2718, GC2375, GC5025

- Resolution: 1600×1200 ~ 3280×2464

- Interface: MIPI 1/2-Lane

- Applications: Desktop audio-video conferencing, tablet front/rear cameras

(4) RK1808 Modules

Sensor Model: IMX327

- Resolution: 1920×1080

- Interface: MIPI DPHY 2-Lane

- Applications: IP cameras, CVR

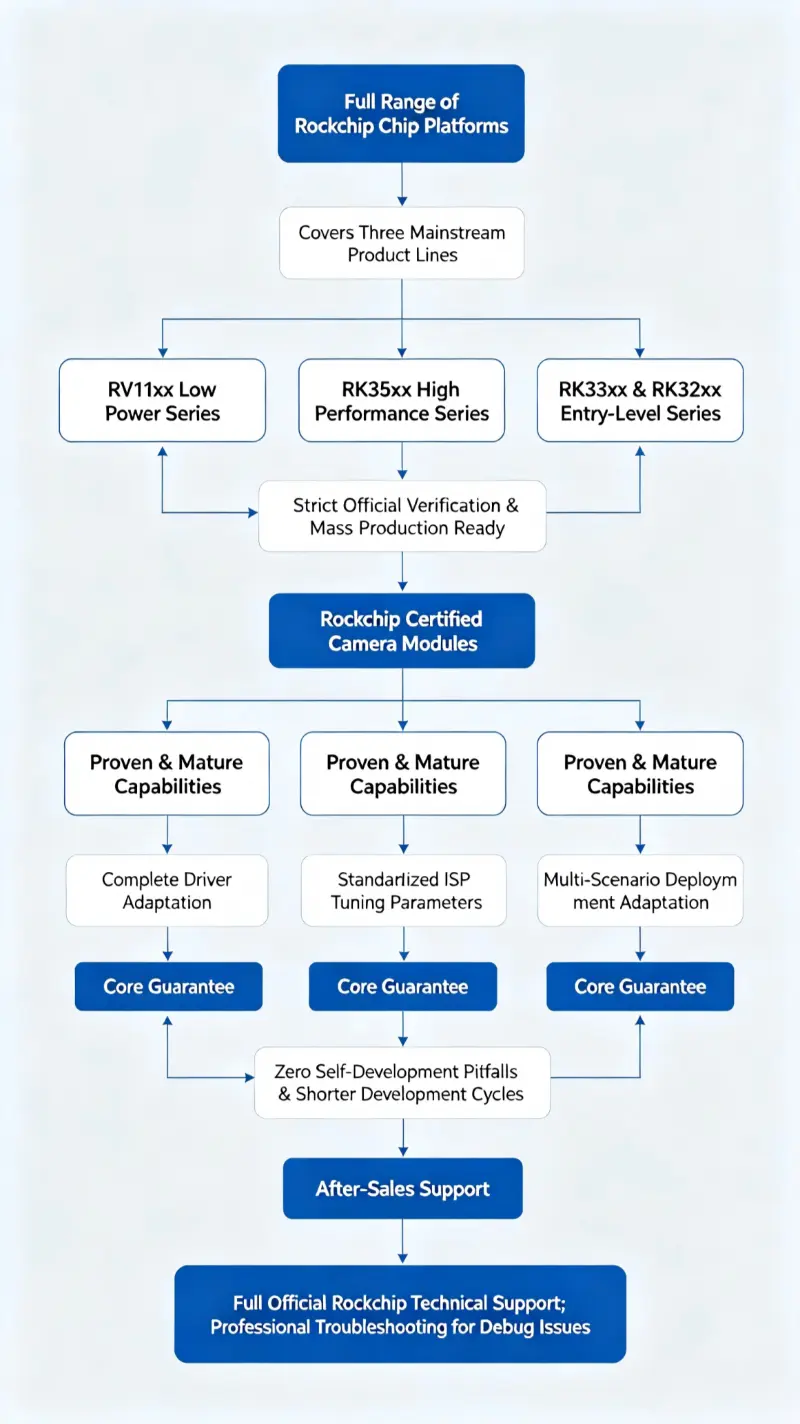

III. Official Certified Modules | Why Are They the Recommended Choice?

Many developers source modules independently for their projects, only to run into headaches like driver adaptation difficulties, complex ISP tuning, and persistent compatibility issues. Rockchip-official certified modules offer these core advantages:

✅ Mature Software and Hardware Adaptation Solutions: All modules have passed Rockchip's rigorous compatibility and stability testing. Drivers and ISP parameters come with proven reference configurations, dramatically reducing development and debugging effort.

✅ Coverage Across Multiple Application Scenarios: From IP cameras, gate access, and industrial tablets to drones, robot vacuums, and smart speakers—the modules in this list cover the mainstream embedded vision use cases, directly matching project requirements.

✅ Official Technical Support Guarantee: This is the most important point—all Camera modules listed here are Rockchip-officially validated solutions already deployed in mass-production projects, with mature software and hardware adaptation expertise. During debugging and development with these modules, any compatibility, driver debugging, or ISP tuning issues can be addressed through Rockchip's official technical support channels for professional assistance and solutions—helping you avoid costly detours.

IV. Final Thoughts

In embedded vision projects, module selection directly impacts your development cycle and product stability. Prioritizing officially certified, mature solutions doesn't just dramatically reduce debugging costs—it gives you the backing of official technical support, keeping your project on track.
