NXP I.MX RT1052 Core Board

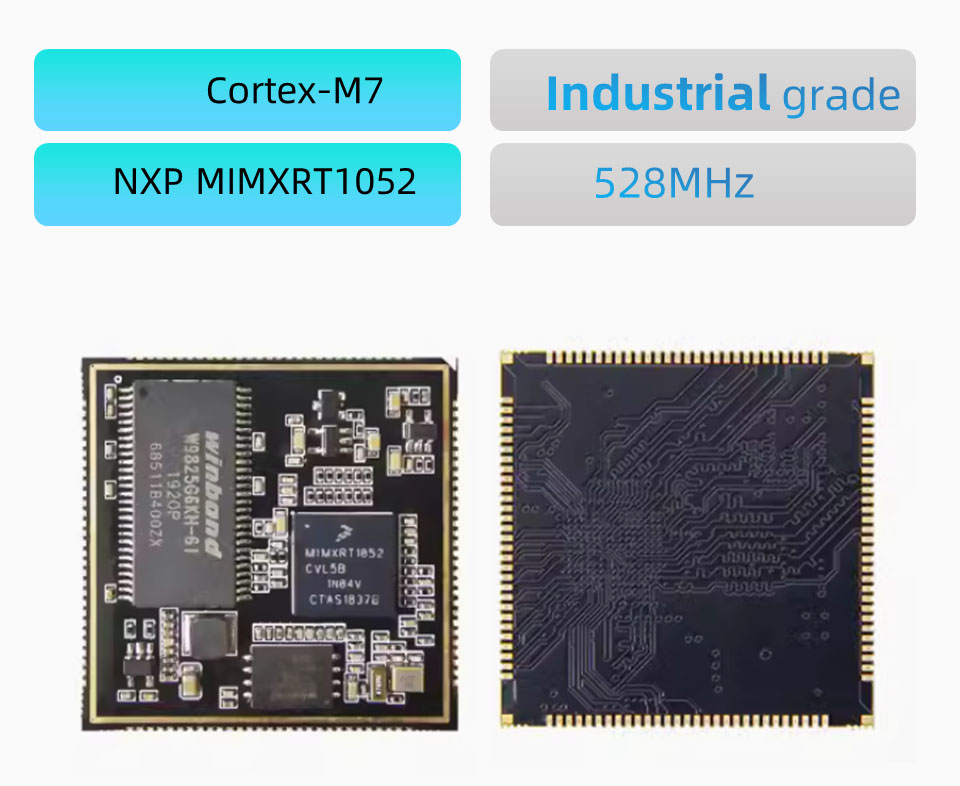

● This RT1052 S2 core board is designed based on the NXP MIMXRT1052CVL5B processor.

● The components of the whole board are made of industrial-grade materials.

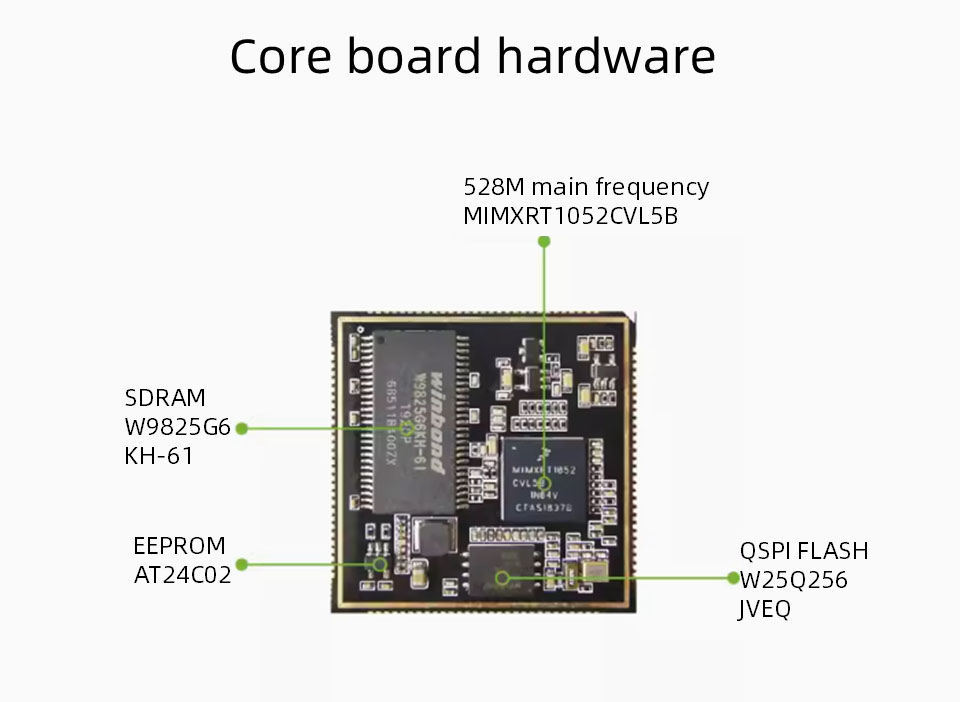

● The hardware resources of the core board include

● 32MB SDRAM, 32MB NOR Flash, and 256B EEPROM.

● The PCB adopts a 6-layer black immersion gold design, with an overall size of 38*38mm, a total of 116 pins, and a pin spacing of 1.0mm. Except for the SEMC bus, the remaining 10 pins of the chip are all led out.

Core board signal interface Parameters

Main chip: MIMXRT1052CVL5B, Cortex-M7 core, main frequency 528MHZ

SDRAM: 2MB, TSSOP package, brand Winbond, industrial grade

FLASH: 32MB, WSON8 package, brand Winbond, industrial grade

EEPROM: AT24C02 256B

Ethernet PHY: None

PCB size: 38*38mm

Power supply: 3.3V

Shield cover: No shield cover

GPIO: 116 pins, 1.0mm pin spacing, except for SEMC bus, all other I0 are led out

Operating temperature: -40~85°C, industrial grade

Core board signal interface

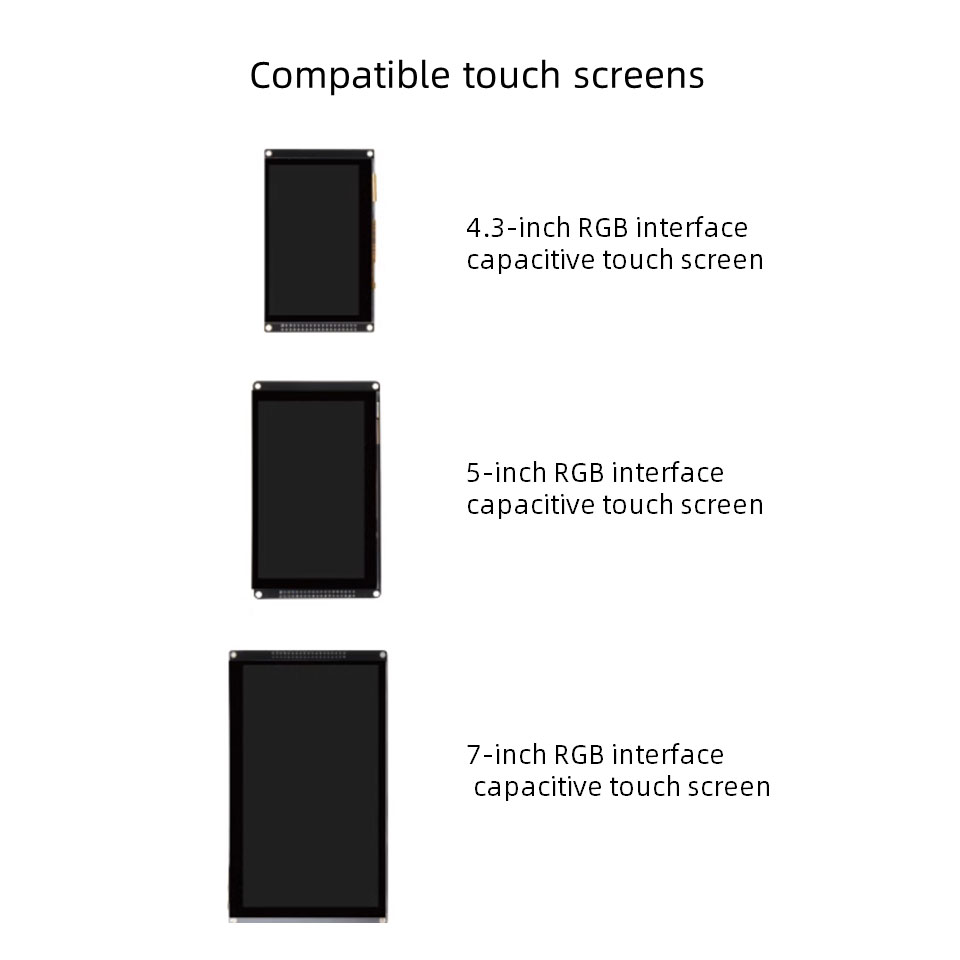

● LCD: 1 channel

● USB: 2 channels, with high-speed PHY

● SDIO: 2 channels

● I²C: 4

● SPI: 4

● UART: 8

● SAI: 3

● ADC: 2 (16 channels each), 12bit

● PWM: 4

● JTAG: 1 channel

● SPDIF: 2 channels

● CAN: 2

● Note: The above data may be reused, please refer to the core board pin description as a reference design

Note: The board can be customized with a minimum order of 500
