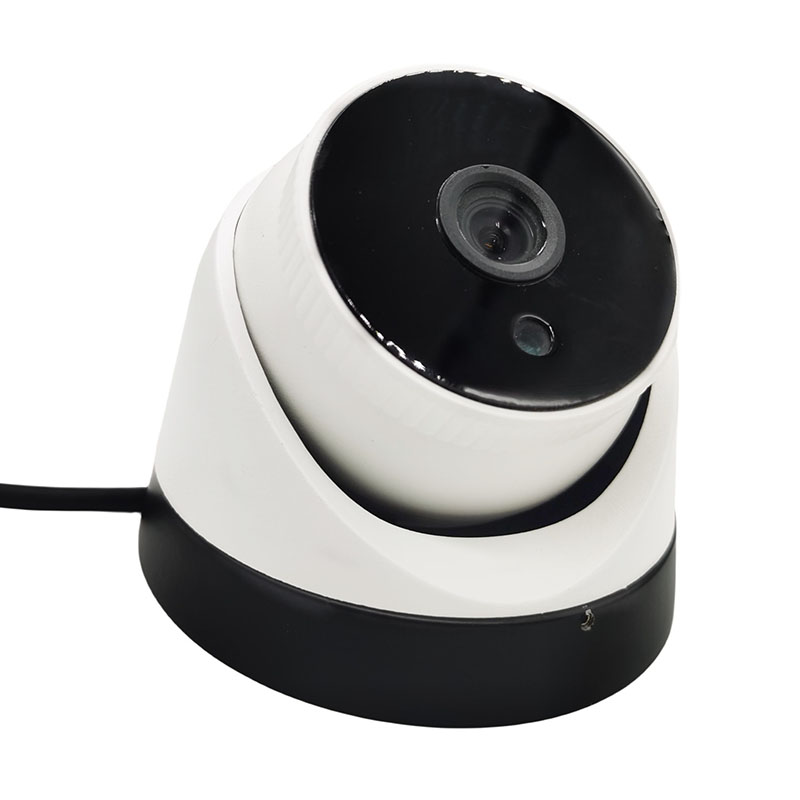

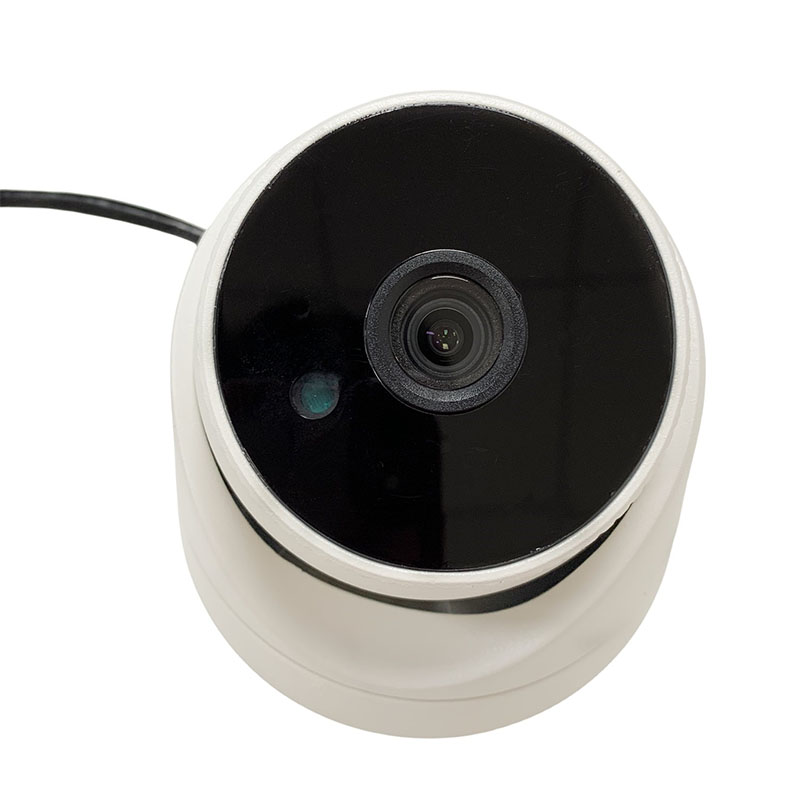

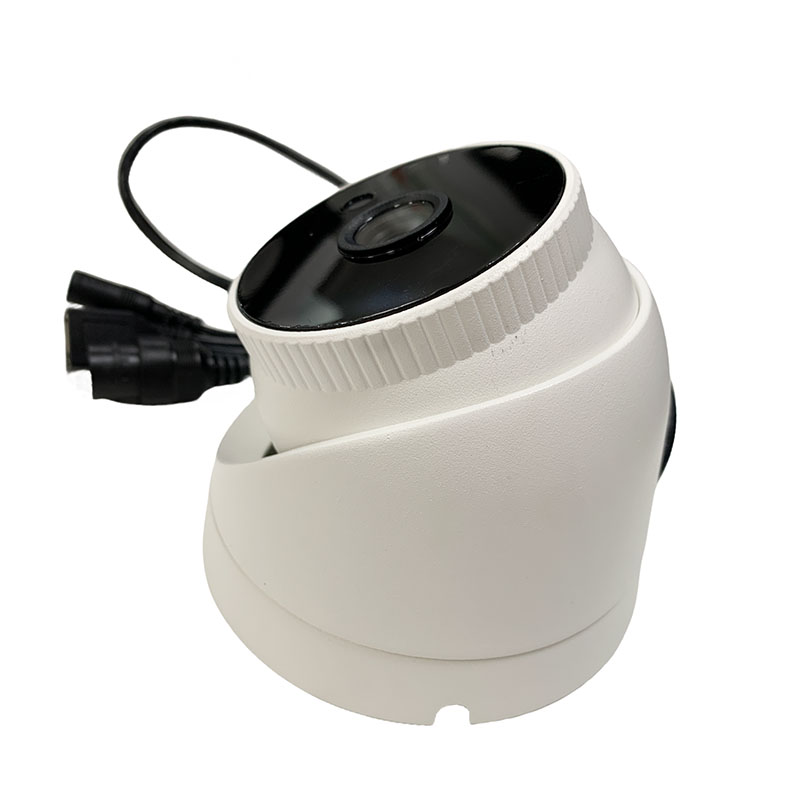

Rockchip RV1126 4K AI IP Camera

Low-consumption Al vision processor RV1126,with 14nm lithography processand qual-core 32-bit ARM Cortex-A7 architecture,integrates NEON and FPU--thefrequency is up to 1.5GHz.Rockchip RV1126 4K AI IP Camera uses an AI engine that can perform tasks such as object detection, face recognition, and image enhancement, which can be used for smart security features.Capable of capturing video in resolutions up to 4K (3840x2160) at 30 frames per second, which can provide high-quality video surveillance footage.

Send Inquiry

Product Description

Rockchip RV1126 4K AI IP Camera features:

1. 2.0 TOPS NPU (Neural Processing Unit):With 2.0 tera operations per second (TOPS) computing power, the RV1126 is equipped for intensive AI tasks, including real-time image processing, object detection, and other AI-driven analysis.

2. 4K H.264/H.265 encoder and decoder:The RV1126 supports both H.264 and H.265 encoding and decoding, offering high-resolution 4K video capabilities while maintaining efficiency in data compression and bandwidth usage. Photosensitive IMX415 8 million 1/2.8" moonlight low illumination CMOS sensor.

3. Quad-core ARM Cortex-A7 and RISC-V MCU: This architecture provides a robust computing foundation, ensuring smooth and efficient operation for complex processing tasks.

4. Provide SDK and hardware customization. Software Support customer development.Videoframe rate ：customer development.Mainstream resolution：Customer Development.Sub stream resolution：Customer Development.Video encoding format：Customer Development.Video bit rate：Customer Development.More.......

5. Wide range of applications：surveillance security, structured video support: face capture, human body capture, crowd situation analysis, motor vehicle capture, traffic data analysis, behavior analysis, fireworks detection, smart helmet etc.

1.1 Basic Parameters
Product model	HI 201
Chip	RV1126
Computing power	2 TOPS
Memory	DDR4 2GB
Flash	EMMC 16GB
Power type	DC12V, outer diameter 5.5mm, inner diameter 2.1mm
Power consumption	Maximum power consumption: 6W, typical power consumption : 4W
Operating temperature	-10°C~50°C (fill light off); -30°C~50°C (fill light on)
Working humidity	5%-95% (non-condensing)
Degree of protection	IP67
Lightning and surge protection	4KV
Explosion-proof	NA
1.2 Image Parameters
Sensor photosensitive surface	IMX415 8 million 1/2.8" moonlight low illumination CMOS sensor
Lens focal length	Reference T3801
Camera angle	Reference T3801
Maximum aperture	Reference T3801
Fill light distance	No fill light
Day and night mode	No fill light
Wide dynamic range	No dynamic range
White balance	Manual / Auto
SNR	>45dB
