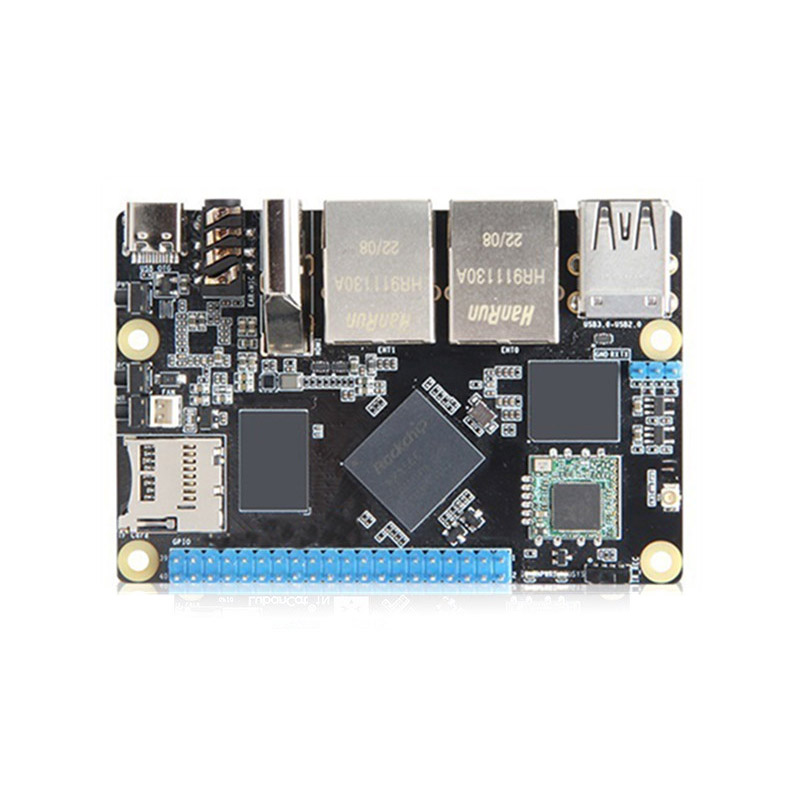

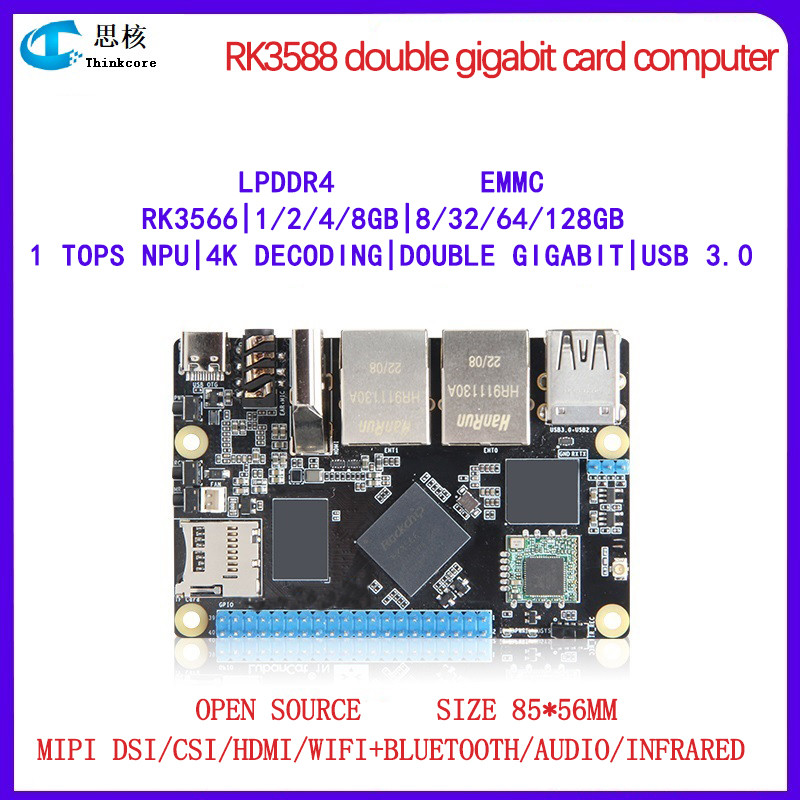

RK3566 Card Computer System

Find a huge selection of RK3566 Card Computer System from China at Thinkcore.

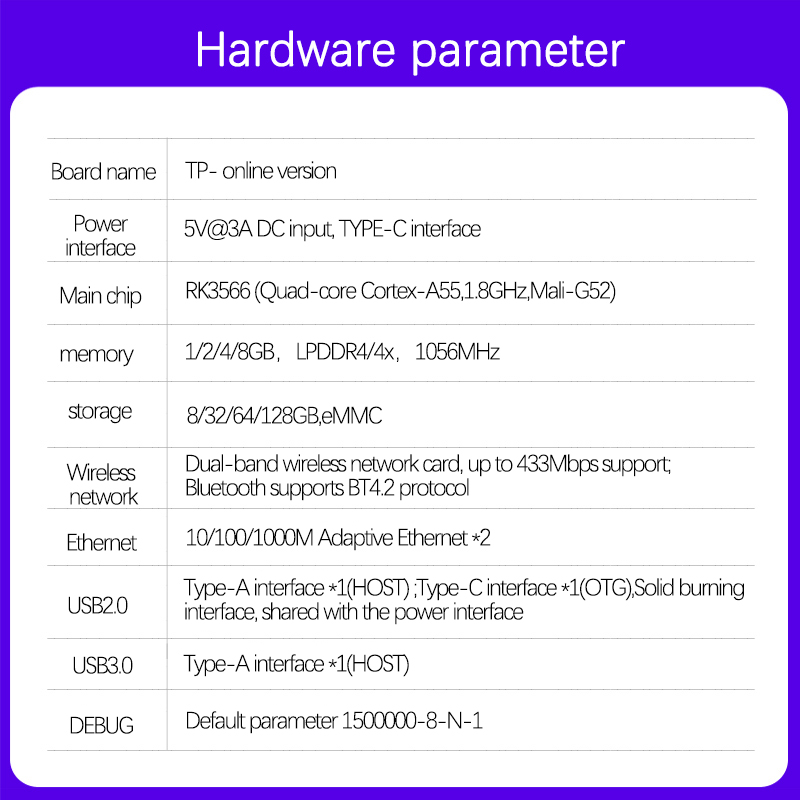

Using Rockchip RK3566 as the main chip, 22nm process technology,1.8GHz main frequency, integrated quad-core 64-bitCortex-A55 processor, Mali G52 2EE graphics processor and independent NPU;

RK3566 Card Computer System With 1TOPS computing power, it can be used for lightweight artificial intelligence applications;

Support 1 channel 4K60 frame decoding video output and 1080P encoding;

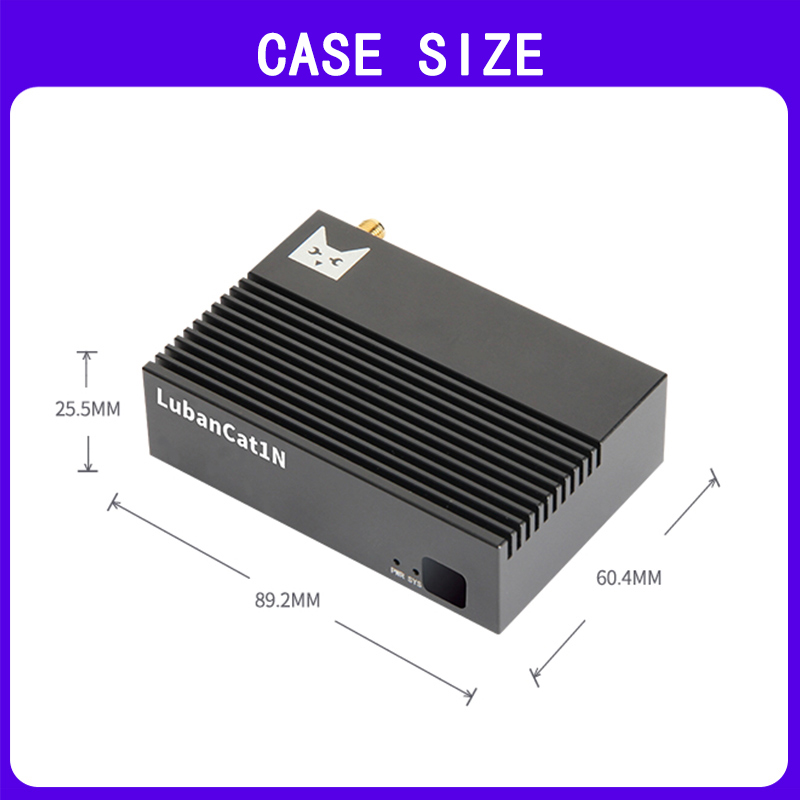

The board provides a variety of memory and storage configuration options, only 85*56 mm in size, low power consumption,

RK3566 Card Computer System has high performance, and can easily run Linux or Android systems;

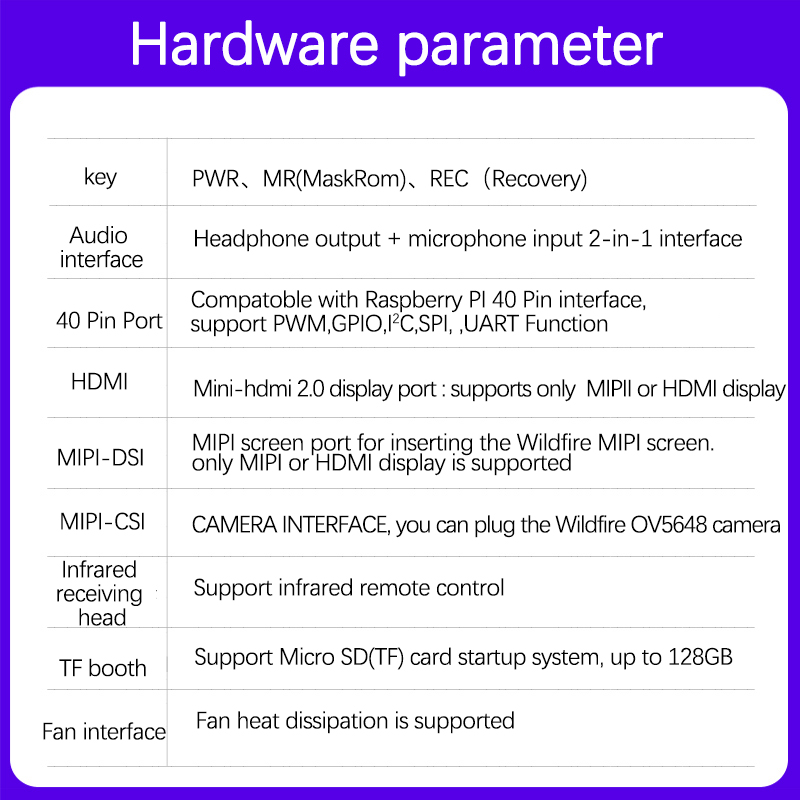

Onboard a large number of commonly used peripherals, integrated dual-band WiFi+ BT4.2 wireless module, dual Gigabit Ethernet ports, USB3.0, USB2.0, HDMI, Mini PCIe, MIPI screen interface and MIPI camera interface and other peripherals, preset Leave 40Pin unused, compatible with Raspberry Pi interface;

Provide Android, Debian, Ubuntu operating system images, which can be applied to many different application environments

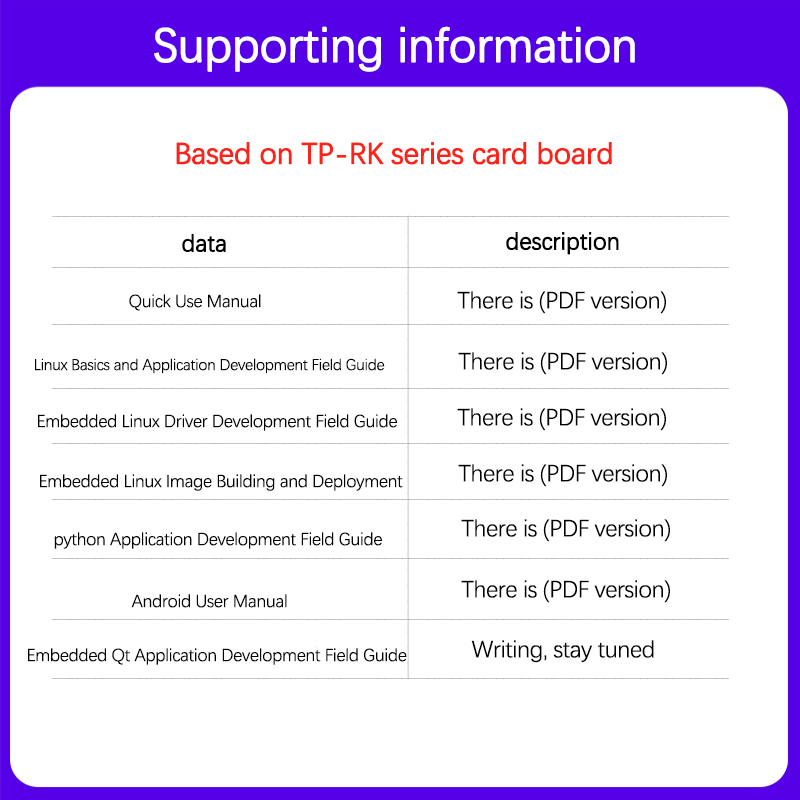

Provide a complete SDK driver development Kit, design schematic diagram and other resources, which is convenient for users to use and secondary development.
