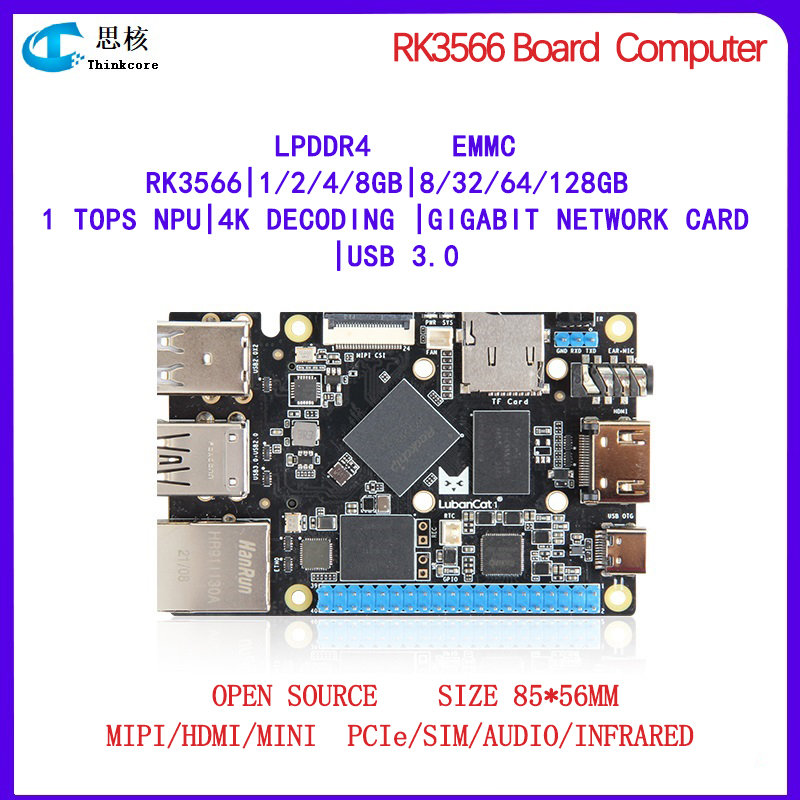

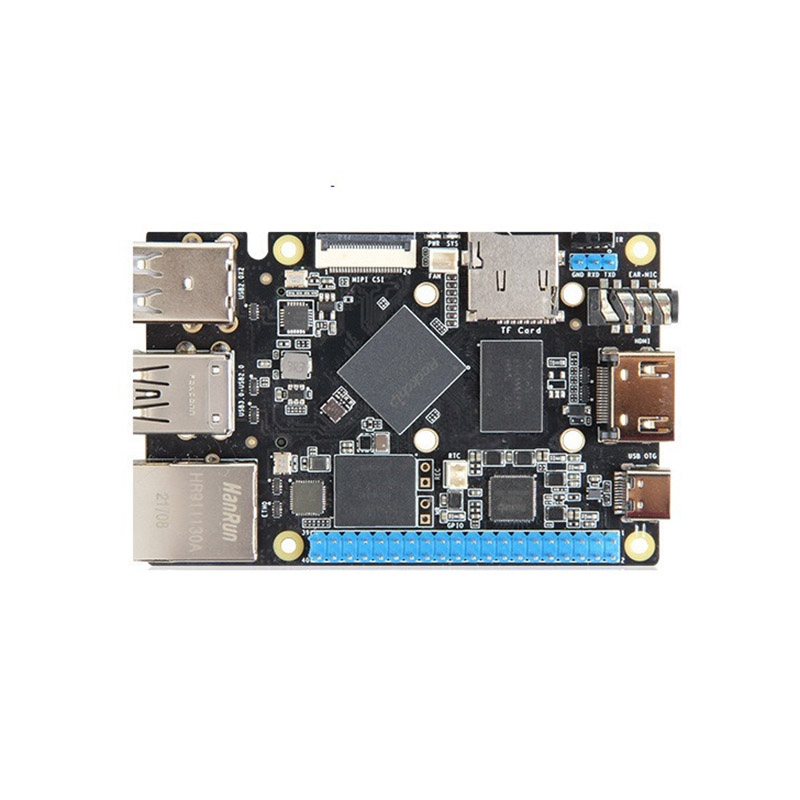

RK3566 Embedded Single Board Computer

Find a huge selection of RK3566 Embedded Single Board Computer from China at Thinkcore.

Using Rockchip RK3586 as the main chip, 22nm process technology, 1.8GHz main frequency, integrated quad-core 64-bit Cortex-A55 processor, Mali G522EE graphics processor and independent NPU;

With 1TOPS computing power, it can be used for lightweight artificial intelligence applications;

Support 1 channel 4K60 frame decoding video output and 1080P encoding;

The board provides a variety of memory and storage configuration options, only 85"56 mm in size., low power consumption.

high performance, and can easily run Linux or Android systems;

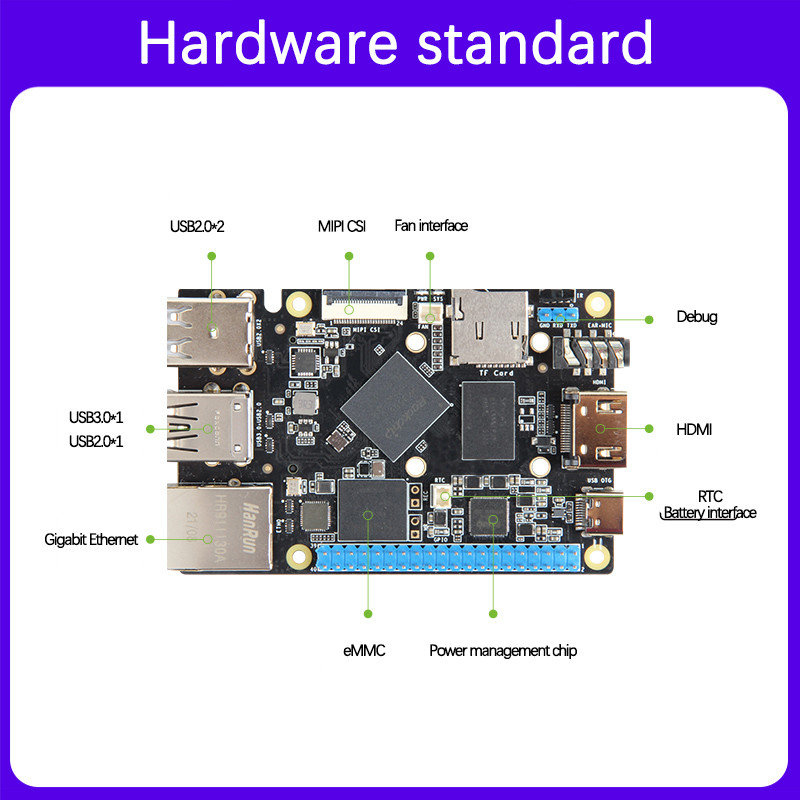

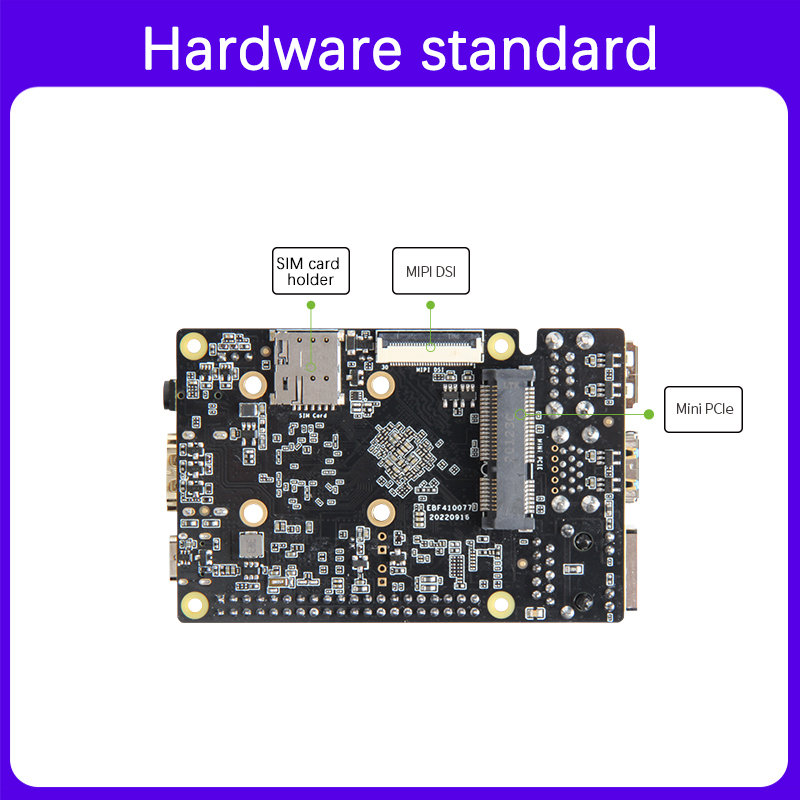

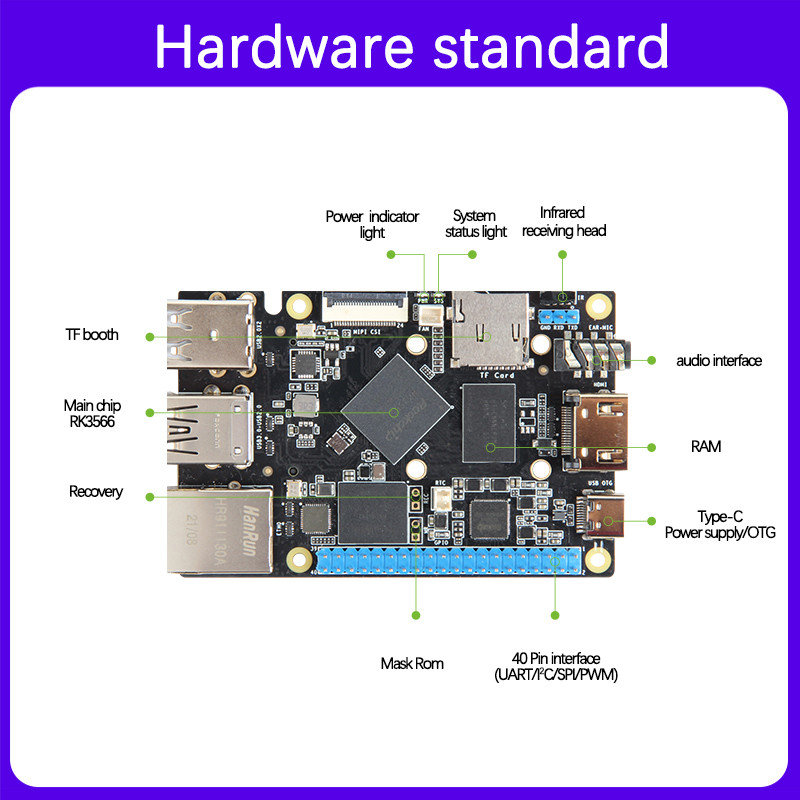

Onboard a large number of commonly used peripherals, integrated dual-band WiFi+BT4.2 wireless module, dual Gigabit Ethernet ports,USB3.0.USB2.0, HDMI, Mini PClE, MIPI screen interface and MIPI camera interface and other peripherals,

preset Leave 40Pin unused, compatible with Raspberry Pi interface;

Provide Android, Debian. Ubuntu operating system images, which can be applied to many different application environments.

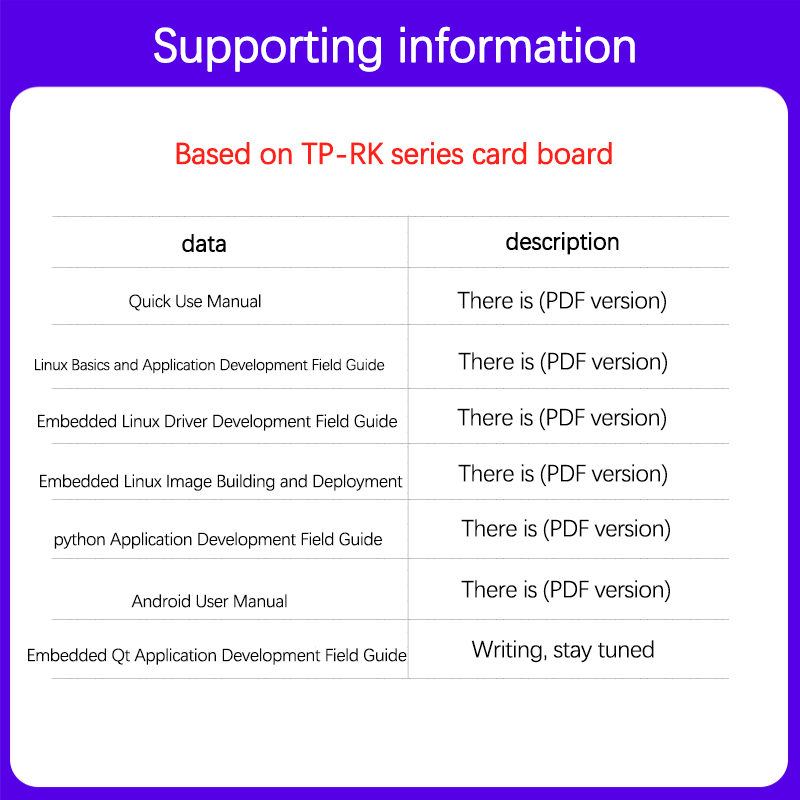

Provide a complete SDK driver development kit, design schematic diagram and other resources, which is convenient for users to use and secondary development.
