Rockchip RV1126B SOM Stamp Hole Core Board

Scope of Application for Core Board

RV1126B core board is an AI image processing mainboard, widely applied to devices in fields including face recognition, turnstile access gates, access control systems, robots, and dual-lens camera applications.

Product Overview

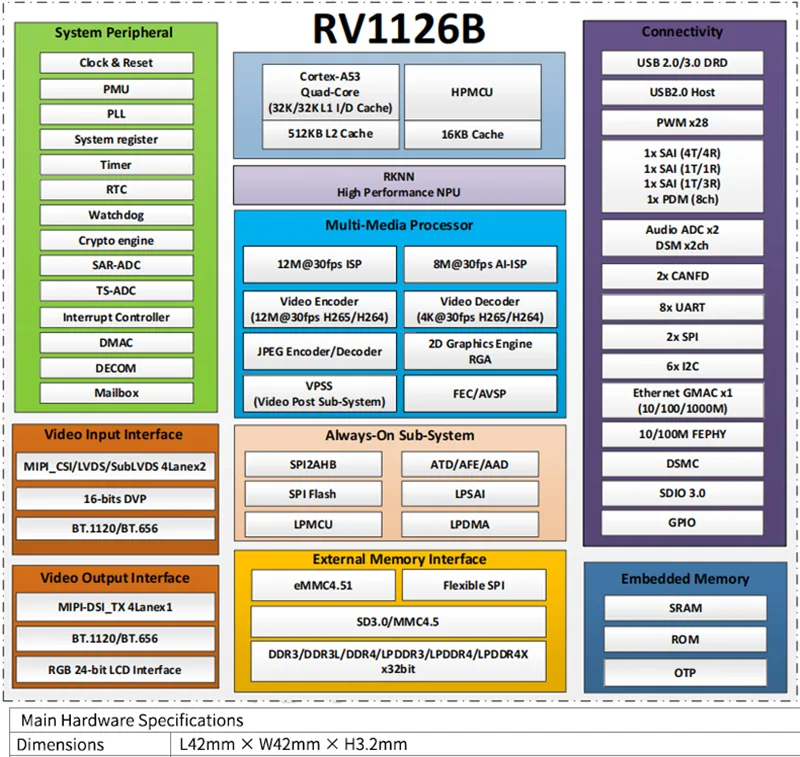

This core board adopts Rockchip RV1126B, equipped with quad-core Cortex-A53 processor and an NPU delivering 3.0 TOPS computing power. It runs the Linux + QT operating system with a main frequency of 1.6GHz and ultra-low power consumption.

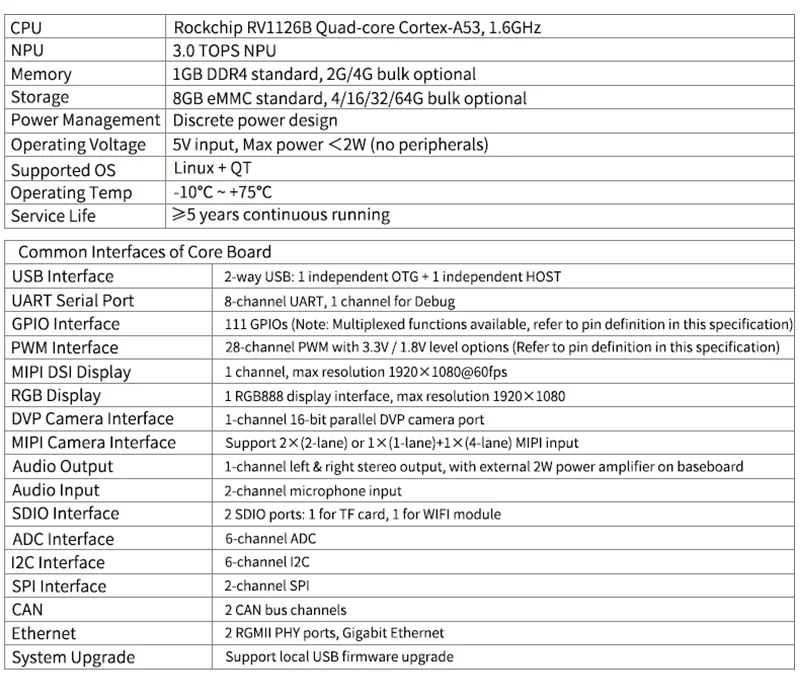

The core board features abundant interfaces with all functional pins led out. A shielding cover is standard factory configuration, and it supports expansion of various peripheral devices. It serves as the optimal solution for your face recognition and image processing projects.

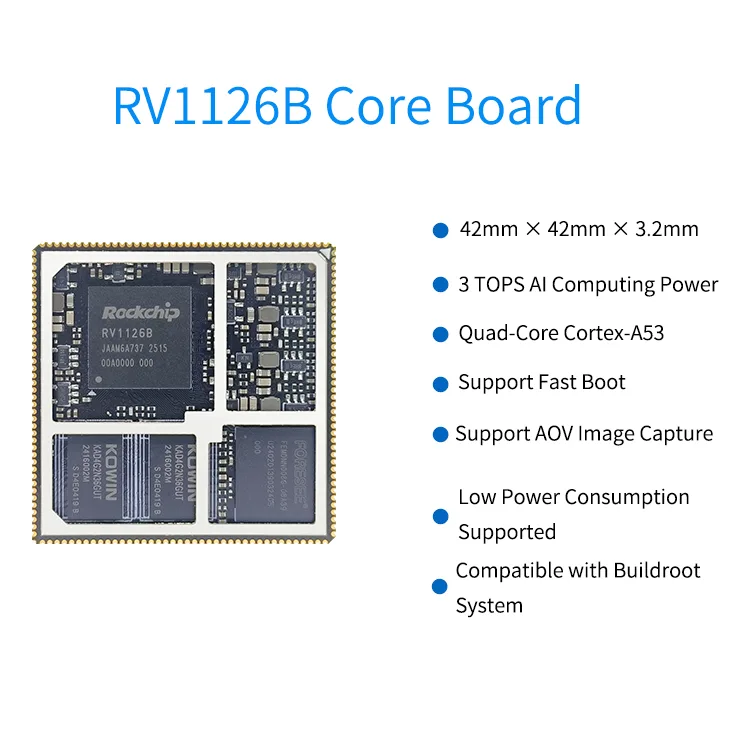

Product Features

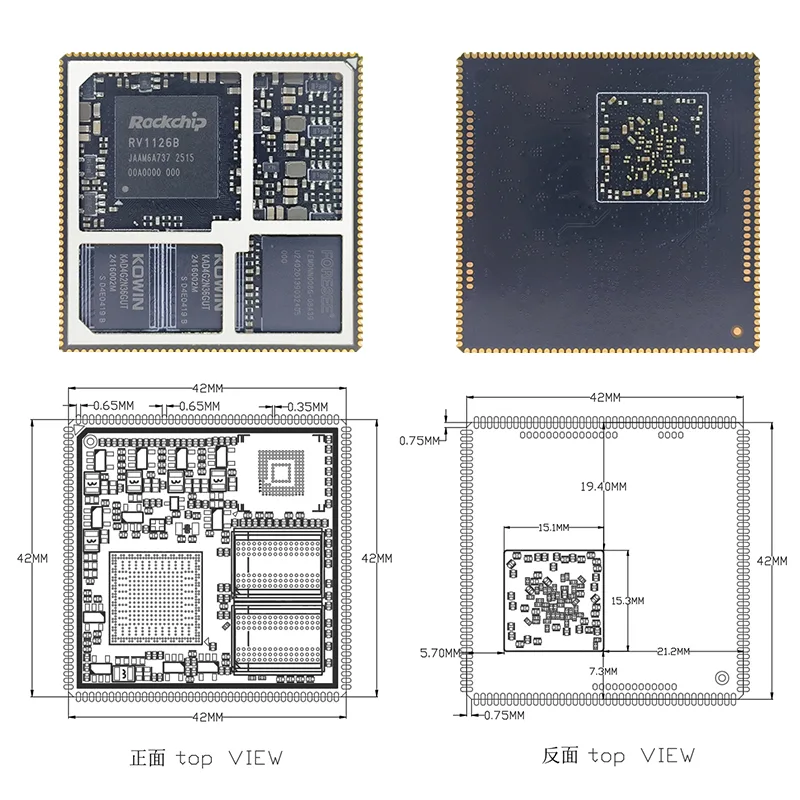

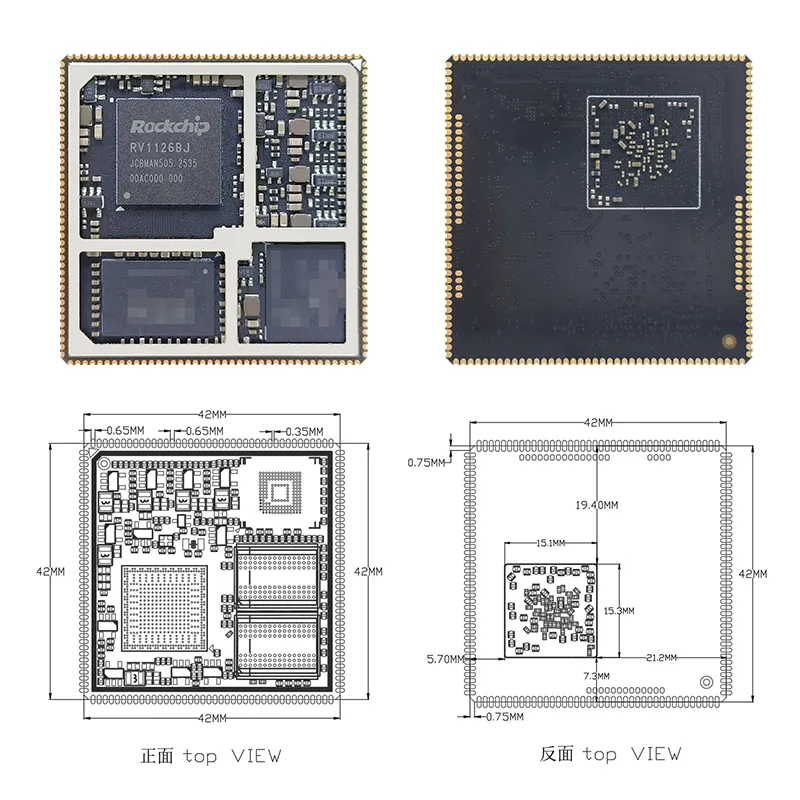

· Core board with stamp hole soldering design

· Quad-core Cortex-A53 CPU

· Ultra-low power consumption

· Onboard NPU with 3 TOPS AI computing power

· Fast boot function

· AOV image snapshot capability

· Customizable Linux 6.1 + QT 5.15 operating system
