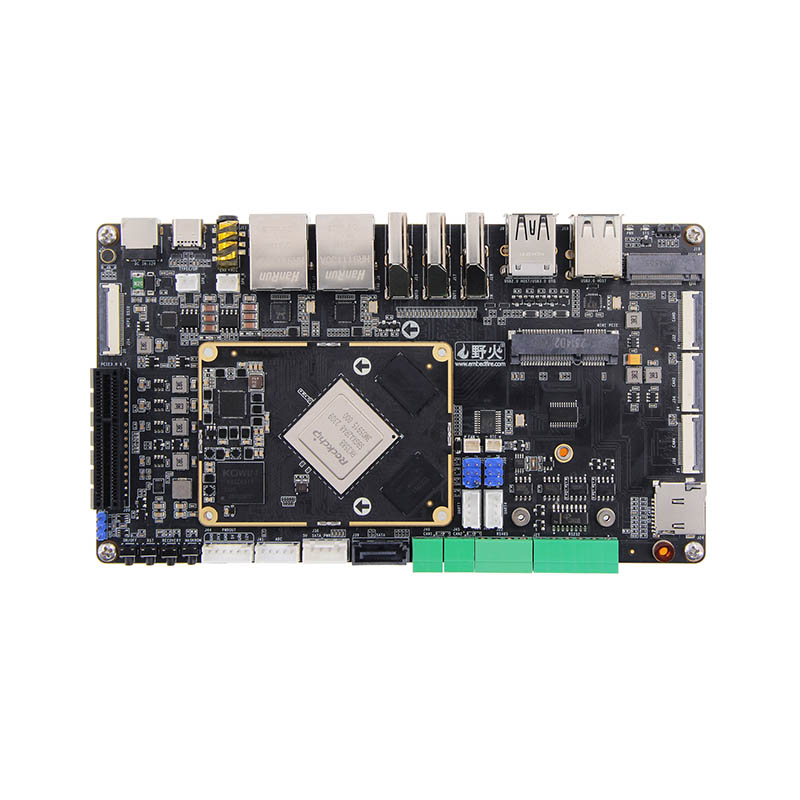

RK3588 Development Board - 8K AI Edge Computing - 6TOPS NPU

The RK3588 Development Board is a high-performance single-board computer powered by Rockchip's flagship **8-core ARM Cortex-A76/A55 processor** and **6TOPS NPU**, ideal for AI edge computing, industrial automation, and 4K/8K multimedia applications.

● Rockchip RK3588 is used as the main chip, with 8nm advanced process technology, the main frequency can reach up to 2.4GHz, integrated quad-core 64-bit Cortex-A76 and quad-core 64-bit Cortex-A55, a total of eight-core processors and ARM Mali-G610 MC4 GPU, supporting 8K video encoding and decoding and 8K display output, super image processing capabilities, support for multiple camera input, and support for multiple screens.

● 8 Built-in independent NPU computing power can reach 6TOPS, enabling various AI scenarios.

● Provide a variety of memory and storage combinations to choose from, balanced onboard hardware configuration, and a wide range of applications.

● High integration, with rich expansion interfaces, with dual Gigabit network ports, USB, M.2, PCle3.0X4, 5MiniPCle, HDMI, MIPI screen interface and MIPI camera interface, audio interface, infrared reception, TF card holder and other peripherals, can give full play to the performance of the processor and further expand the use of the board.

● Officially supports mainstream Andriod 13, Debain, Ubuntu operating system images, and can be applied to a variety of different application environments.

● Completely open source, providing official tutorials, complete FREE SDK driver development kits, design schematics and other resources

Product Features

● Ready to use, supports multiple operating systems

● Built-in independent NPU, AI Acceleration: 6TOPS NPU support TensorFlow/MXNet/PyTorch

● Adopts three-core architecture, supports int4/int8/int16/FP16/BF16/TF32, empowers various AI scenarios

● Easily encode and decode 8K video

Supports up to 8K@60 frames H.265/H.264/AV1/VP9/AVS2 video decoding and 8K@30 frames H.264/H.265 video encoding

● Multi-screen display, high-definition portability

Supports multi-screen display, supports up to 8K@60 frames + 4K@60 frames + 2K@60 frames (three-screen display) or 4K@60 frames + 4K@60 frames + 4K@60 frames + 2K@60 frames (four-screen display)

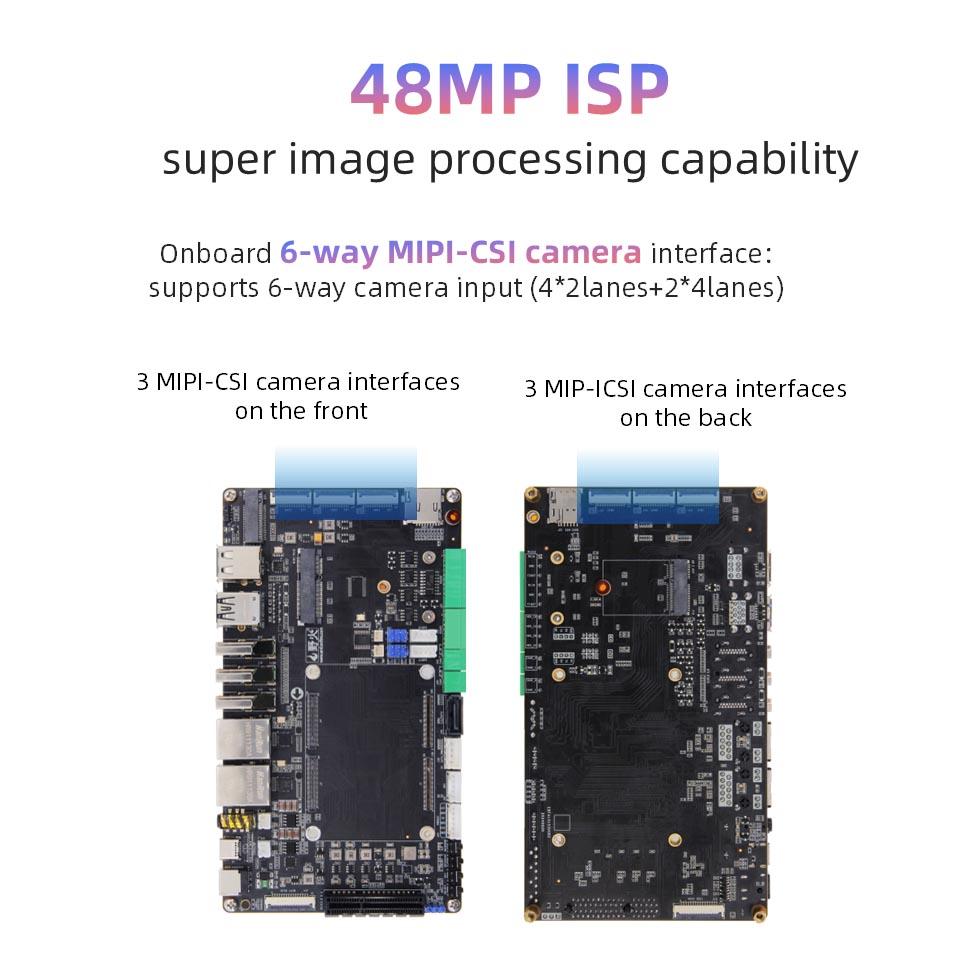

● 48MPISP, super image processing capability

● Onboard 6-way MIPICSI camera interface, Supports 6-way camera input (4*2lanes+2*4Lanes), meeting the needs of various devices

● OS Support**: Debian 11/Android 12/Ubuntu 20.04 + Free SDK

RK3588 Board Application

The board is Ideal for

- AI vision systems (robotics, smart cameras)

- Edge servers and industrial IoT gateways

- Digital signage and 8K media players

Our Services

✓Free Technical Support**: Driver customization

✓ Samples Available**: MOQ 1pc, 3-5 day global shipping via DHL

✓ Volume discount available for 100+ pieces

Product Parameters

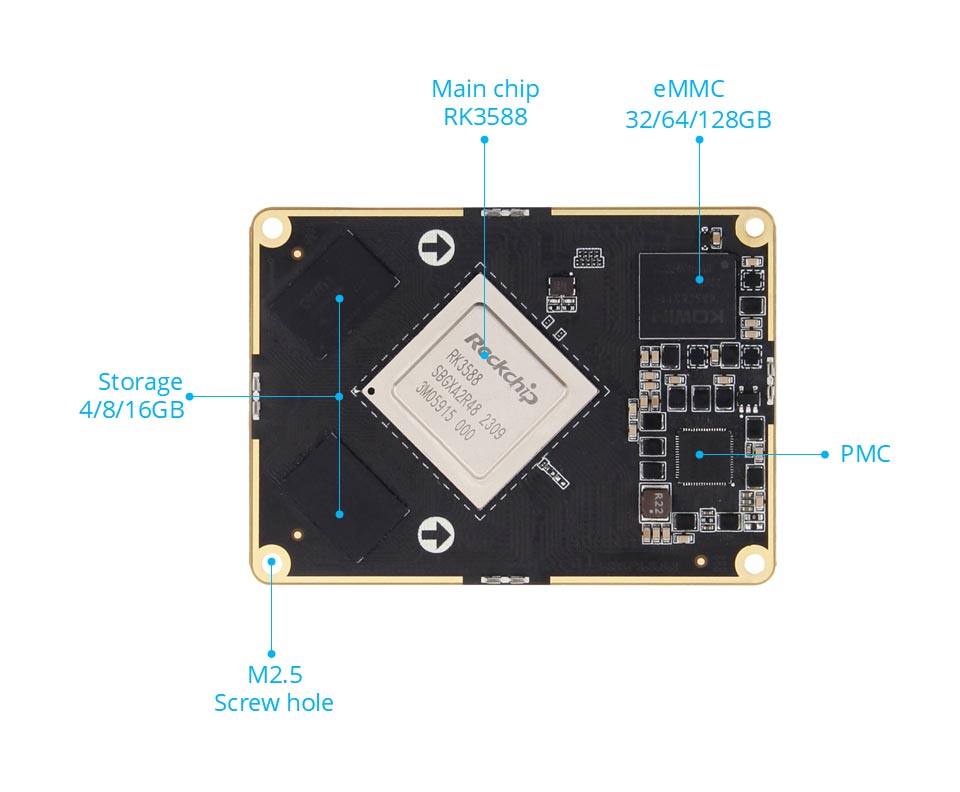

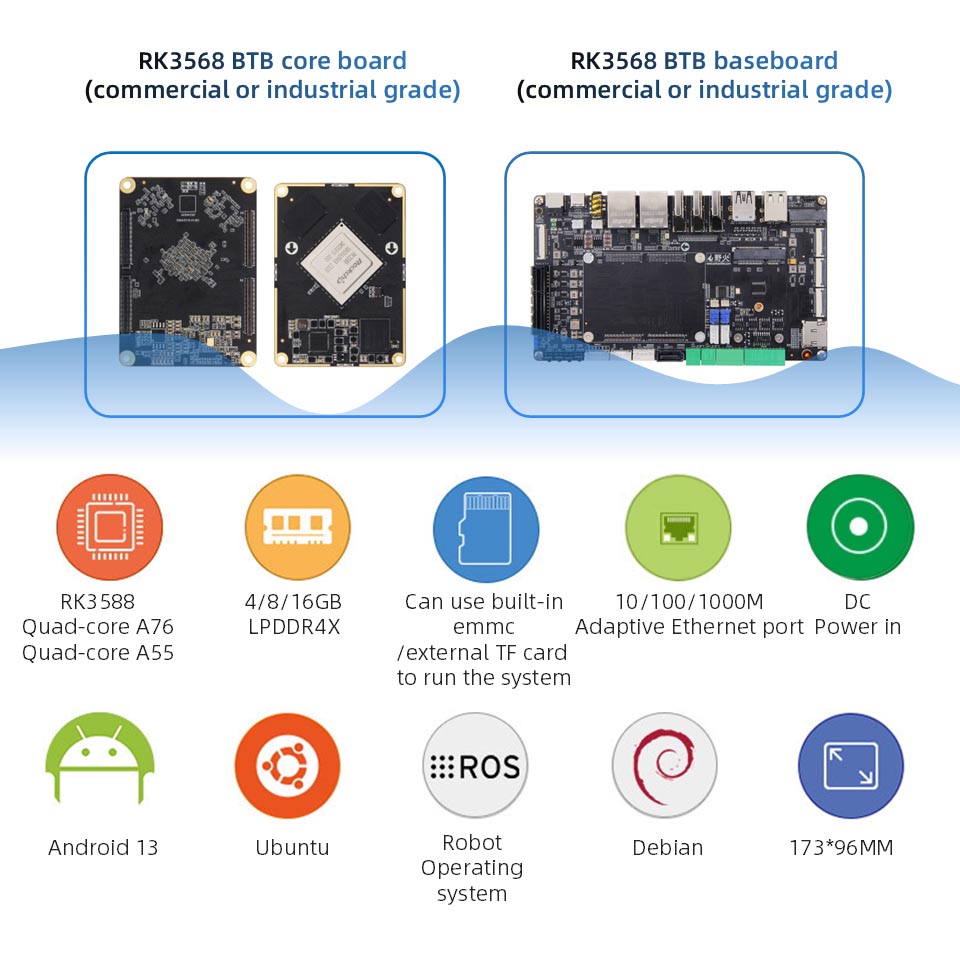

RK3588 Core board parameters

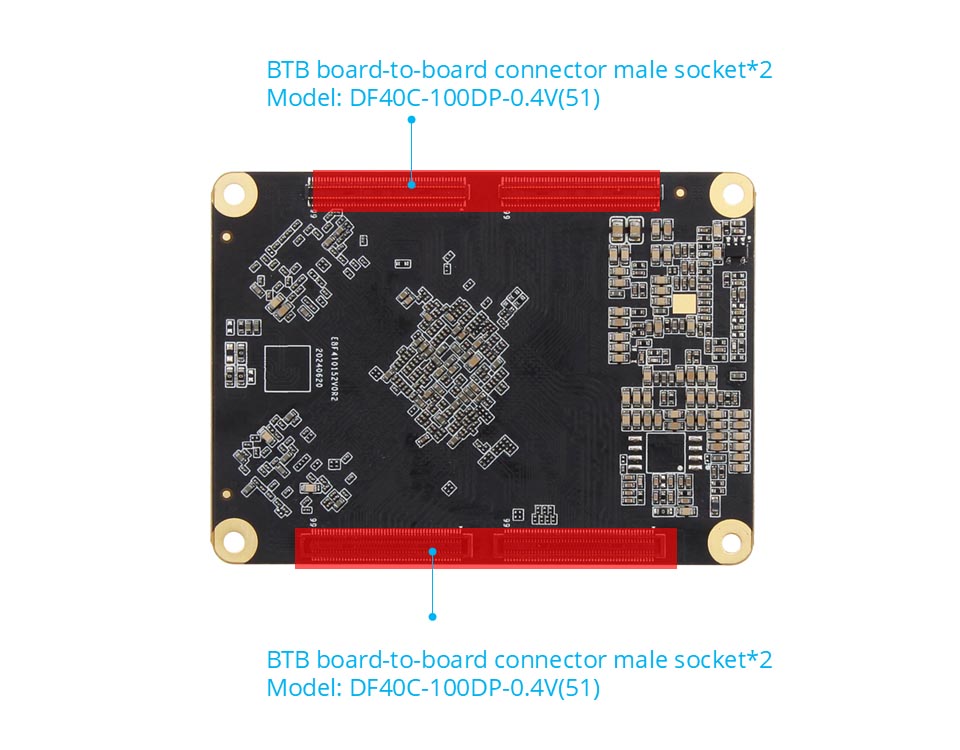

● Connector: Male connector: DF40C-100DP-0.4V(51) Female connector: DF40C-100DS-0.4V(51)

● Main chip: RK3588 (quad-core A76 + quad-core A55, Mali-G610, 6TOPS computing power) BTB leads to 400 pins, 0.5mm spacing, leads to all I0

● Memory: 4/8/16GB, LPDDR4/4x

● Storage: 32/64/128GB.eMMC

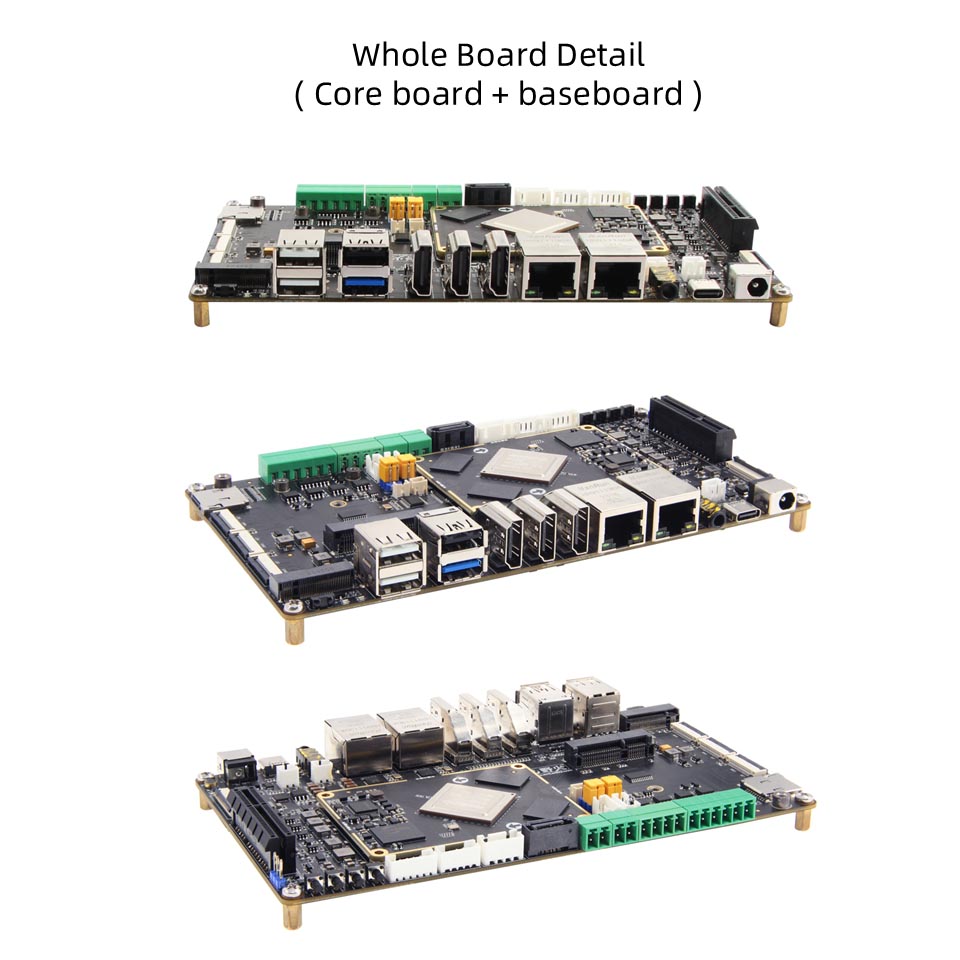

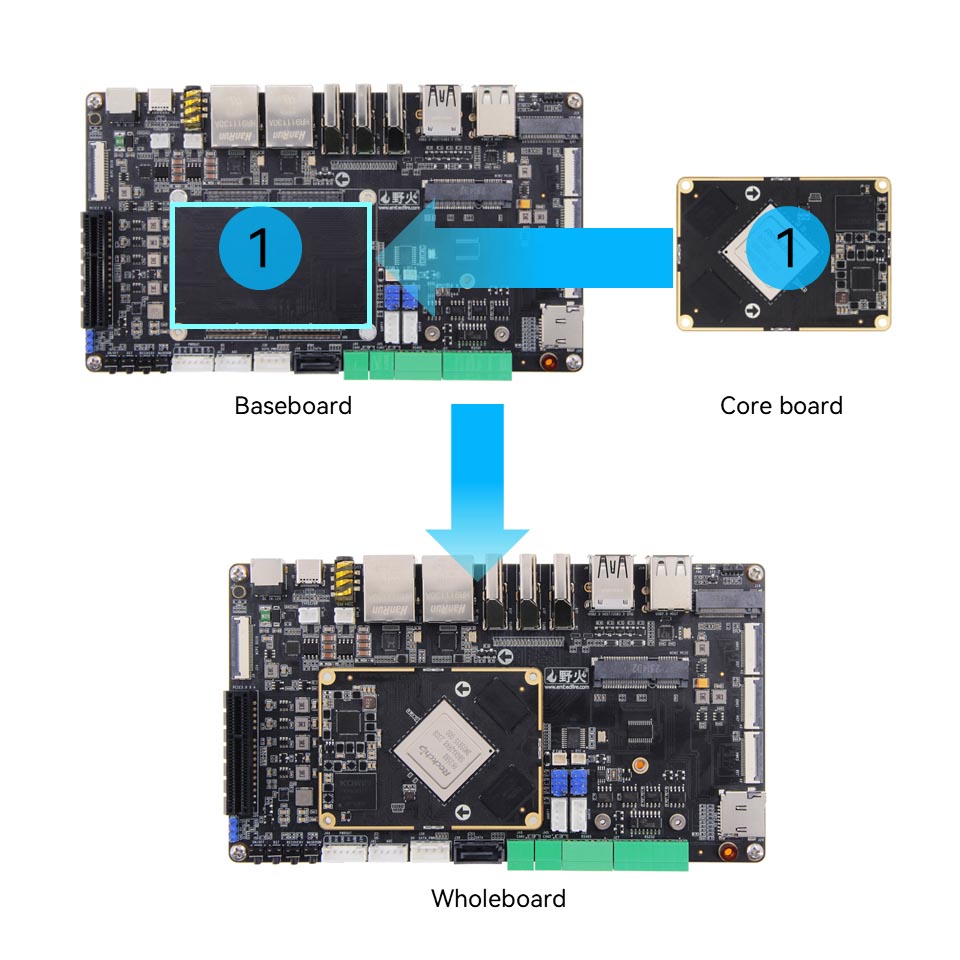

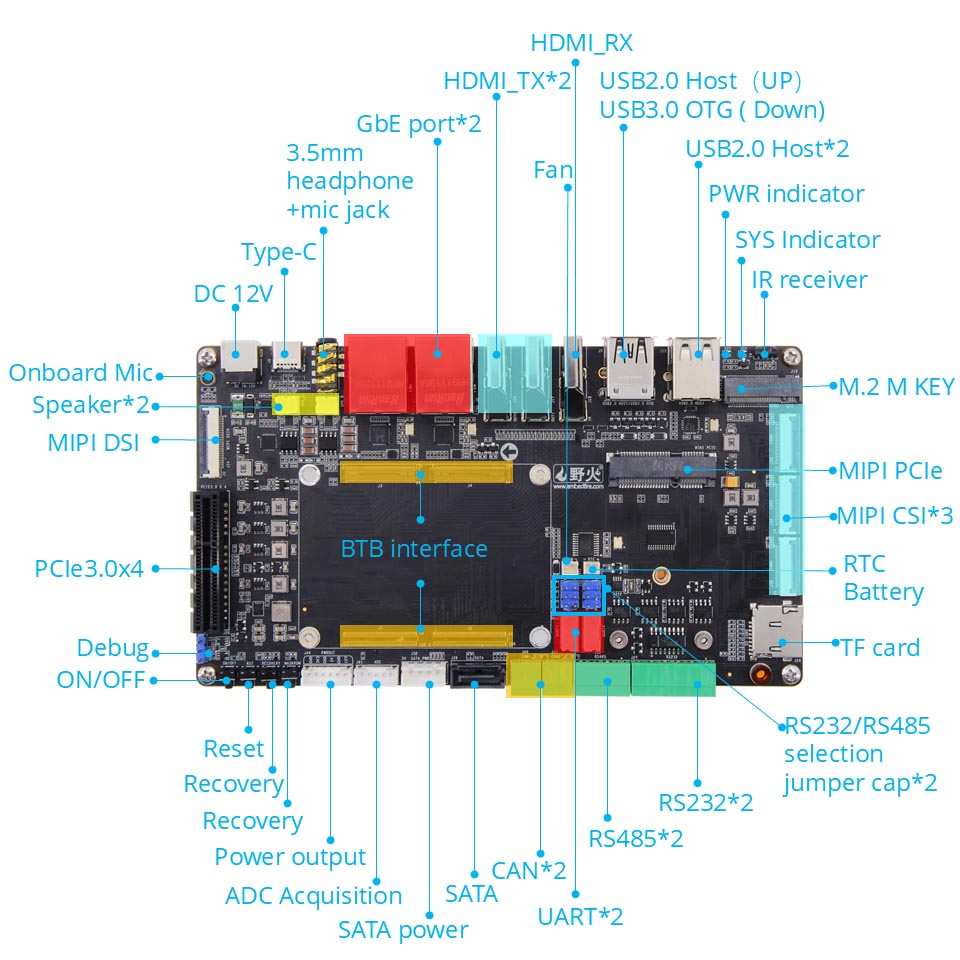

RK3588 Baseboard parameters

● Connector: Male: DF40C-100DP-0.4V(51) Female: DF40C-100DS-0.4V(51)

● Power interface: 12V@2A DC input, DC interface*1; power output interface*1

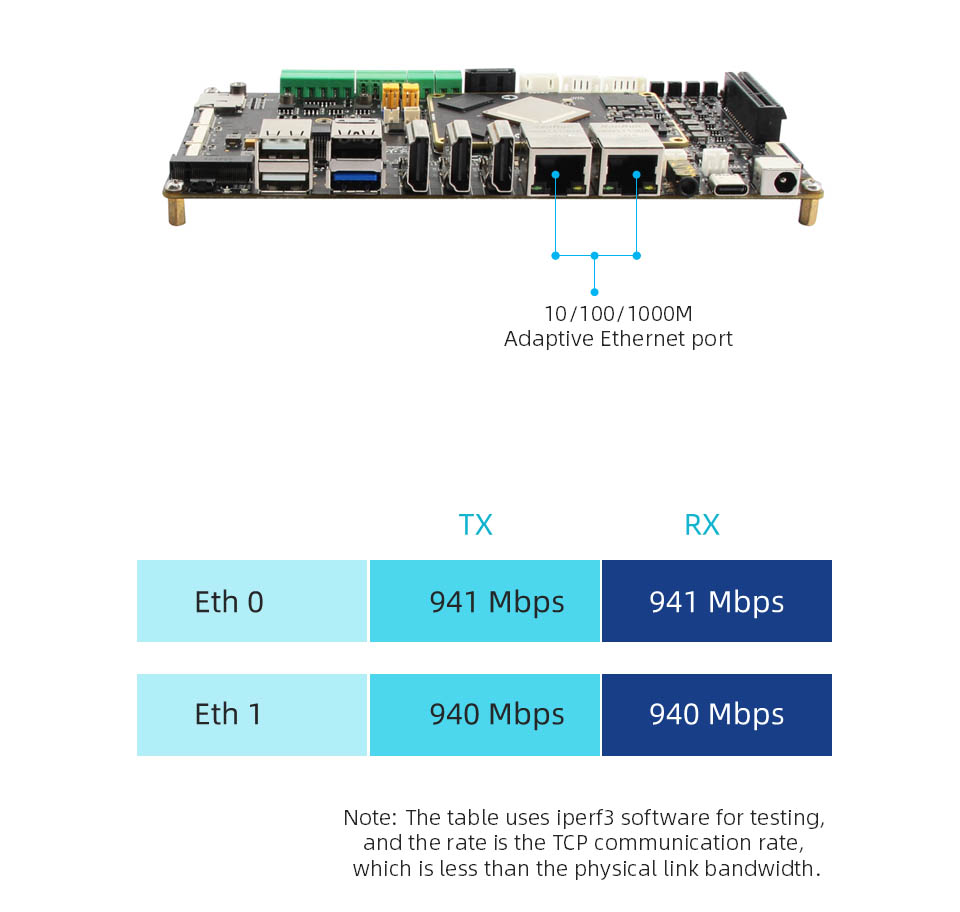

● Ethernet: Gigabit network port*2, support 10/100/1000Mbps data transmission rate

● HDMI: HDMI12.0 input*1, up to 3840x2160@60FPS; HDMI2.1 output*2, supports multiple screens with other screens, maximum resolution 7680x4320@60Hz (8K resolution)

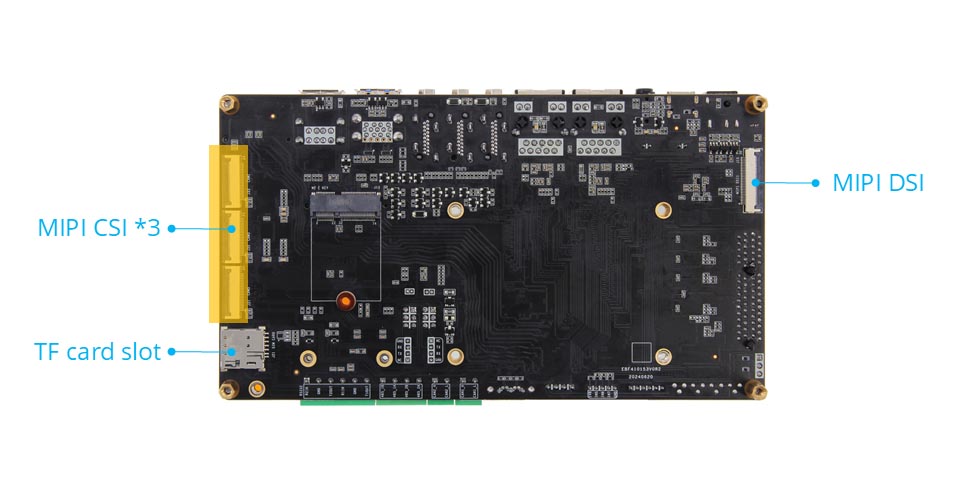

● MIPI-DSI: MIPI screen interface*2 (front*1, back*1), can be plugged into Wildfire MIPI screen, supports multiple screens with other screens; single MIPI mode maximum resolution 1920*1080@60HZ

● MIPI-CSI: MIPI camera interface*6 (front*3, back*3), can be plugged into Wildfire MIPI camera

● USB2.0: USB-HOSTType-A interface*3

● USB3.0: USB-OTGType-A interface*1; Type-C interface*1, can be used for firmware burning, supports DP1.4 protocol

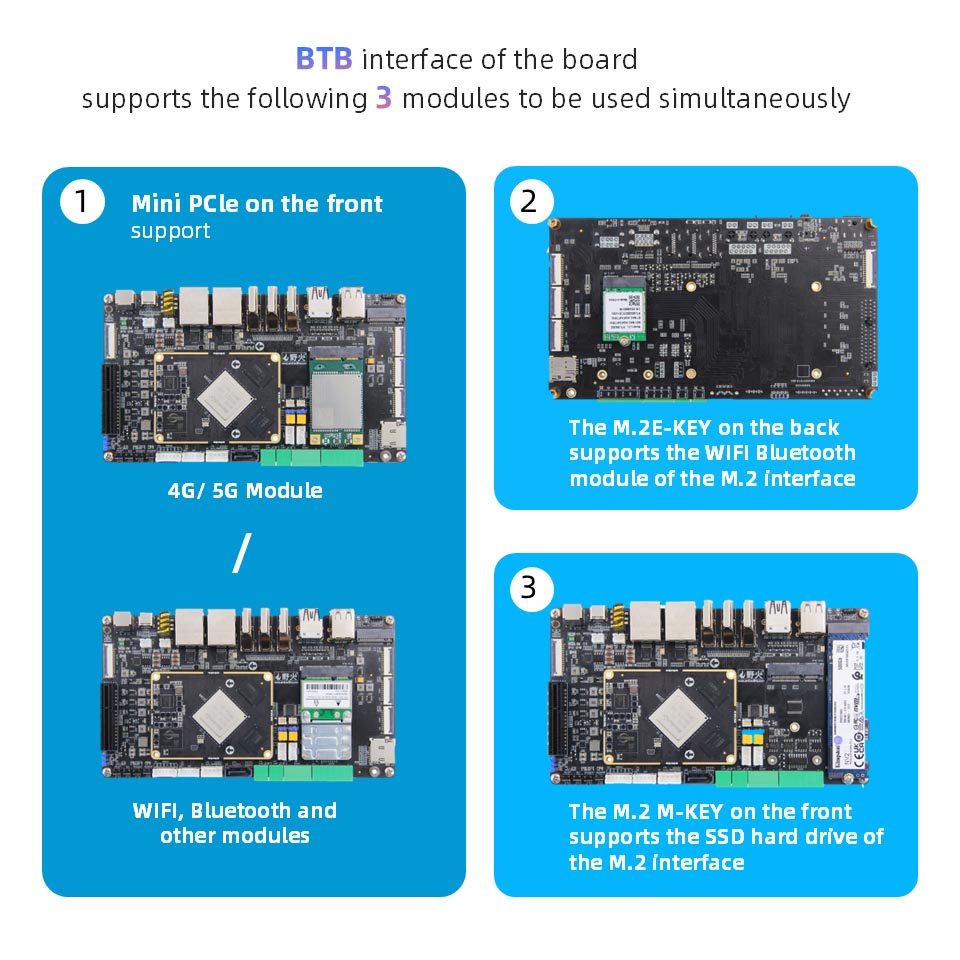

● PCle interface: Mini-PCle interface*1, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module: PCle3.0X4 interface*1

● M.2 interface: M.2EKEY interface*1, supports M.2 E-Key wireless network card module; M.2 M KEY interface*1, supports M.2 M-Key PCle3.0*4Lanes specification 2280 hard disk

● TF card holder: Micro SD (TF) card holder*1, supports TF card boot system, up to 512GB

● SIM card holder: SIM card holder*1, SIM card function needs to be used with 4G module

● SATA interface: Standard SATA interface*1; SATA power interface*1, supports 12V output

● CAN: CAN*2

● ADC: ADC acquisition interface*1

● Debug serial port:

● Debug serial port*1 (UART2), default parameter 1500000-8-N-1; UART serial port*2 (UART7&UART9); RS232*2 (UART4&UART7);

● RS485*2 (UART4&UART7); RS232/RS485 selection jumper interface*2

● Audio: Onboard MIC microphone*1; SPK speaker interface*2, can connect 3W power speaker headphone output + microphone input 2-in-1 interface*1

● Button: ON/OFF button*1; MaskRom button*1; Recovery button*1; Reset button*

● LED: Power indicator*1; System indicator*1

● Infrared receiver: Support infrared remote control function

● RTC: RTC power socket*1

● Fan interface: Support installation of 5V or 12V fan cooling

FAQ:

Q: Does this support Android 12?

A: Yes! Our RK3588 board supports Android 12

Q: What's the NPU performance?

A: The built-in NPU delivers 6TOPS for AI workloads like object detection.

Q: What is the best price?

The price varies depending on product configuration and order quantity. The more you order, the better price we can offer.
