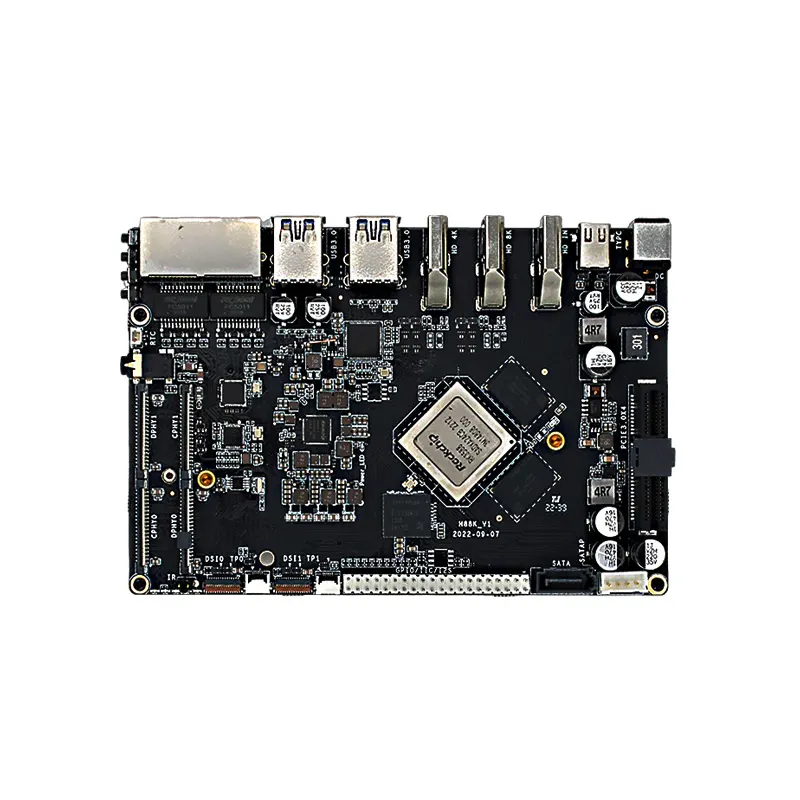

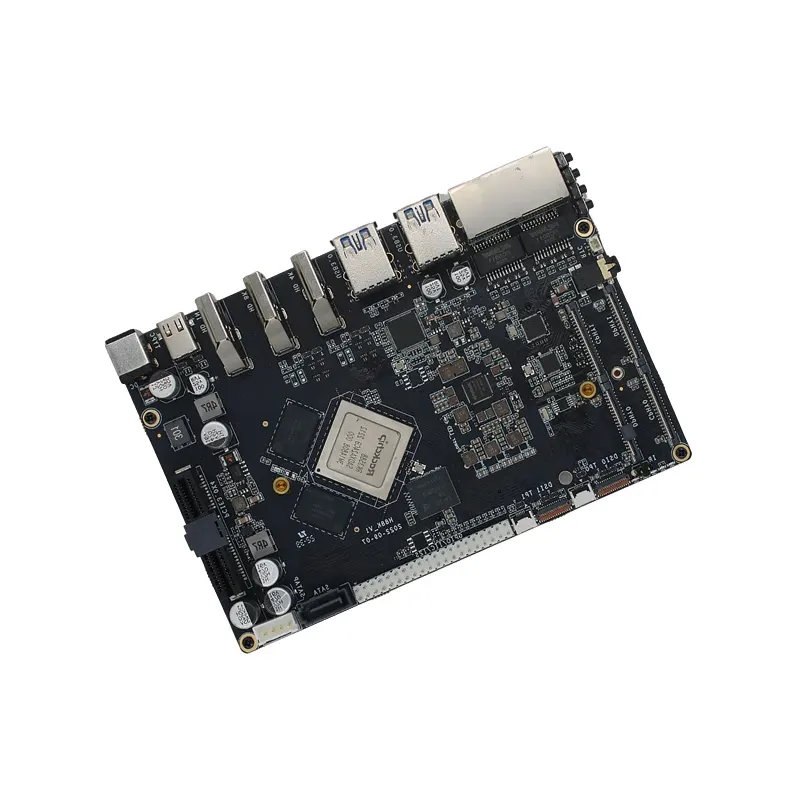

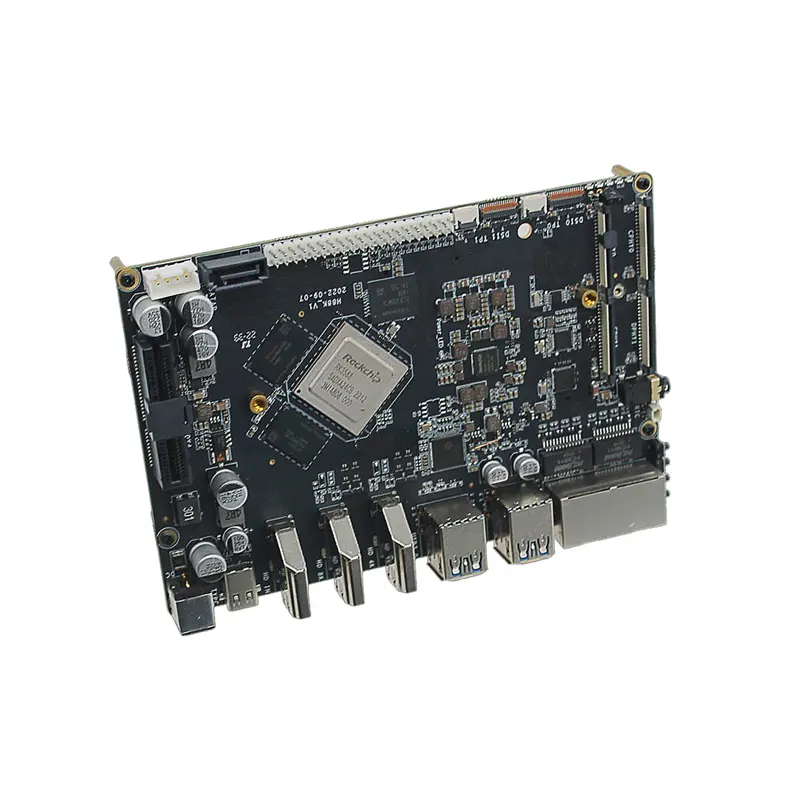

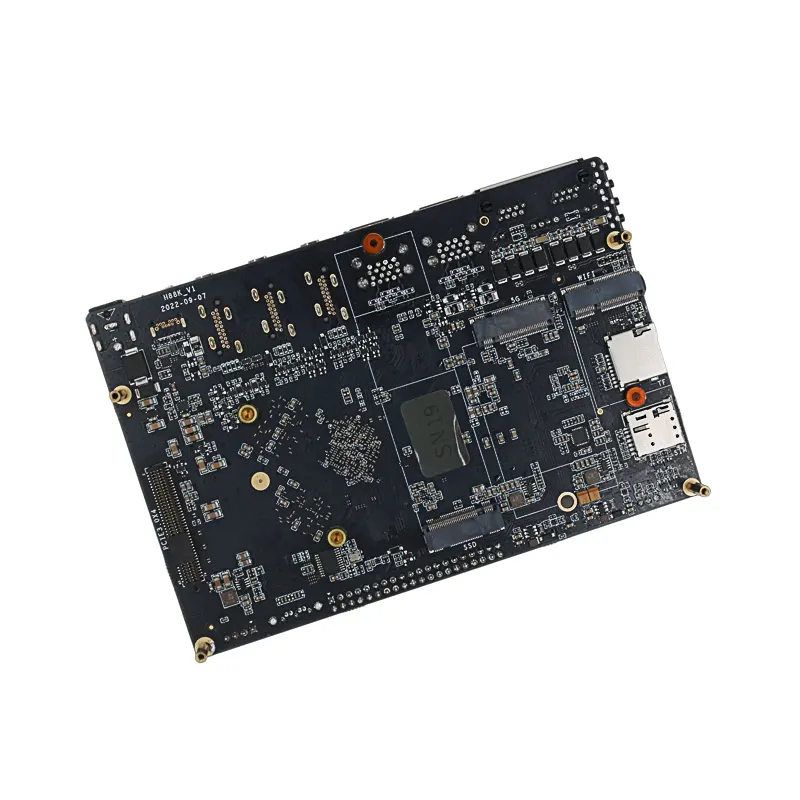

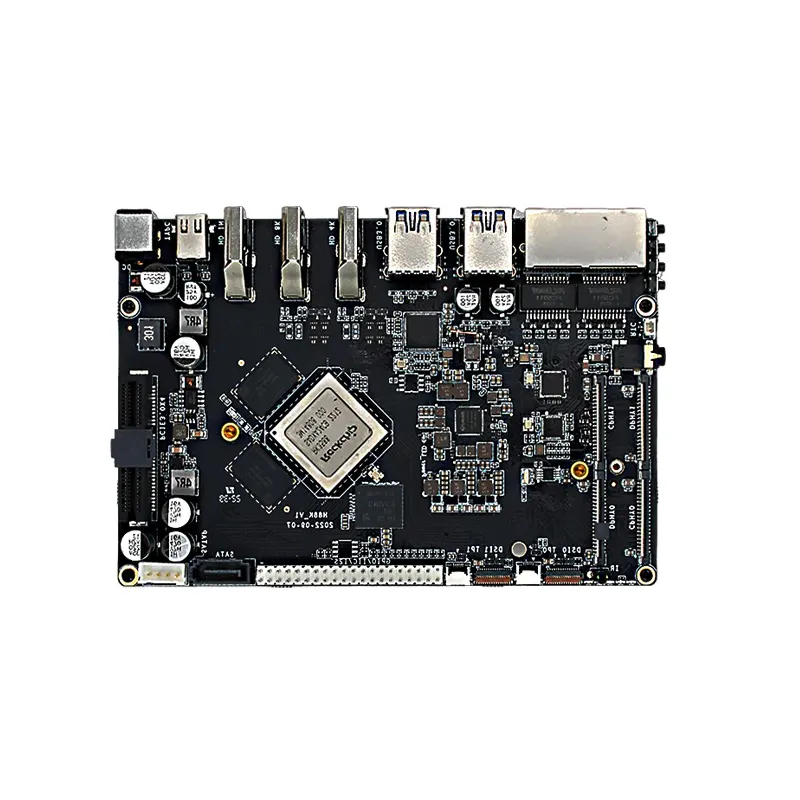

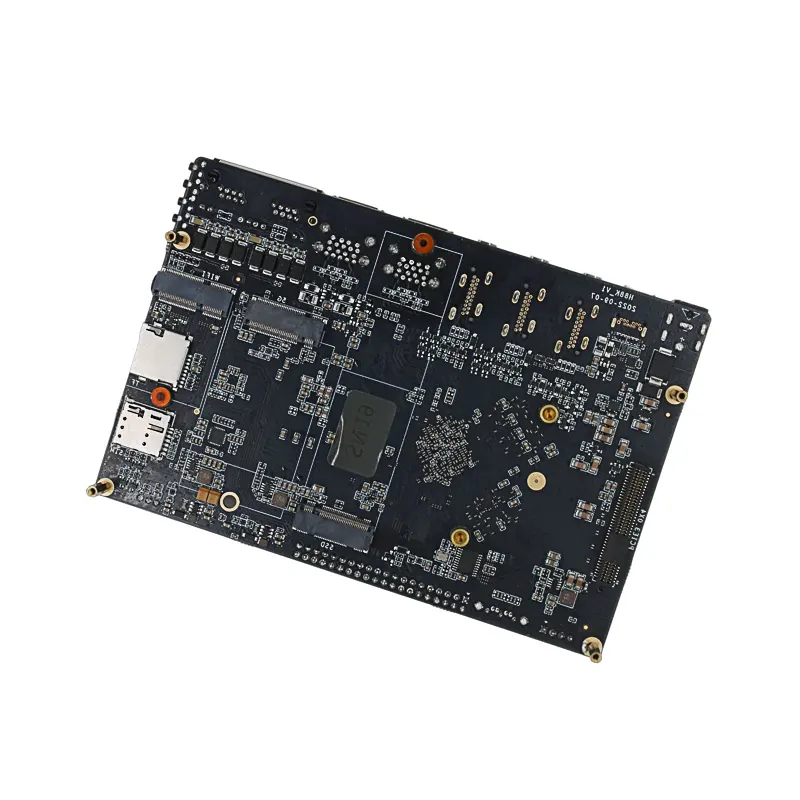

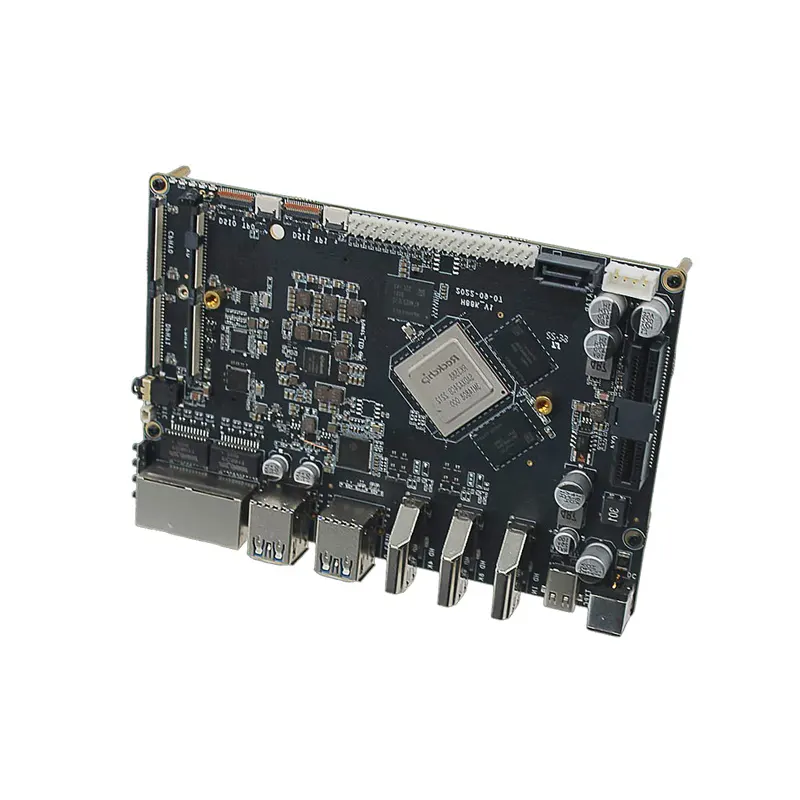

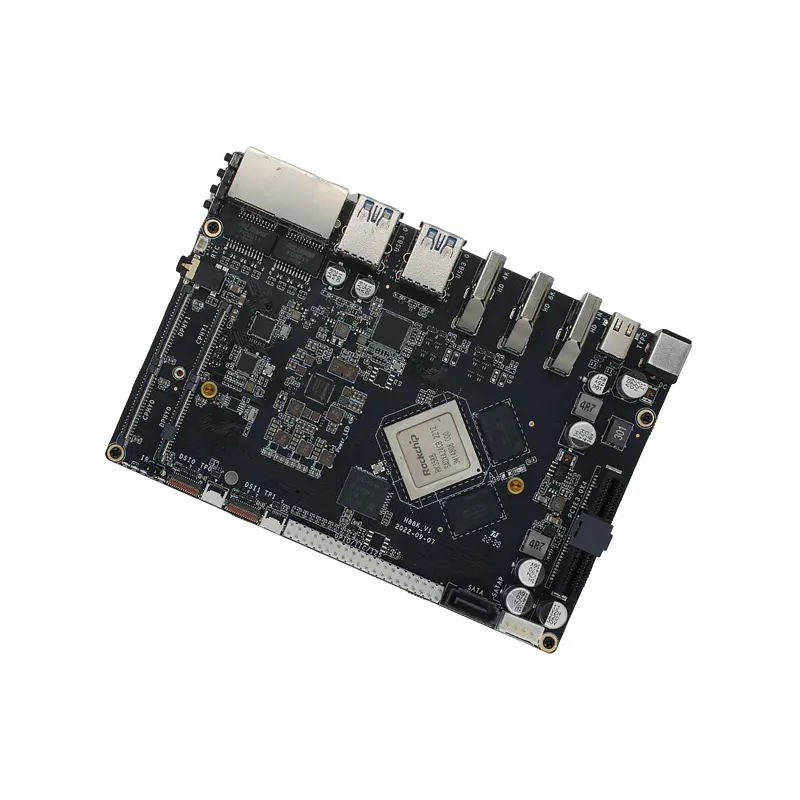

TC-RK3588 Development Board

TC-RK3588 Development Board

Powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the development board can be configured with up to 32GB RAM. Capable of 8Kvideo encoding and decoding, it provides a variety of interfaces supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G

expansion and a variety of video input and output. It also supports various operating systems. This development board can be used in ARM PC, edge computing, cloud server, smart NVR and other fields.

New-gen AIoT SoC RK3588

RK3588 is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI acceleration NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588 can deliver more optimized performance in various AI application scenarios.

8K video encoding and decoding

RK3588 development board supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously — achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. The strong video encoding and decoding capability makes 8K HD display and delicate picture quality available.

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output

With HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interfaces, it supports multi-channel 8K video output and 4K video input — up to seven-screen output with different displays can be achieved. The integrated 48MP ISP with HDR&3DNR supports dual MIPI-CSI camera input.

Strong network communication capability

Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE, enabling network communication have a higher speed.

Multiple hard disks, Massive capacity

It supports expansion of multiple PCIe3.0/SATA3.0 SSD/HDD mass storage devices at the same time, making it a reality that the device can be easily expanded with TB storage capacity.

More interfaces for more possibilities

It’s equipped with PCIE3.0, SATA3.0, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIPI-CSI, MIPI-DSI, USB3.0, USB2.0, SPI, GPIO and other expansion interfaces.

High-performance ITX mainboard

RK3588 development board, with standard MXM3.0-314P interface, which is small in size, can be combined with a backplane to form a complete high-performance ITX mainboard with richer expansion interfaces, which can be directly applied to various smart products to accelerate the product development process.

Backplane reference design is provided

Backplane reference design and complete technical information are provided, so users can efficiently proceed secondary development to quickly create independent and controllable products.

Supports various operating systems

Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and UOS are supported. And it supports RTLinux, delivering excellent real-time performance. Also, UEFI Boot is available. The stable and reliable operation provides a safe and stable system environment for product research and production.

Abundant resources

SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient.

A wide range of applications

RK3588 development board can be used in edge computing, cloud server, ARM PC, smart NVR, intelligent cockpit, smart video wall, AR/VR, high-end tablet, multi-lens camera, smart car and other fields. RK3588 development board can be used in edge computing, cloud server, ARM PC, smart NVR, intelligent cockpit, smart video wall, AR/VR,high-end tablet, multi-lens camera, smart car and other fields.
