Rockchip RK3588S Development Board

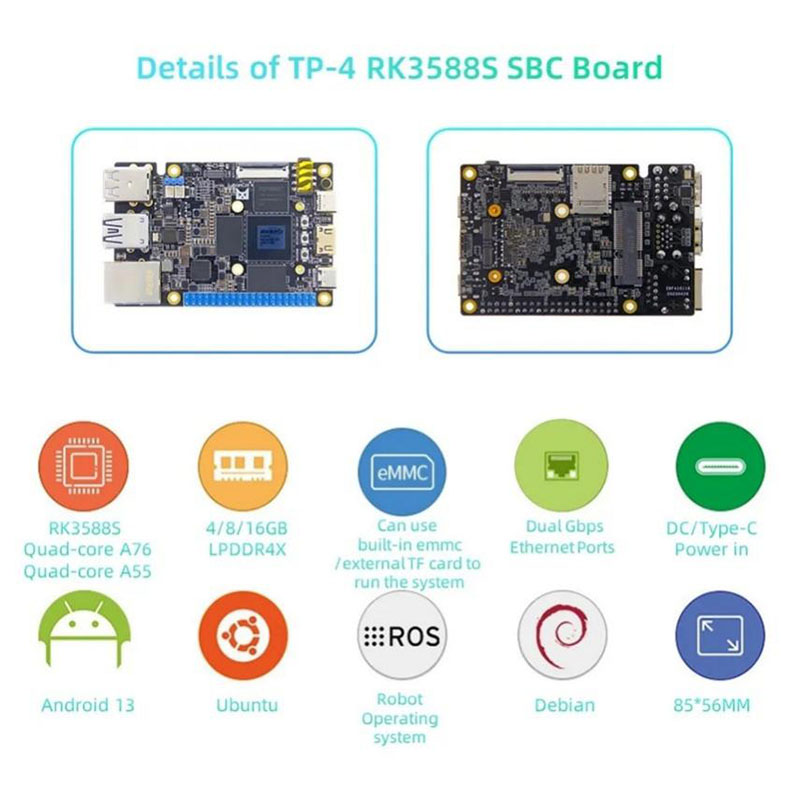

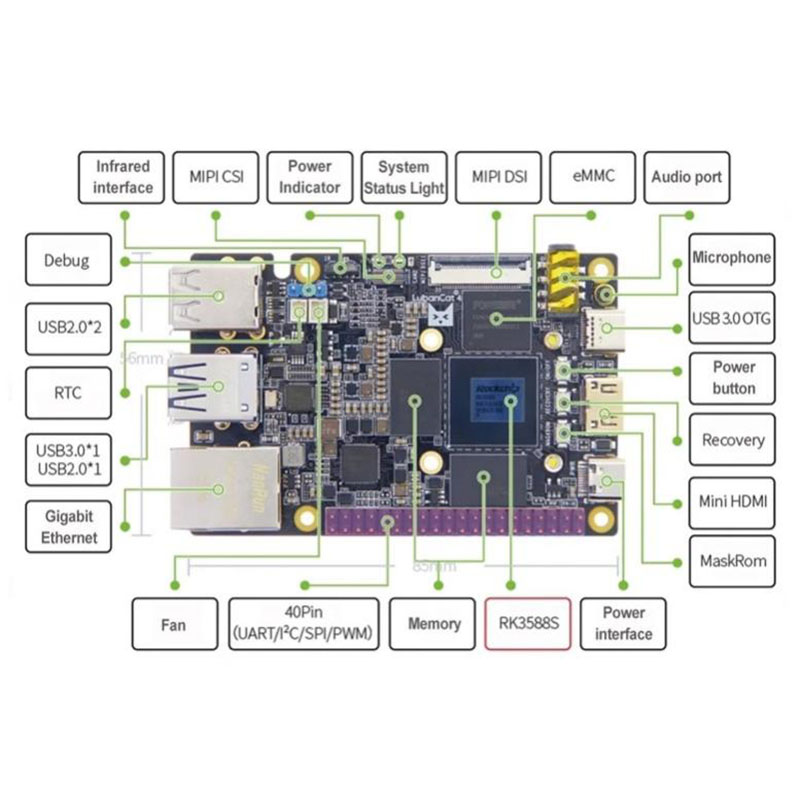

TP-RK3588S development board hardware configuration

Power interface

5V@4A DC input,Type-C interface (no data transmission capability)

Main chip

RK3588S(quad-core A76+ quad-core A55, Mali-G610, 6T computing power)

RAM

4/8/16GB,LPDDR4X, 2112MHz(other storage requirements can be customized)

Storage

0/32/64/128GB, eMMC (other storage requirements can be customized)

Ethernet

10/100/1000M Adaptive Ethernet

HDMI

Mini-HDMI 2.1 display port supports different multi-screen display with other screens

MIPI-DSI

MIPI screen interface *2, can plug MIPI screen, supports different multi-screen display with other screens

MIPI-CSI

2*15Pin BTB camera port *3 (front *1, back *2), can plug MIPI camera

USB2.0

Type-A Interface *3(HOST)

USB3.0

Type-A Indicates interface *1(HOST). Type-C interface *1(OTG), firmware burning interface, support DP protocol, can be displayed with other screens

PCle interface

Mini-PCle interface, can be used with full height or half height WIFI network card, 4G module or other Mini-PCle interface module

SIM+TF card holder

Can insert SIM card and Micro SD(TF) card at the same time, support TF card boot system, up to 512GB,SIM card function required

40Pin interface

Compatible with Raspberry PI 40Pin interface, support PWM, GPIO, IPC, SPI, UART functions

Debug serial port

Default parameter 1500000-8-N-1

Audio

MIC IN*1, capacitor head; Headphone output + microphone input 2 in 1 interface *1

Keys

Power button; MaskRom button; Recovery key
