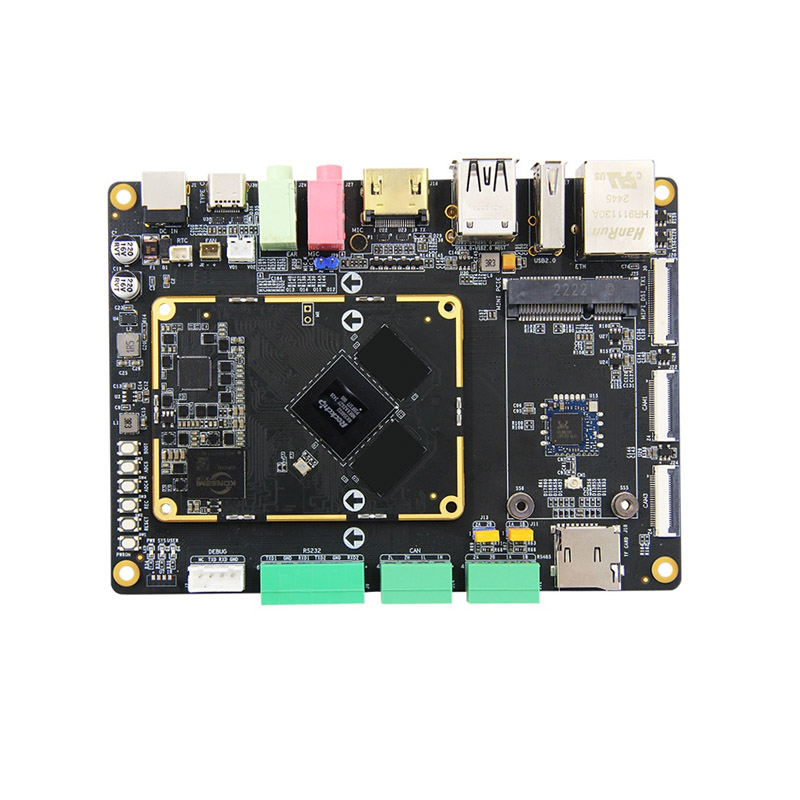

RK3588S Single Board Computer

RK3588S SBC (TP-4 BTB) Introduction

As the professional manufacturer, Thinkcore Technology would like to provide you high quality RK3588S single board computer, which is applicable to edge computing, artificial intelligence, cloud computing, virtual/augmented reality, smart security, smart medical care, self-service terminals, smart retail and other scenarios

Compared to the Raspberry Pi 5, our board has greater computing power and more interfaces, making it more suitable for developing industrial-grade products.

What is RK3588S SBC (TP-4 BTB)?

1. The TP-4.BTB ( Board -to board) is a high-performance single-board computer and embedded motherboard suitable for edge AI, IoT gateway, digital signage, robotics controllers, and other scenarios, including display, control, network transmission, file storage, and edge computing.

2. RK3588S single board computer uses the Rockchip RK3588S2 as its core chip, utilizing an advanced 8nm process technology with a maximum clock speed of 2.4GHz. It integrates an octa-core processor (quad-core 64-bit Cortex-A76 and quad-core 64-bit Cortex-A55) and an ARM Mali-G610 MC4 GPU, supporting 8K video encoding and decoding and 8K display output, superior image processing capabilities, and support for multiple camera inputs and multi-screen displays. The built-in independent NPU boasts a computing power of up to 6TOPS, empowering a wide range of AI scenarios.

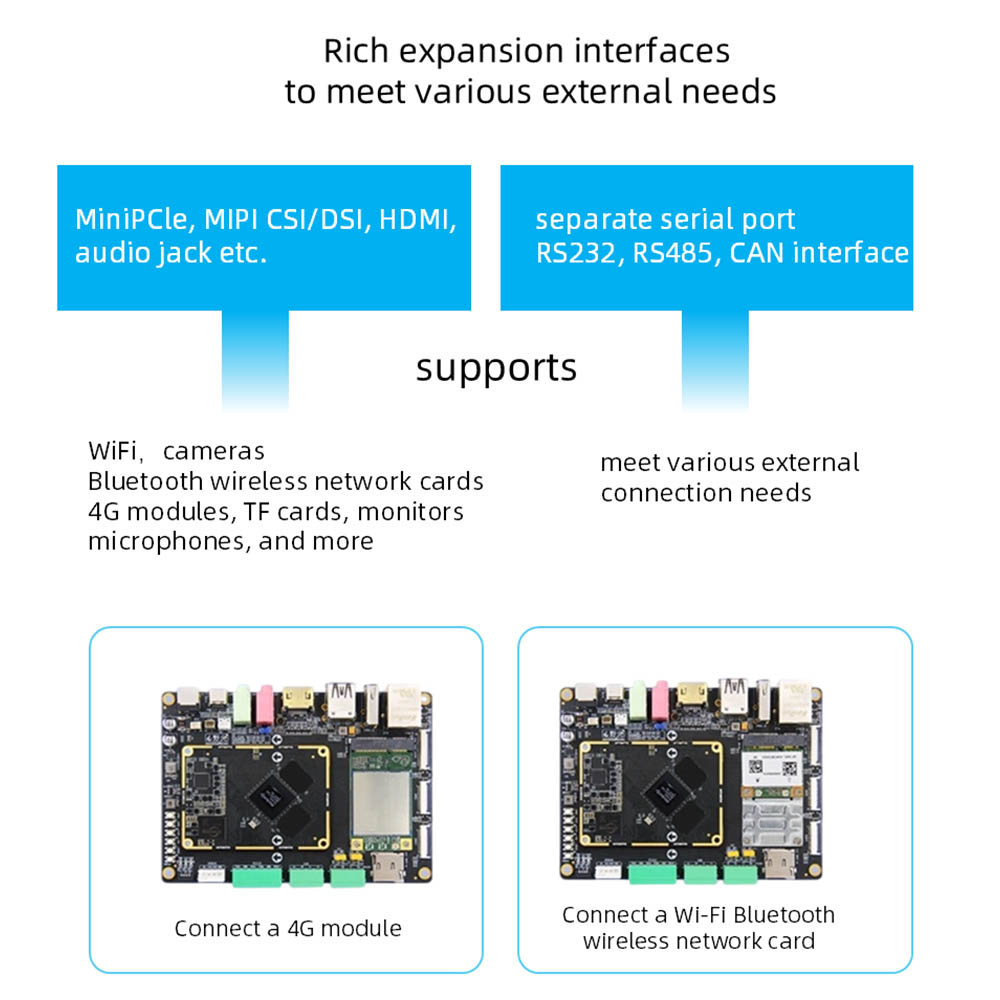

3. A variety of memory and storage combinations are available, and the onboard hardware configuration is balanced for a wide range of applications. 4. Highly integrated, it boasts a rich array of expansion interfaces, including Gigabit Ethernet, USB, MiniPCle, HDMI, 5 MIPI DSI and MIPI CSI interfaces, CAN, RS485, and RS232. These interfaces fully utilize the processor's performance, further expanding the board's application scenarios.

6. Officially supports mainstream Android, Debian, and Ubuntu operating system images, making it suitable for a variety of application environments.

7. Completely open source, it offers official tutorials, a complete SDK driver development package, design schematics, and other resources, making it easy to get started.

RK3588S SBC Features

● 6TOPS NPU

● 8K codec

● Quad-screen display

● Rich interfaces

● Strong industrial-grade applicability. Suitable for edge computing, artificial intelligence, smart healthcare, self-service terminals, smart retail, and other scenarios.

● Free RK3588S Android SDK

● Custom RK3588S solution available

Hardware Parameters

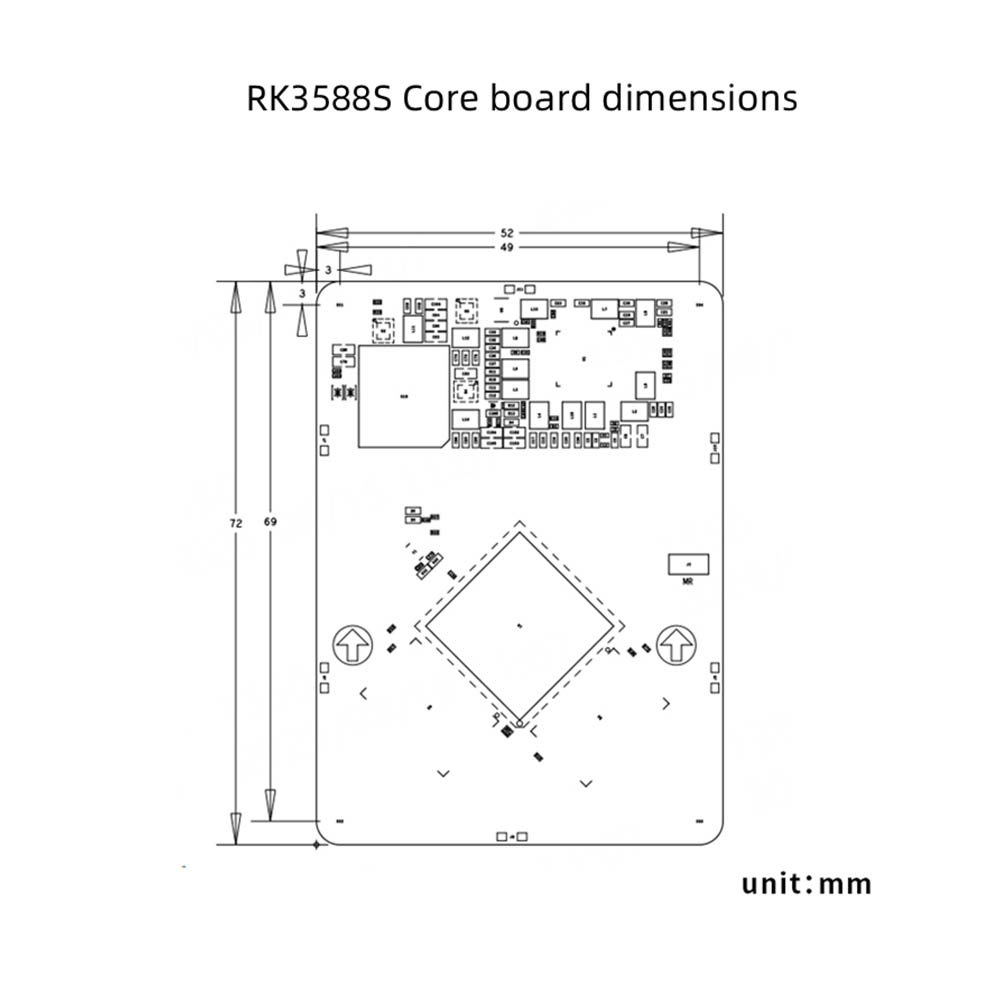

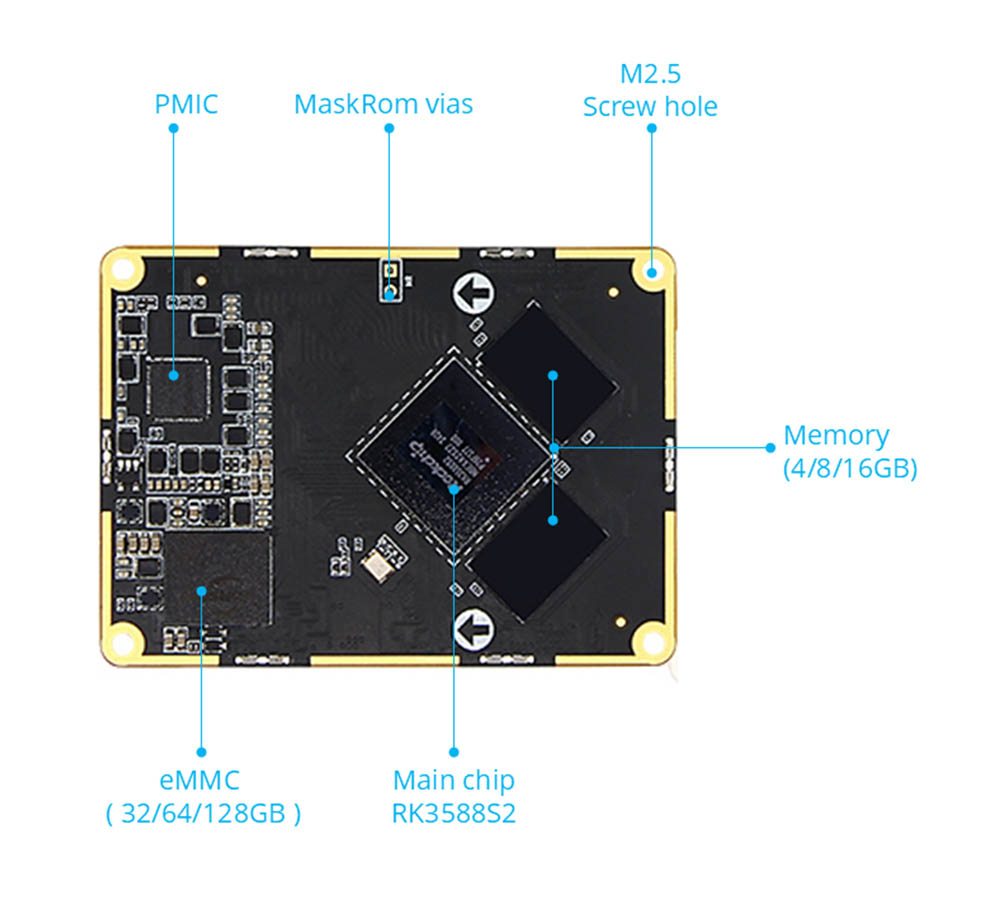

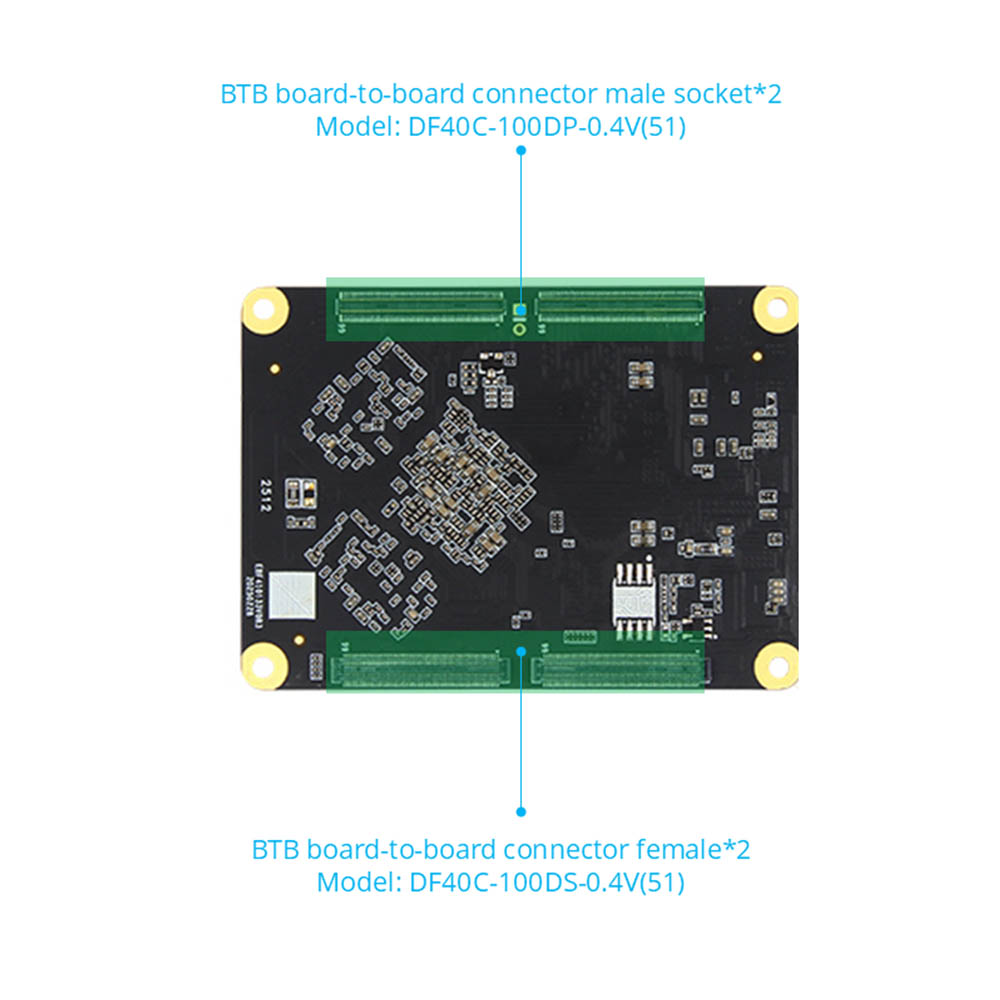

1.RK3588S SBC (TP-4 BTB) Core board Parameters

Connectors: Male: DF40C-100DP-0.4V(51) Female: DF40C-100DS-0.4V(51)

Main chip: RK3588S2 (quad-core A76 + quad-core A55, Mali-G610, 6TOPS computing power)

IO: BTB leads to 400 pins, 0.5mm pitch, all I0 leads

Memory: 4/8/16GB, LPDDR4/4x

Storage: 32/64/128GB, eMMC

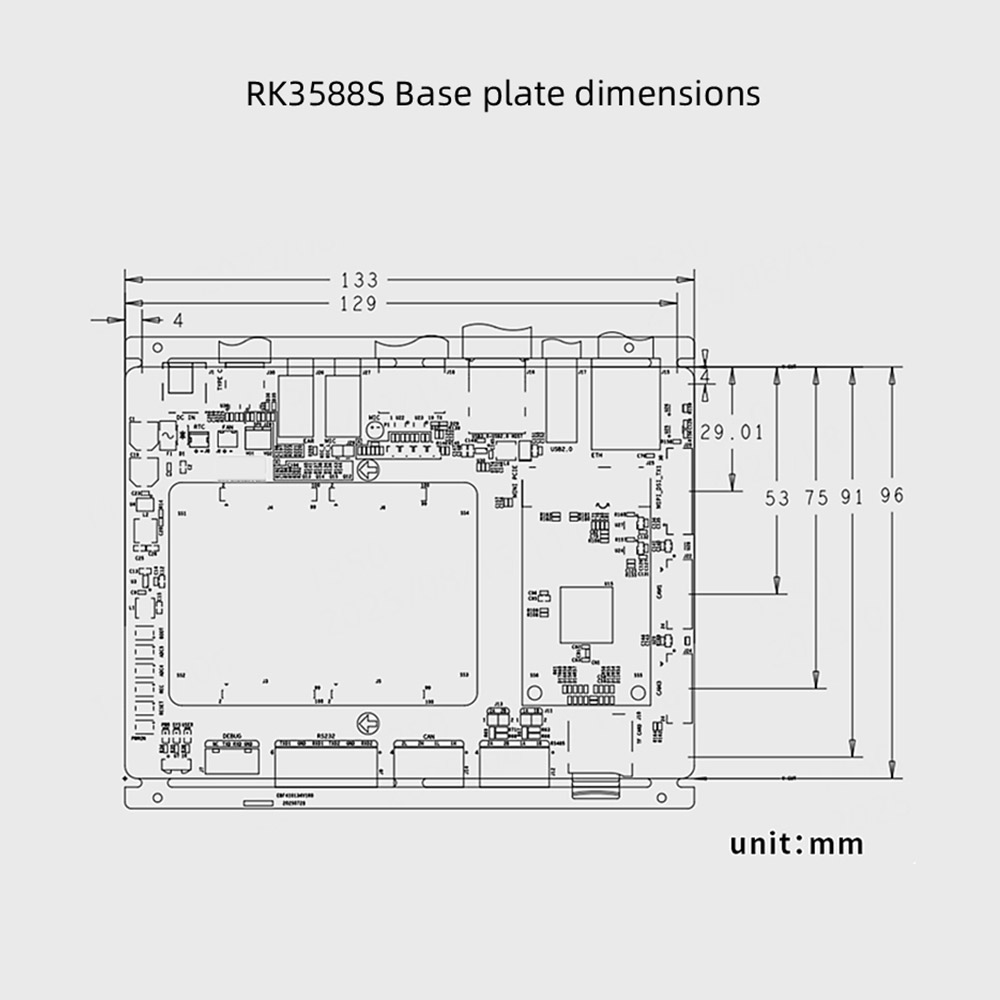

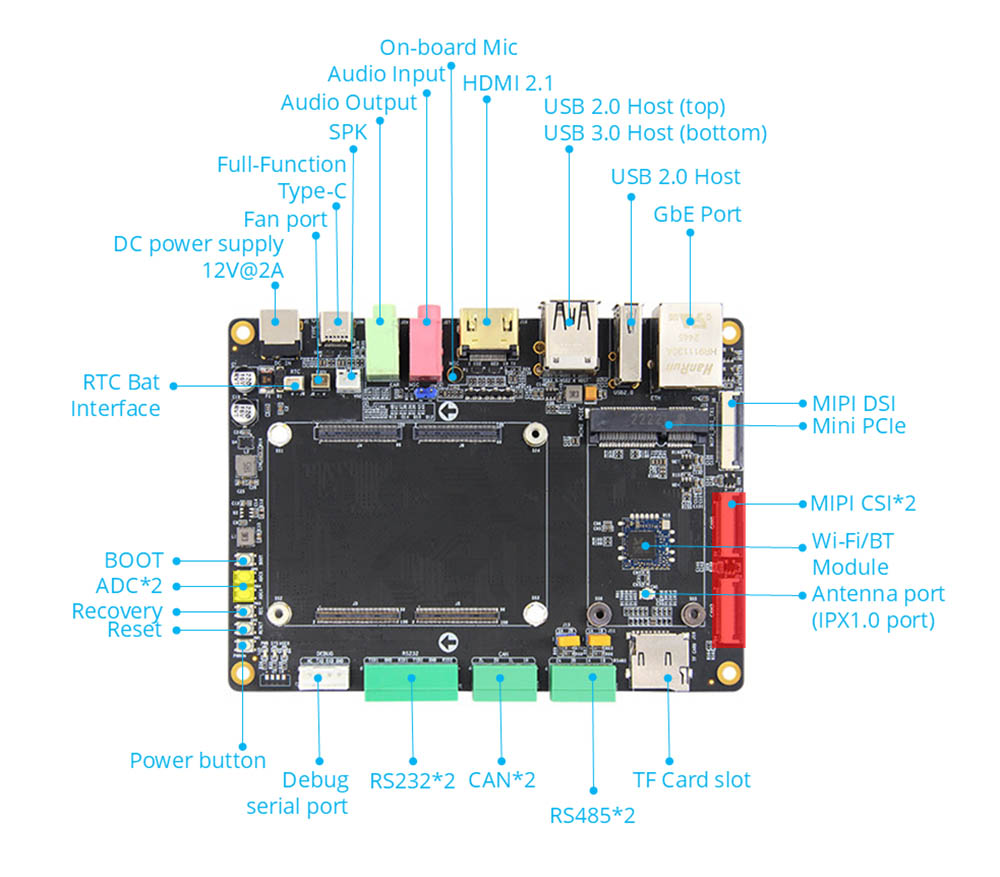

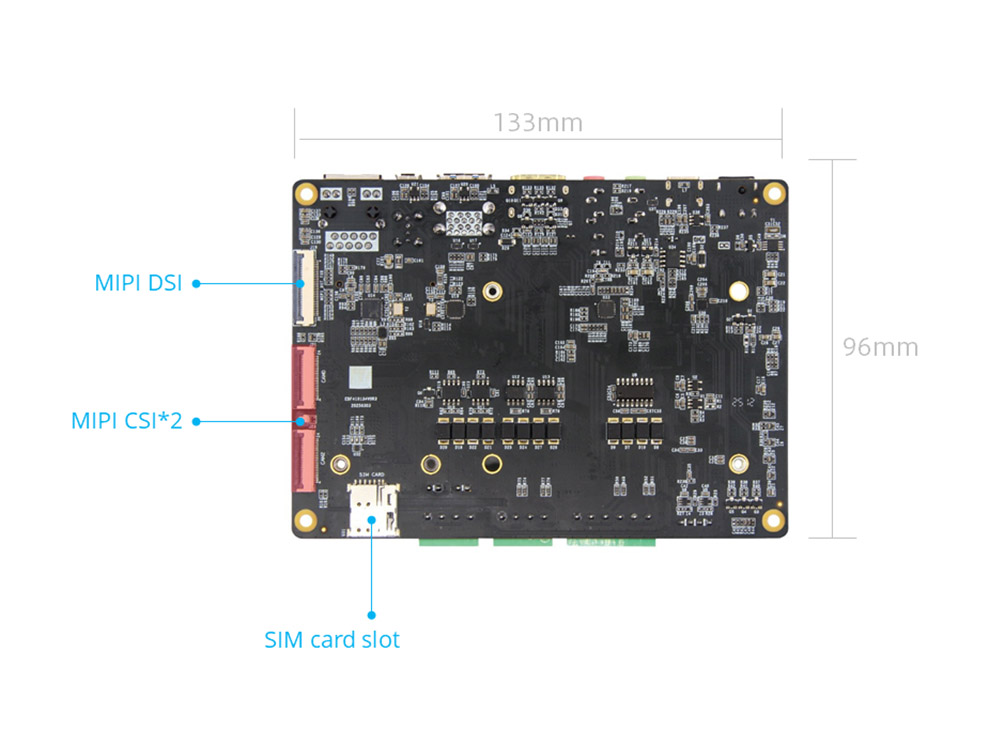

2.RK3588S SBC (TP-4 BTB) Baseboard Parameters

● Connector: Male: DF40C-100DP-0.4V(51) Female: DF40C-100DS-0.4V(51)

● Power interface: 12V@2A DC input, DC interface*1;

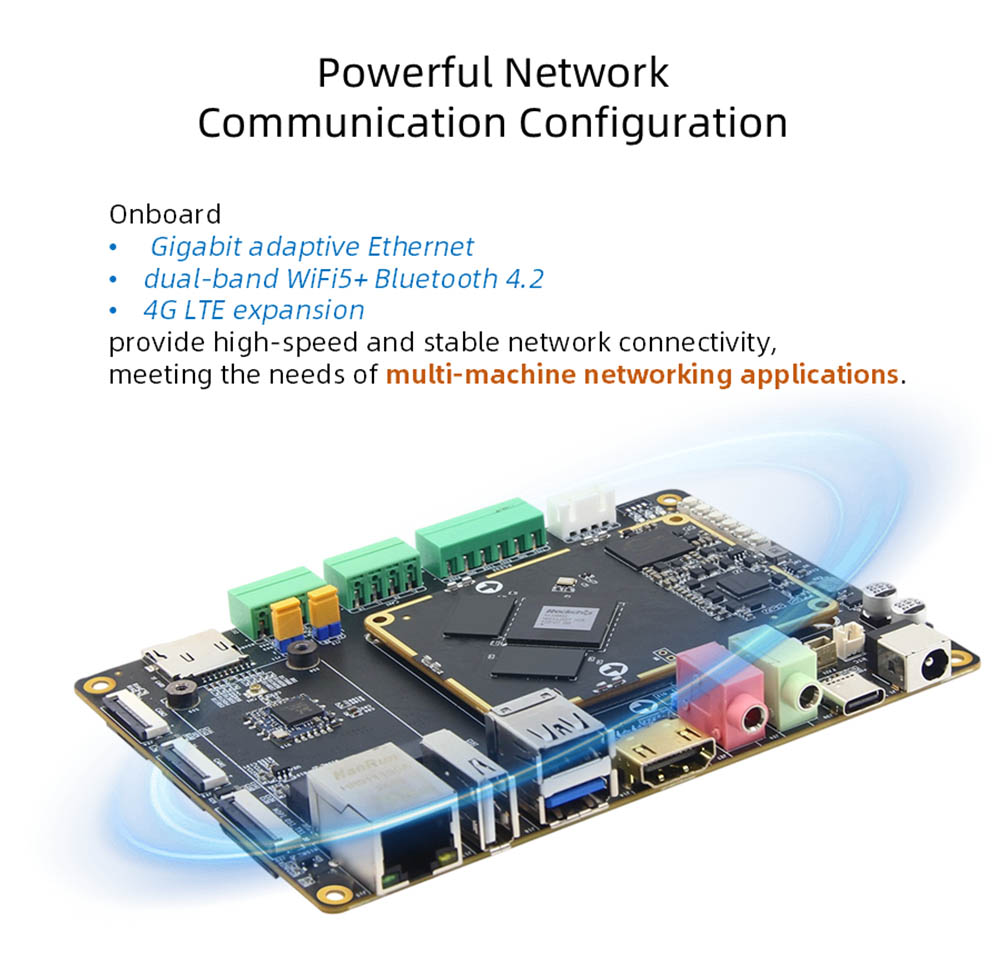

● Ethernet: Gigabit network port*1, supports 10/100/1000Mbps data transmission rate

● WiFi+Bluetooth: Onboard support 2.4G/5.8G dual-band WiFi5+BT4.2, model: TL8821CUB

● HDMI: HDMI2.1 output*1, supports multiple screens with other screens, maximum resolution 7680x4320@60Hz

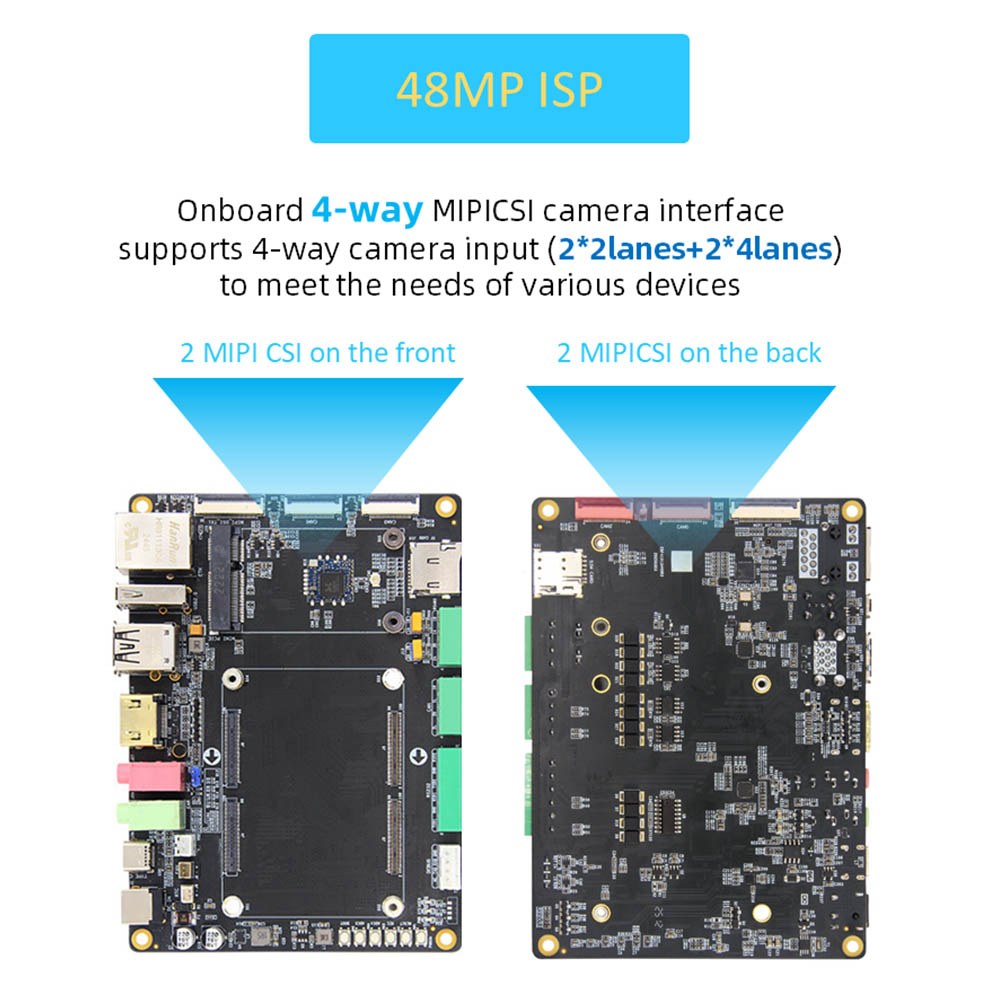

● MIPI-DSI: MIPI screen interface*2 (front*1, back*1), can be plugged in MIPI screen, supports multiple screens with other screens; single MIPI mode supports 3840x2160@60hz, for more parameter modes, please refer to the specification ● MIPI-CSI: 24Pin Four FPC camera ports (front and back), compatible with MIPI cameras.

● USB 2.0: Two USB-HOST Type-A ports

● USB 3.0: One USB-HOST Type-A port; One USB-OTG Type-C port, for firmware flashing, supports DP1.4.

● PCle port: One Mini-PCle port, compatible with full-height or half-height Wi-Fi cards, 4G modules, 5G modules, or other Mini-PCle modules.

● TF card slot: One Micro SD (TF) card slot, supports booting the system from a TF card, up to 512GB.

● SIM card slot: One SIM card slot; SIM card functionality requires a 4G or 5G module.

● CAN: Two CAN ports.

● Serial ports: One debug port (UART2), default parameters 1500000-8-N-1; two RS232 ports (UART0 & UART9); two RS485 ports (UART4 & UART7).

● Audio: Audio output: 1 3.5mm audio jack (green); Audio input: 1 3.5mm audio jack (red); SPK speaker jack (supports 3W speakers); Onboard MIC (1)

● Buttons: 1 power button; 1 reset button; 1 recovery button; 2 ADC buttons; 1 BOOT button

● LEDs: 1 power indicator; 1 system indicator; 1 user indicator

● RTC: 1 RTC power jack

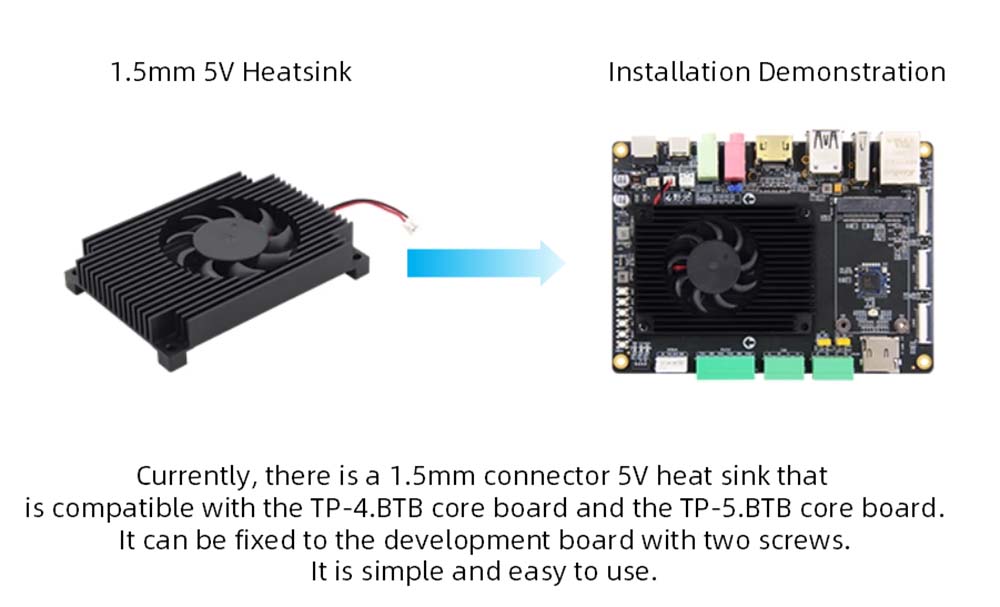

● Fan port: Supports 5V fan for cooling

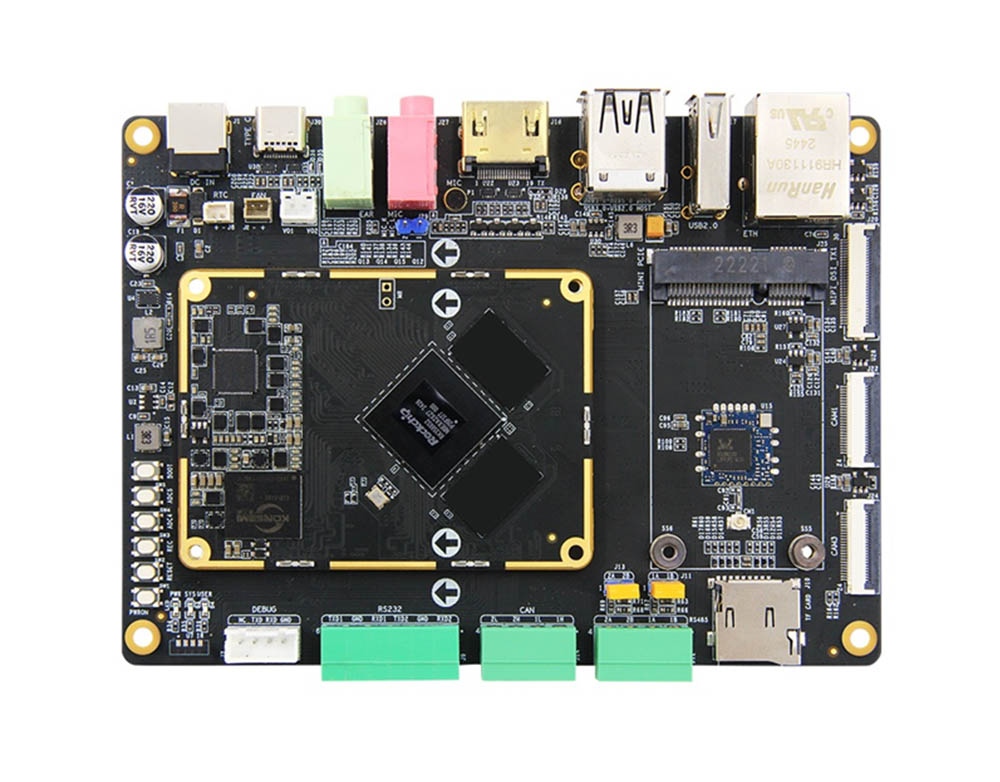

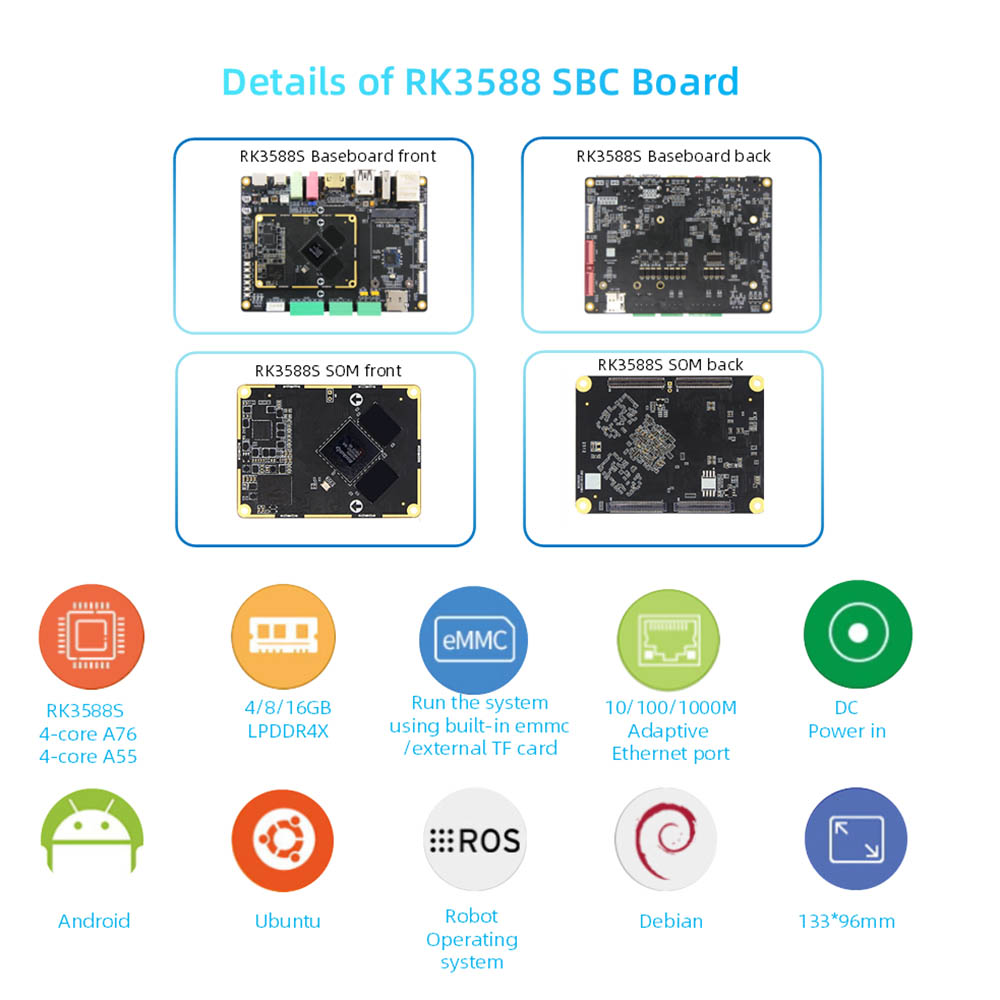

Board Details
