Rockchip PX30 Quad-Core 64-Bit Development Board
Thinkcore is a leading China Rockchip PX30 Quad-Core 64-Bit Development Board manufacturer. TC-PX30 development board is a supporting functional board based on Rockchip PX30 core board. On its periphery it has network port, USB serial port, LVDS and other interfaces. With perfect software support, it's suitable for enterprises to carry out secondary development. It can reduce the threshold of enterprise research and development and shorten the cycle of product development.
Send Inquiry
Product Description
Thinkcore is a leading China Rockchip PX30 Quad-Core 64-Bit Development Board manufacturer.
Product features:

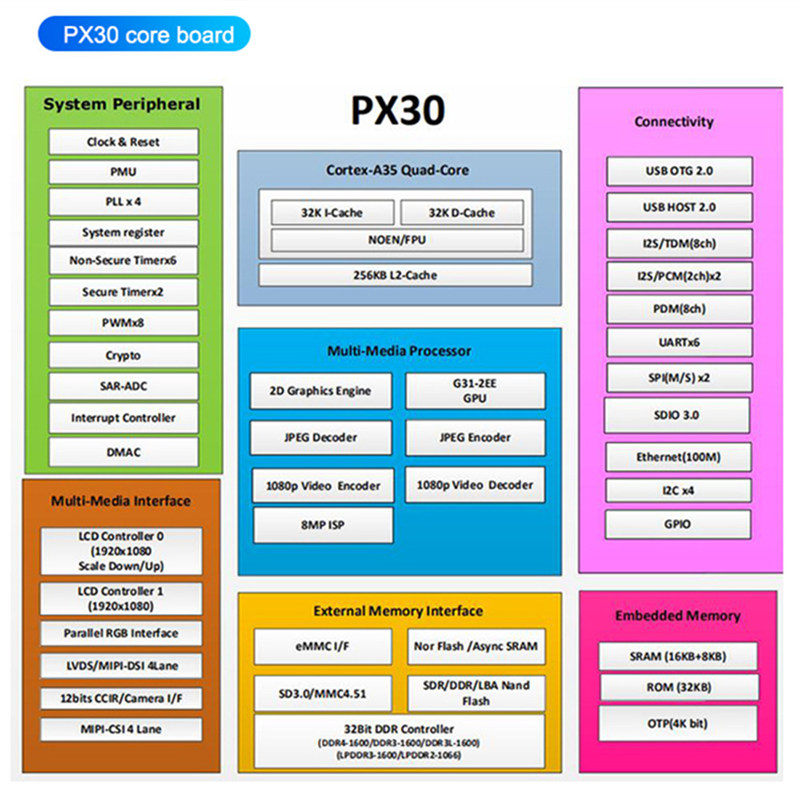

1. TC-PX30 system on module is based on Rockchip PX30 64 bit quad-core A35 processor. The frequency is up to 1.3GHz. Integrated with ARM Mali-G31 graphics processor, supports OpenGL ES3.2, Vulkan 1.0，OpenCL2.0, 1080p 60fts, H.264 and H.265 video decoding. It is designed with 1GB/2GB LPDDR3, 8GB/16GB/32GB eMMC.

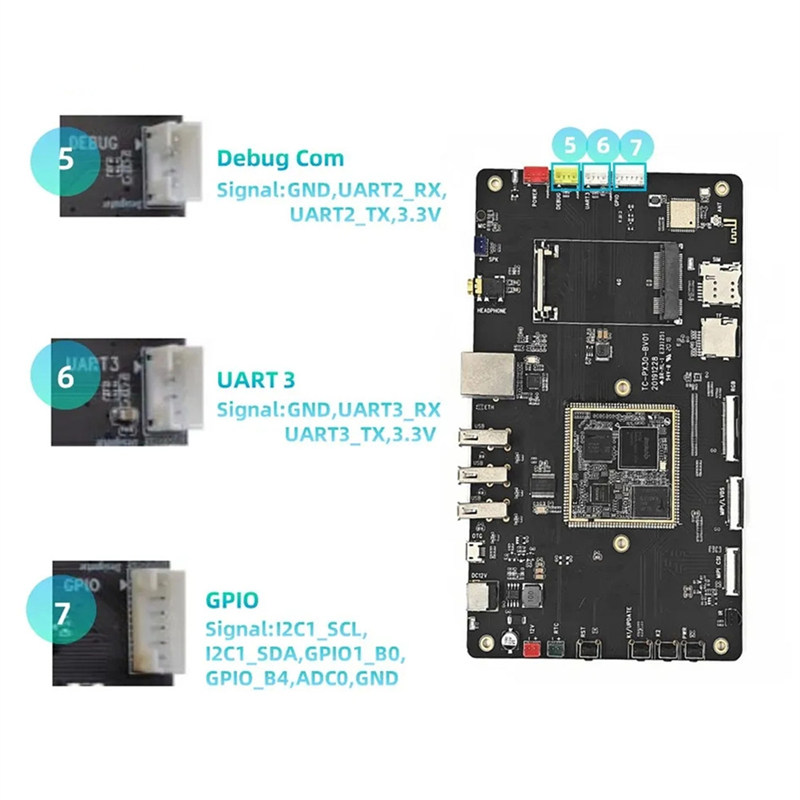

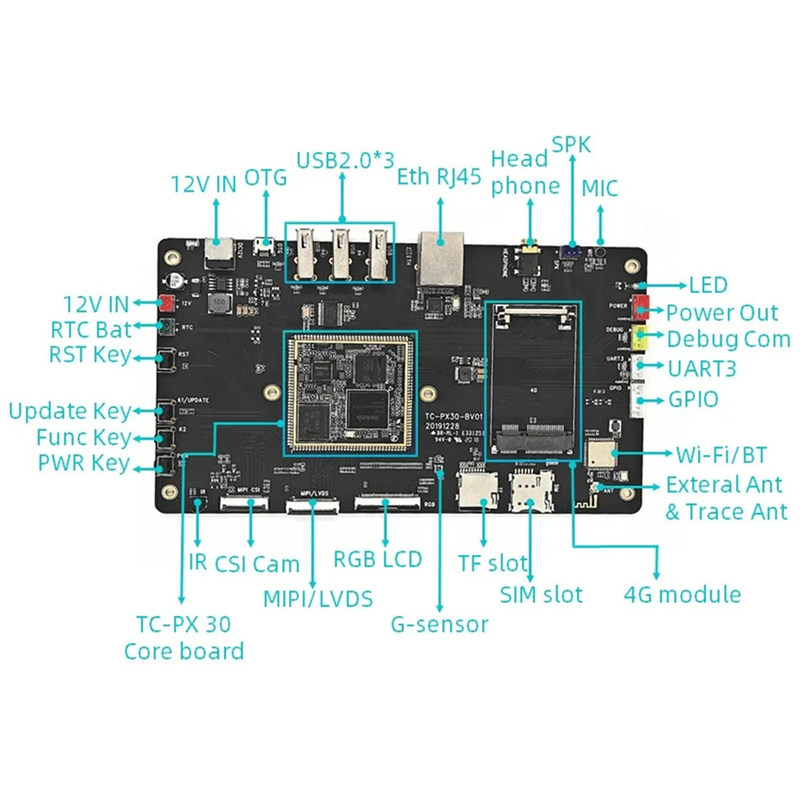

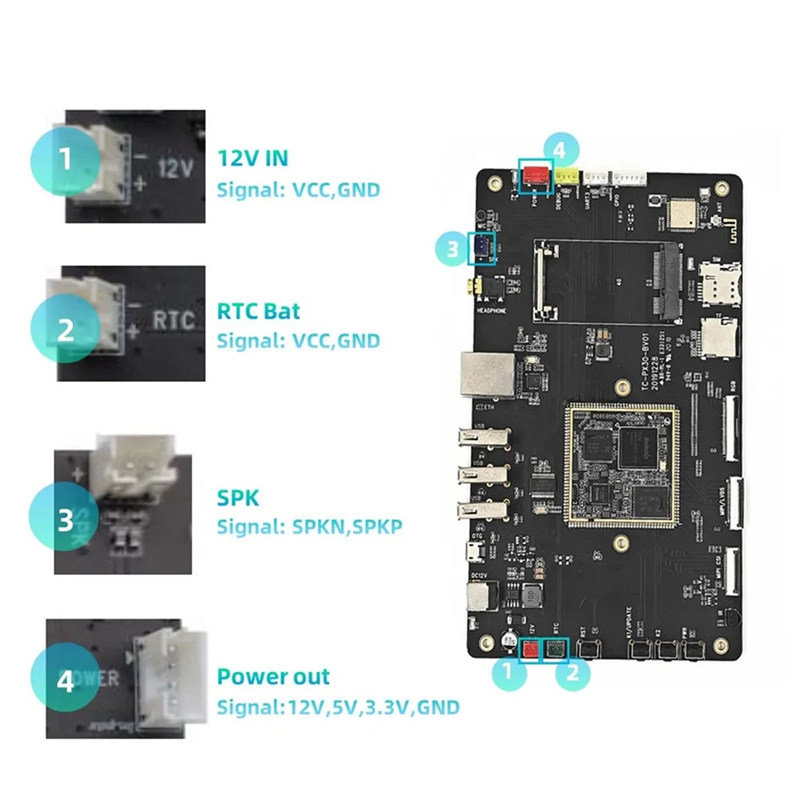

2. TC-PX30 carrier board Interfaces: 4G LTE, OTG, USB2.0, 100M Ethernet, WIFI, bluetooth, audio/video input/output , G-Sensor, RGB display, LVDS/MIPI display, MIPI camera, TF card slot, extended GPIO.
3. Open Source：Support for Android8,Linux+QT, Ubuntu operation system.
4. Application Fields:Industrial,home smart, railway transport, communications,medicaldevices,security,teching equipment,etc..
5. 10 years supply cycle can be customized,Complete development materials and techical support.
|
Product Parameters |
|
|
Appearance |
Stamp hole SOM + carrier board |
|
Size |
185.5mm*110.6mm |
|
Layer |
SOM 6-layer/carrier board 4-layer |
|
CPU |
Rockchip PX30,Quad core A351.3GHz |
|
RAM |
Default1GBLPDDR3,2GBoptional |
|
EMMC |
4GB/8GB/16GB/32GBemmcoptional，default8GB |
|
Display |
RGB, LVDS/MIPI |
|
Audio |
AC97/IIS, support record and play |
|
Ethernet |
100M |
|
USBHOST |
3 channel HOST2.0 |
|
USB OTG |
1 channel OTG2.0 |
|
UART |
2 channel uart, support flow control uart |
|
PWM |
1 channelPWM output |
|
IIC |
4 channelIIC output |
|
ADC |
1 channelADC |
|
Camera |
1 channelMIPI CSI |
