TC-PX30 Stamp Hole System on Module Brief

TC-PX30 Stamp Hole System on Module Brief

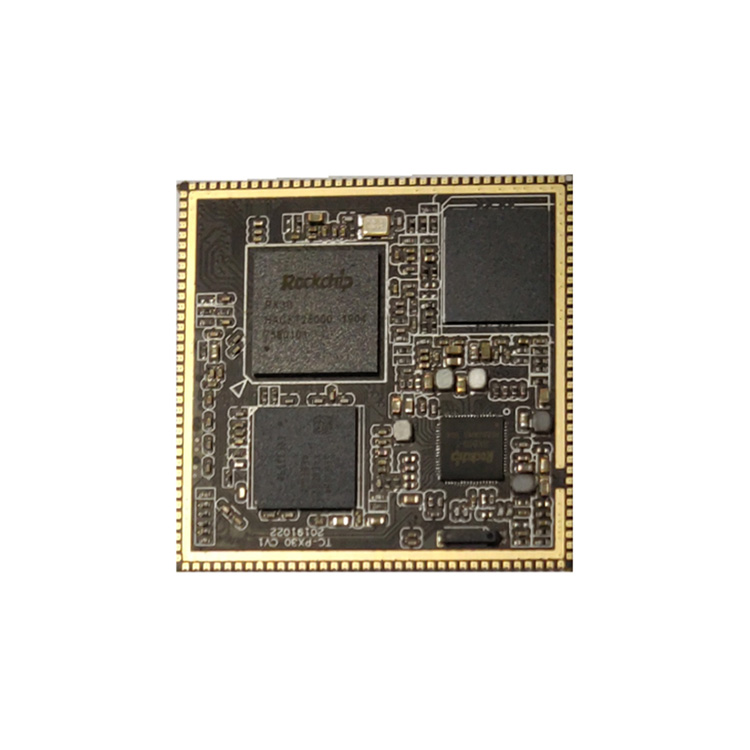

TC-PX30 SOM takes Rockchip PX30 ( cortex A35 quad core) CPU, 1.3GHz, mali-G31 graphics processor, and support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0 to carry out 1080p 60 fps H.264 and H.265 video hardware decoding.
Besides that, TC-PX30 SOM equip with 1GB/2GB LPDDR3, 8GB/16GB/32GB eMMC high-speed storage, and dependent power management system, and network expansion capability, and rich interfaces; It supports Android 8.1, Linux and Ubuntu OS.
And TC-PX30 SOM takes stamp hole designed, which is of strong scalability, more than 144PIN, and 1.3Ghz. Its PCB takes 6-layers immersion gold designed.

TC-PX30 SOM Features:

⚫ Size: 45mm*45mm
⚫ RK809 PMU insure it works stably and reliably
⚫ Supports kinds of eMMC, default 8GB eMMC
⚫ Single channel LPDDR3, default 1GB LPDDR3, and 2GB optional
⚫ Android 8.1, Linux, and Ubuntu OS
⚫ 144 PIN, included CPU all PIN
⚫ Support double display show

TC-PX30 is suitable for AIOT equipment, vehicle control, game equipment, commercial display equipment, medical equipment, vending machines, industrial computers, etc.
