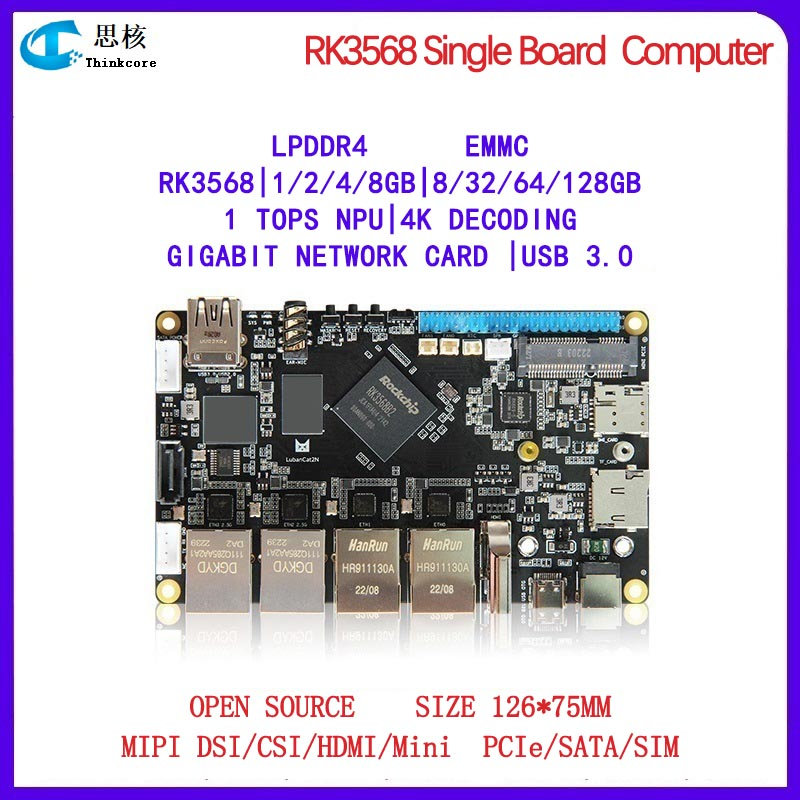

Rockchip RK3568 Atom Embedded Board

Find a huge selection of Rockchip RK3568 Atom Embedded Board from China at Thinkcore.

Using Rockchip RK3568 as the main chip,22nm process technology.2.0GHz main frequency, integrated quad-core 64-bit

Cortex-A55 processor, Mali G522EE graphics processor and independent NPU;

With 1TOPS computing power, It can be used for lightweight artificial intelligence applications;

Support dual-screen different display. support maximum simultaneous output of 4K60 frame+ 2K60 frame image, support

HDR, support 4K60 frame decoding video output and 1080P encoding;

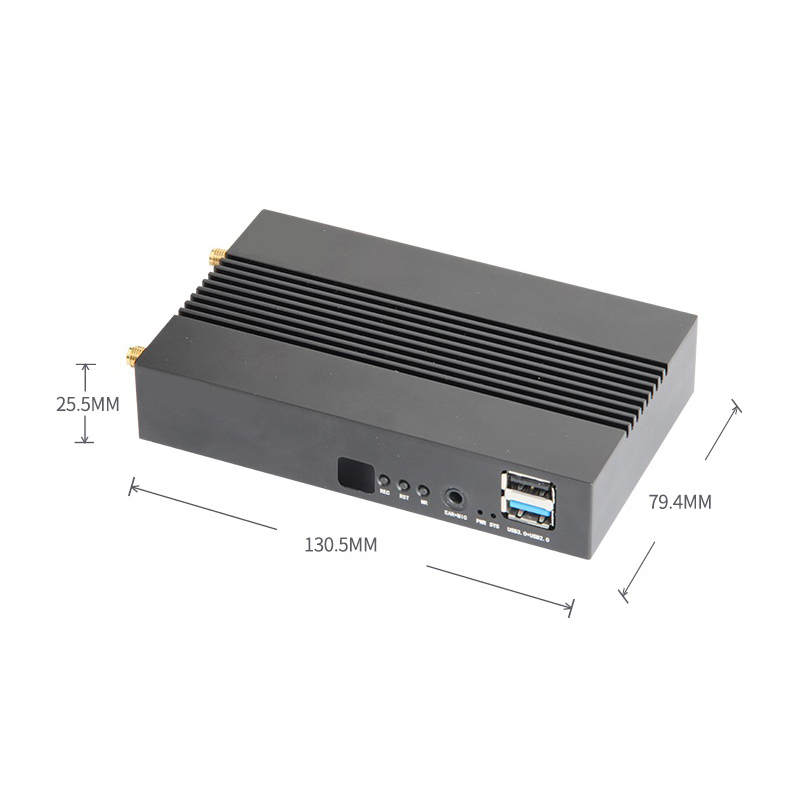

The board provides a variety of memory and storage configuration options, only 126°7 5 mm in size, low power consumption, high performance, and can easily run Linux or Android systems;

Onboard a large number of commonly used peripherals, integrated dual Gigabit Ethernet ports, dual 2.5G Ethernet ports, HDMI, Mini PCle, SATA,USB3.0,USB2.0, MIPI screen interface and MIPI camera interface and other peripherals,

reserved 40Pin unused pins, compatible with Raspberry Interface;

Provide Android, Debian, Ubuntu operating system images, which can be applied to many different application environments

Provide a complete SDK driver development kit, design schematic diagram and ether resources, which is convenient for users to use and secondary development.
